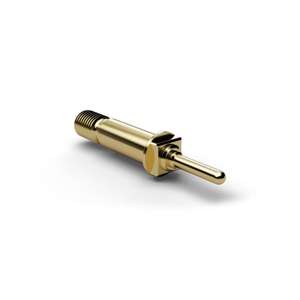

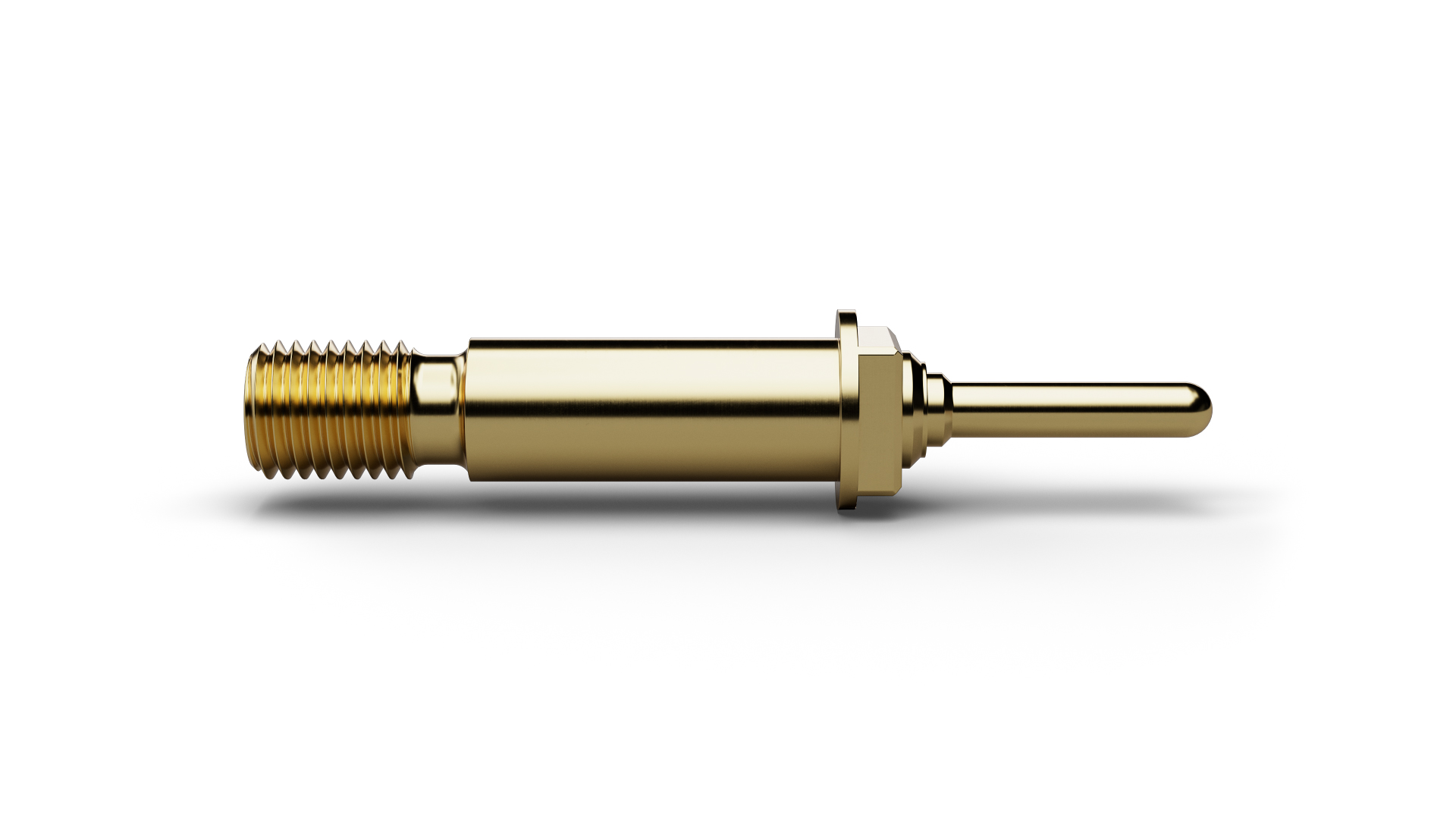

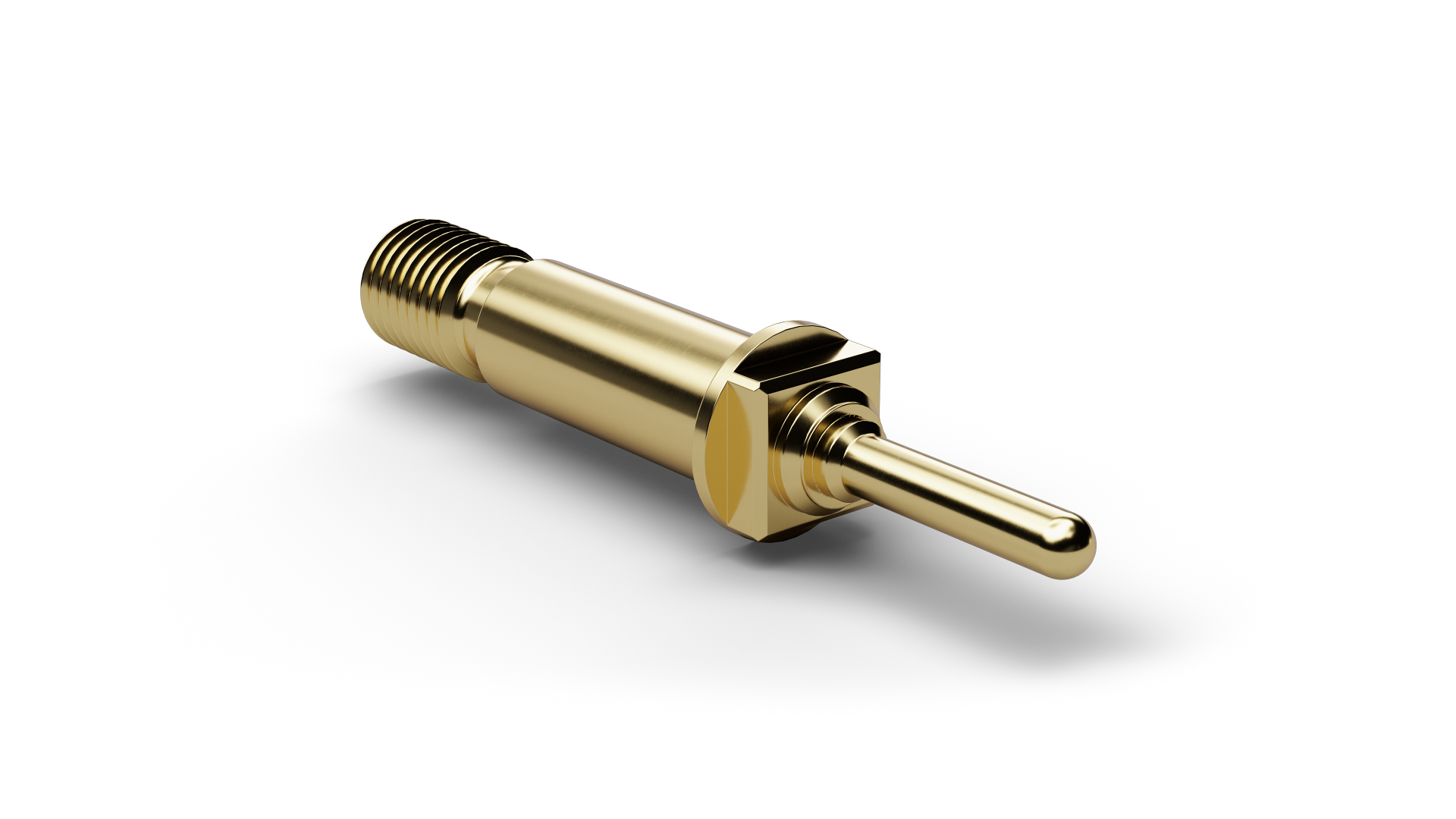

F72211B064G100 (item number 1007927) combines spring-loaded contacting with a secure threaded mounting concept. The threaded mounting of F72211B064G100 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F72211B064G100 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F72211B064G100 uses an M1.6 thread. On F72211B064G100, a pitch of 2.54 mm / 100 mil is combined with 100 cN spring force and 1.5 mm nominal travel. The electrical rating of F72211B064G100 combines 5 A continuous current with 25 mΩ typical contact resistance.
