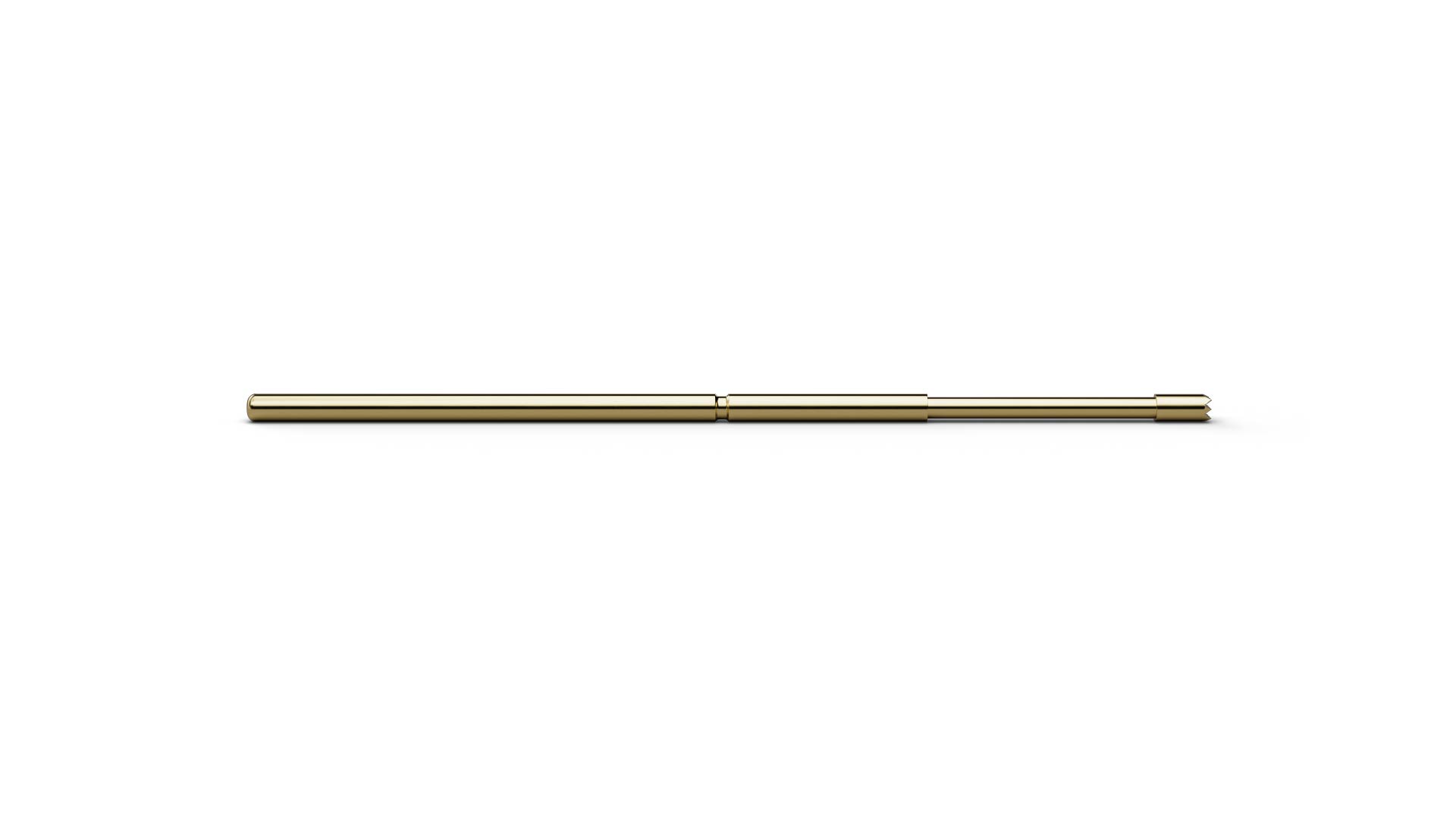

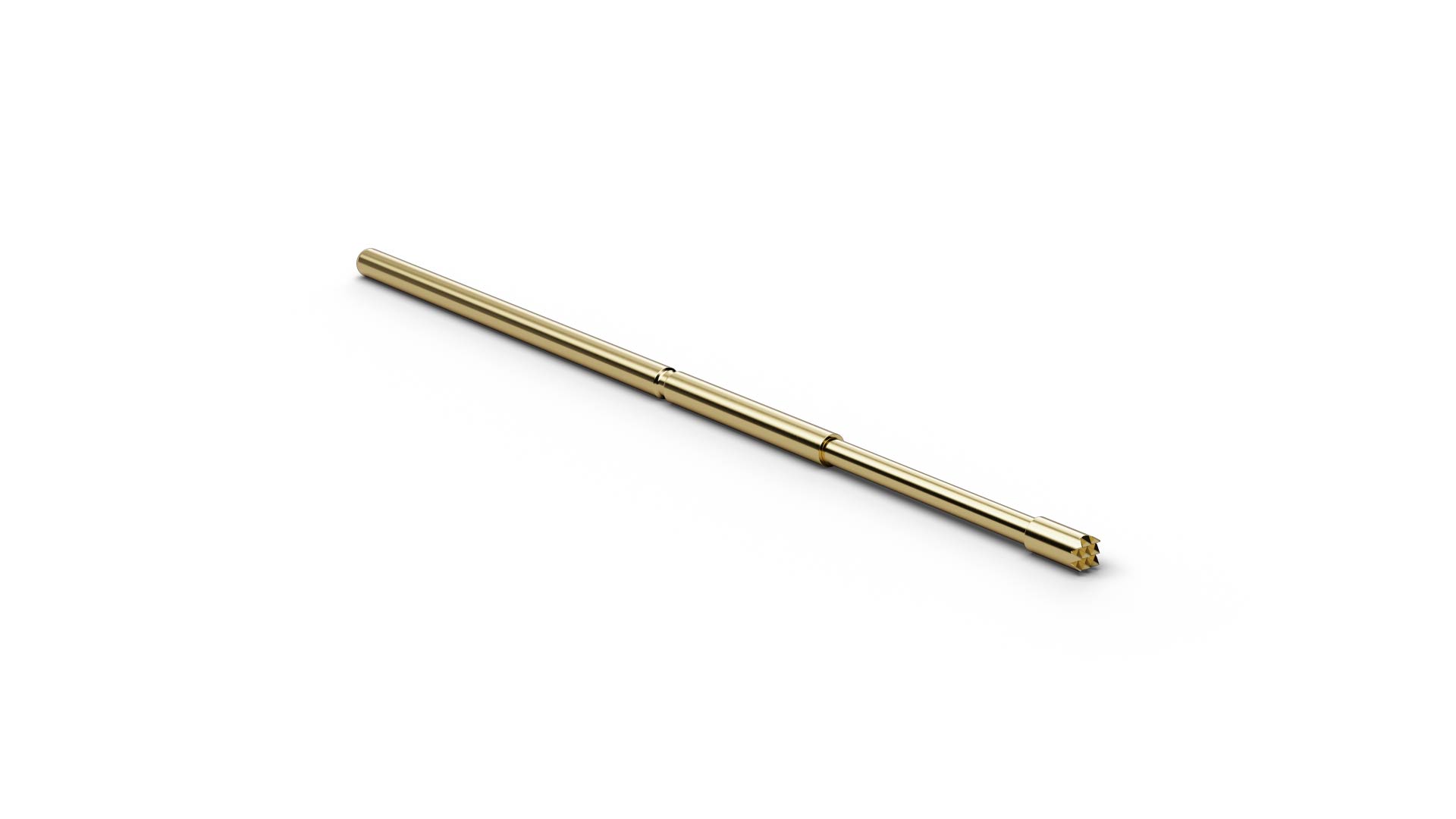

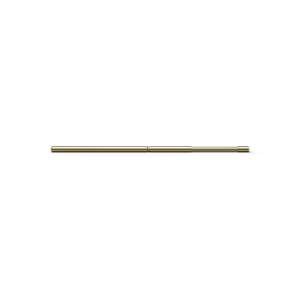

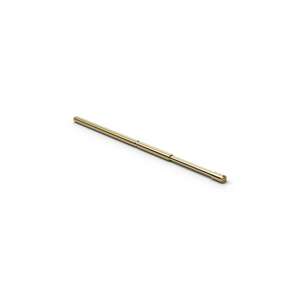

As a Basic Contact Probe, F70306B100G180L (item number 1006526) establishes a spring-loaded electrical connection to the test point. With tip style 06 (Serrated stepped), F70306B100G180L combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F70306B100G180L combines a pitch of 1.9 mm / 75 mil with tip style 06 (Serrated stepped) and a tip diameter of 1 mm. F70306B100G180L operates with 180 cN spring force and 4.3 mm nominal travel. The electrical rating of F70306B100G180L combines 4 A continuous current with 30 mΩ typical contact resistance. The plunger in F70306B100G180L is made of beryllium copper and is gold-plated.
