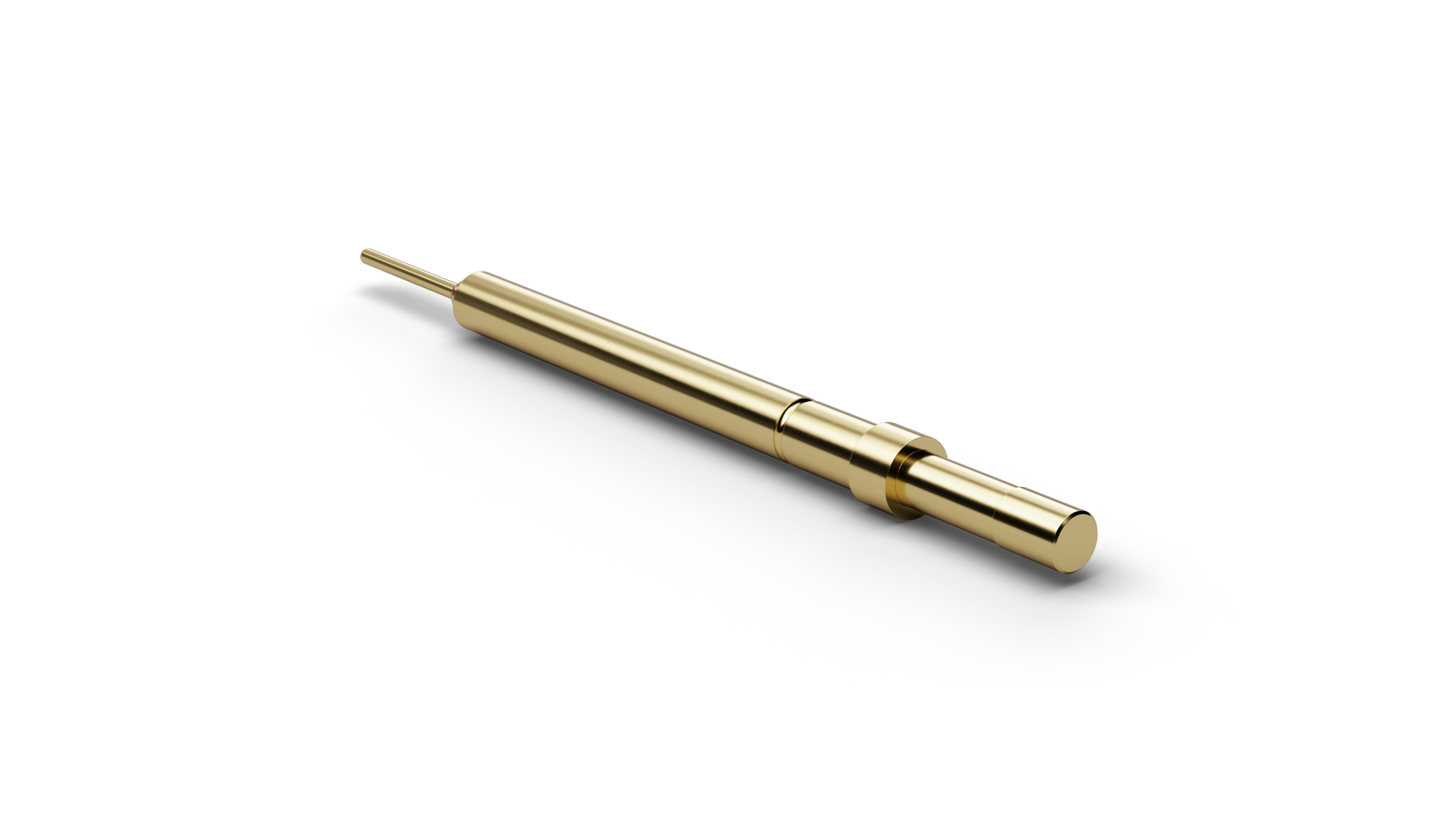

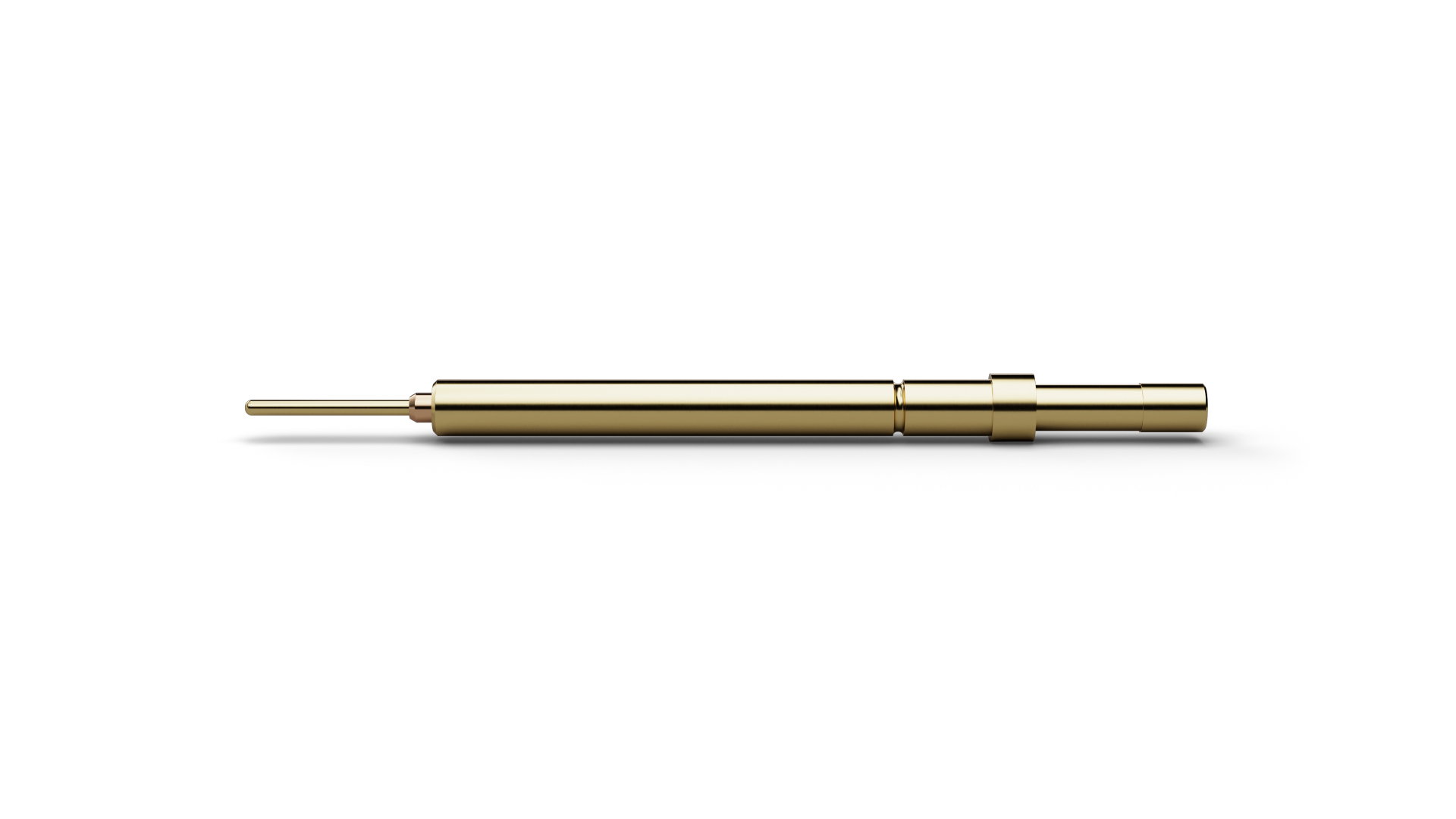

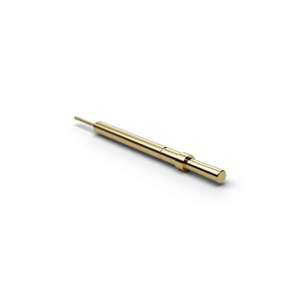

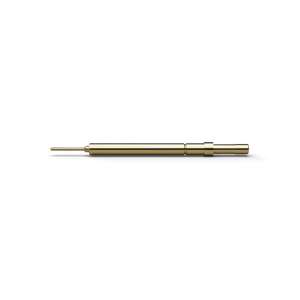

The Normally Open Switch Probe F88417B230G350SM (item number 1005453) combines spring-loaded contacting with a defined switching or sensing function. F88417B230G350SM combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F88417B230G350SM, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. F88417B230G350SM operates with 350 cN spring force and 4 mm nominal travel. The electrical rating of F88417B230G350SM combines 10 A continuous current with 50 mΩ typical contact resistance. F88417B230G350SM combines a pitch of 3.5 mm / 138 mil with tip style 17 (Flat stepped) and a tip diameter of 2.3 mm.
