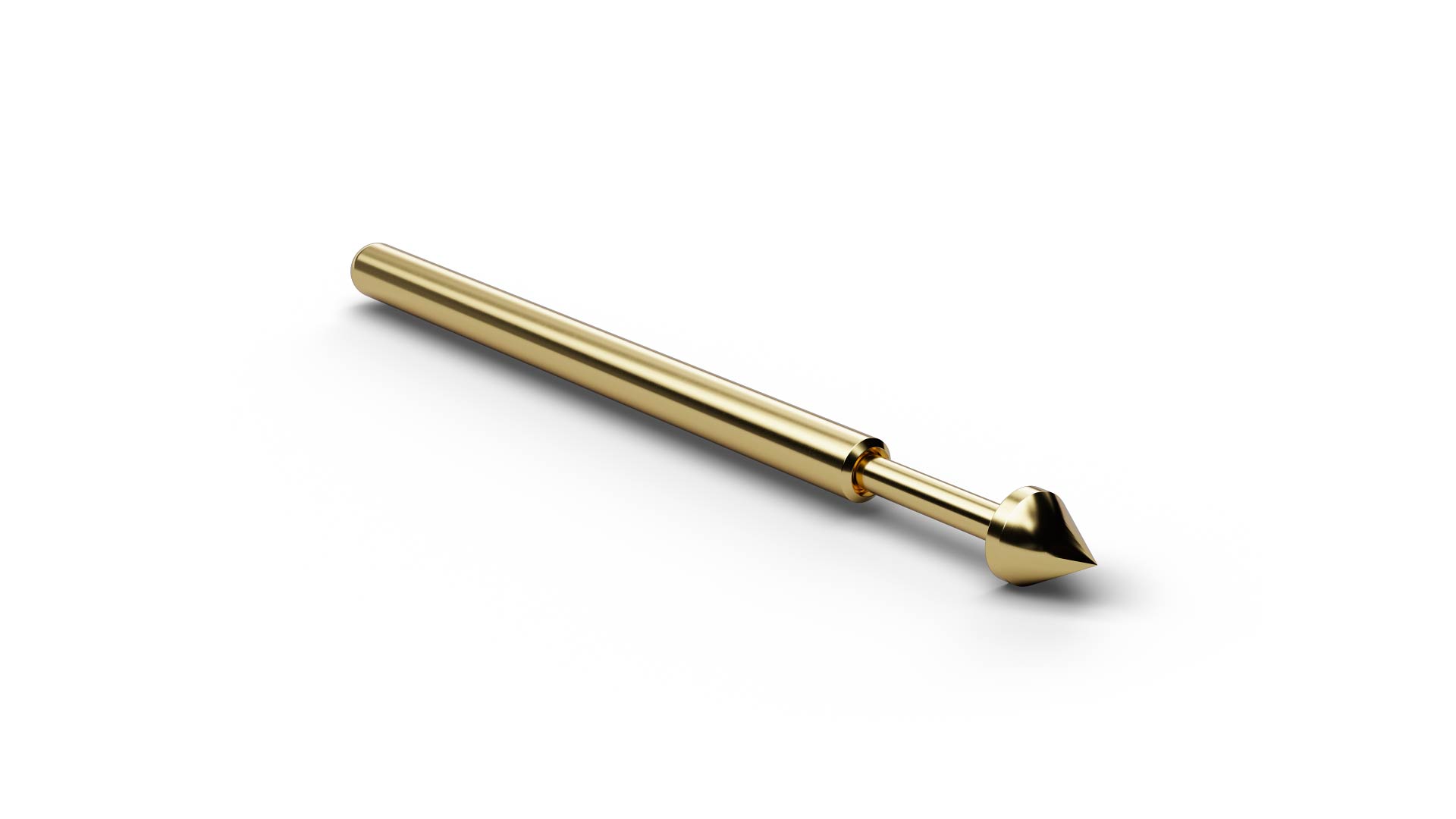

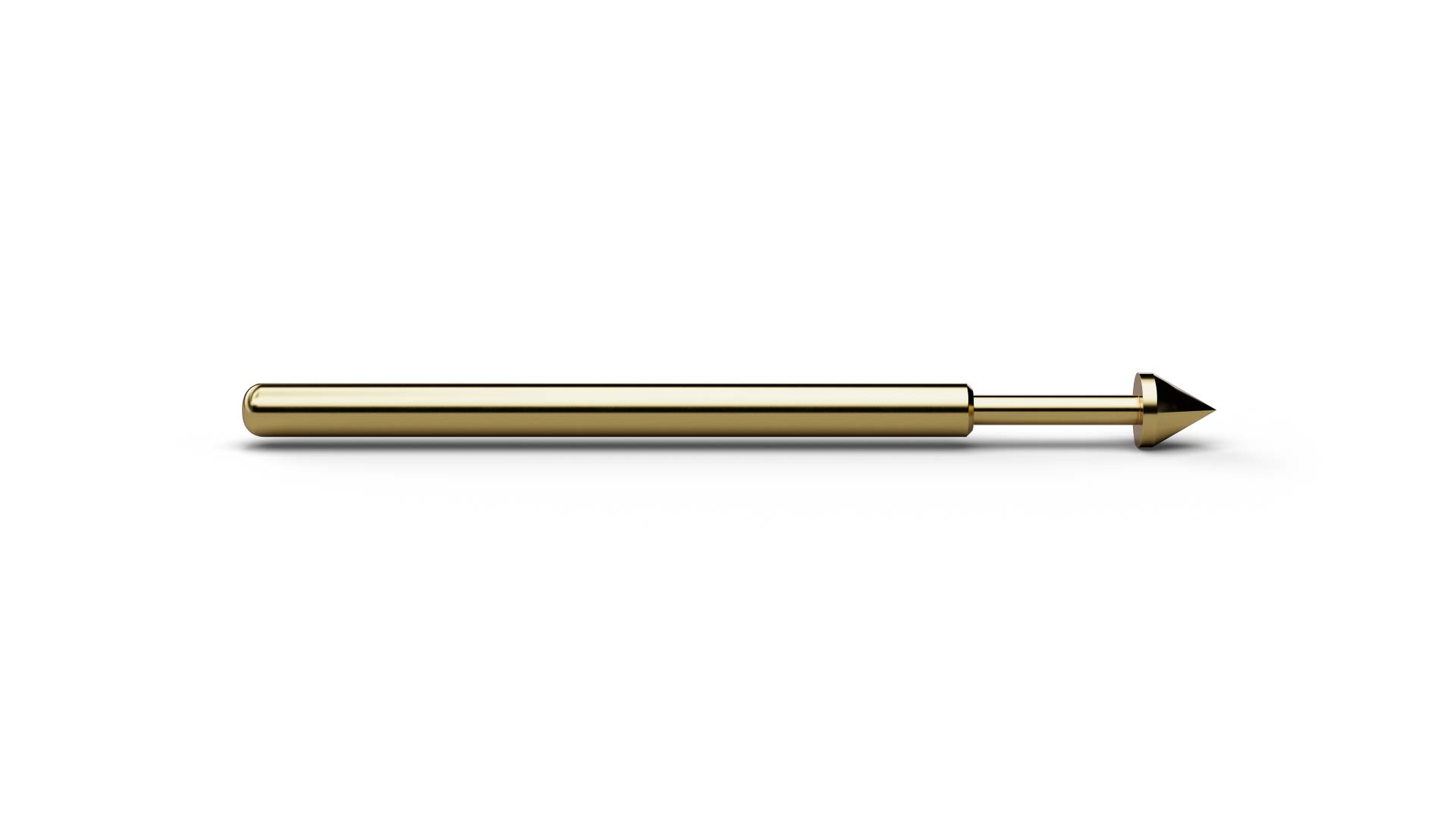

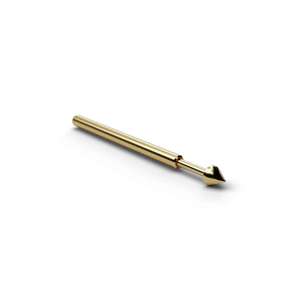

As a Basic Contact Probe, F56204B190G150 (item number 1003070) establishes a spring-loaded electrical connection to the test point. F56204B190G150 belongs to the basic probe range for ICT/FCT, where tip geometry, spring force and surface finish are matched to the target test point. The design combines a pitch of 2.54 mm / 100 mil with tip style 04 (Conical 60° stepped) and a tip diameter of 1.9 mm. For F56204B190G150, spring force is 150 cN at a nominal travel of 2.7 mm. F56204B190G150 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F56204B190G150 is made of beryllium copper and is gold-plated.
