技術データ
| 一般的な事項 | |
|---|---|
| タイプ/ファミリー | H320 |
| 寸法 | |
|---|---|
| 全長 (mm) | 12 |
| プレスリング径 (mm) | 2 |
| 外径 (mm) | 1.75 |
| カラー高さ (mm) | 0.3 |
| 材料および表面 | |
|---|---|
| 材料, コーティング | Bronze, Gold |
グラフィック
Beschreibung des Produkts

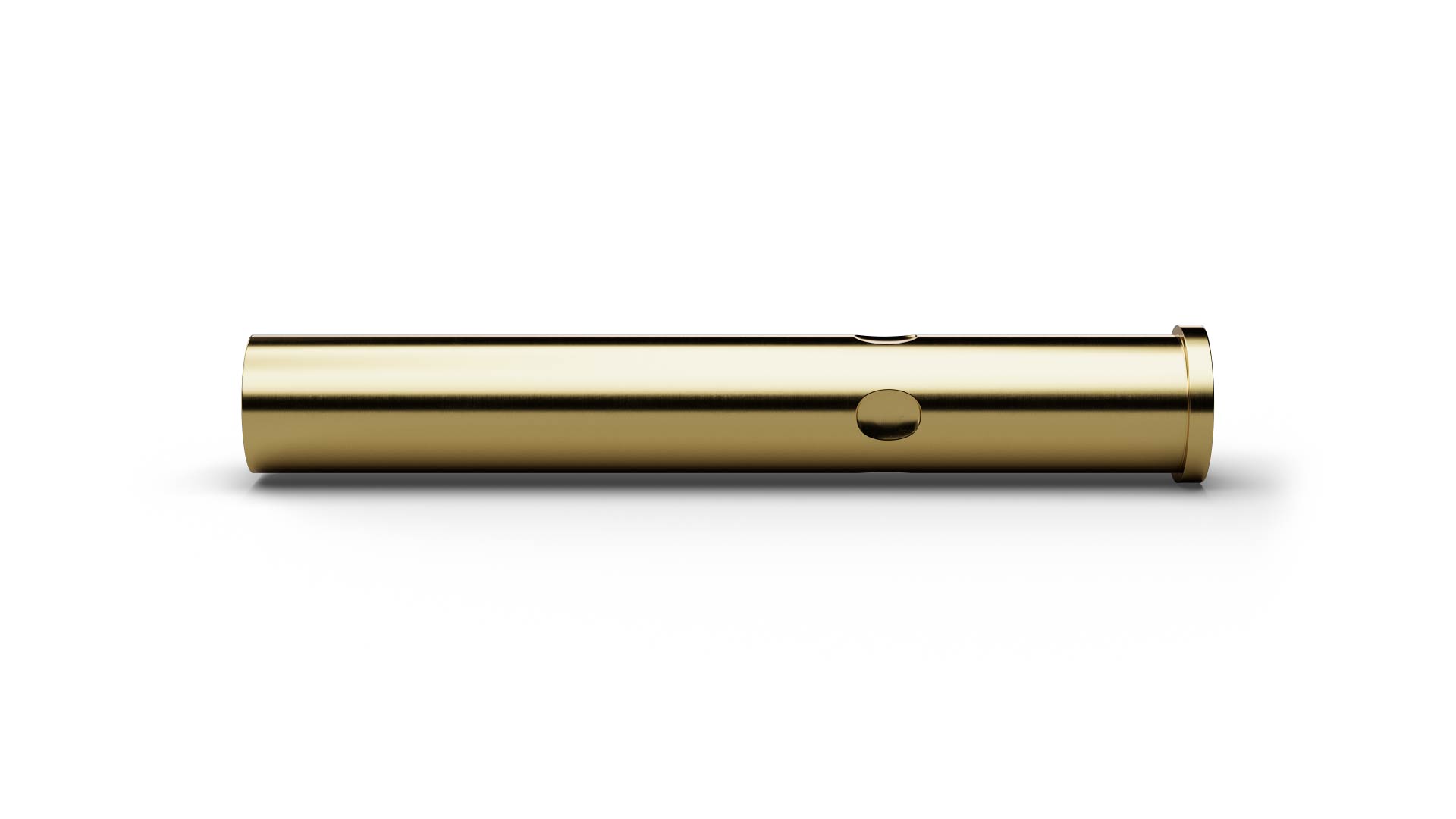

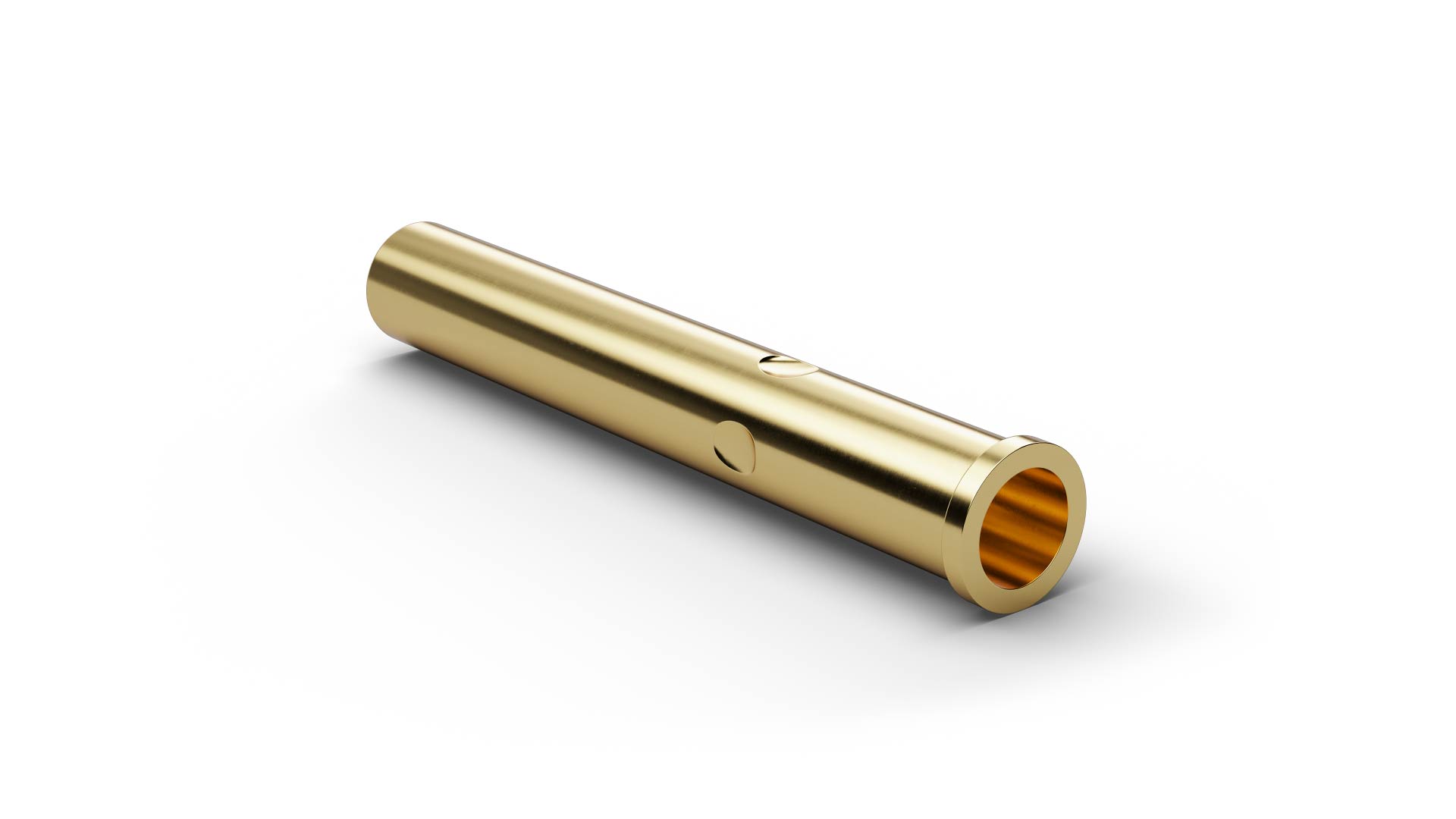

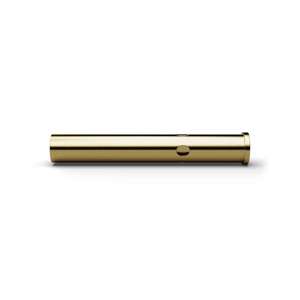

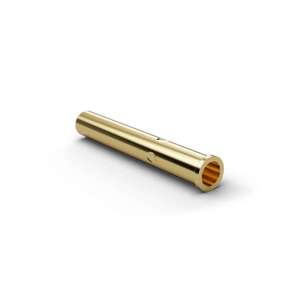

The receptacle H320 (item number 1001696) is designed for the compatible High Current Probe in the test fixture. As a Receptacle, H320 guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H320, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
