Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F075 |
| Pas (mm/mil) | 1,90 / 75 |
| Température | -45°C...+80°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 33.1 |
| Hauteur hors tout (mm) | 8.5 |
| Diamètre du style de pointe (mm) | 0.64 |
| Diamètre du fût (mm) | 1.02 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 79 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Progressive |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 80 |
| Force du ressort (cN) | 150 |
| Course nominale (mm) | 4.3 |
| Course maximale (mm) | 6.4 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 4 |
| Résistance de contact typique (mΩ) | 20 |
Graphiques
Beschreibung des Produkts

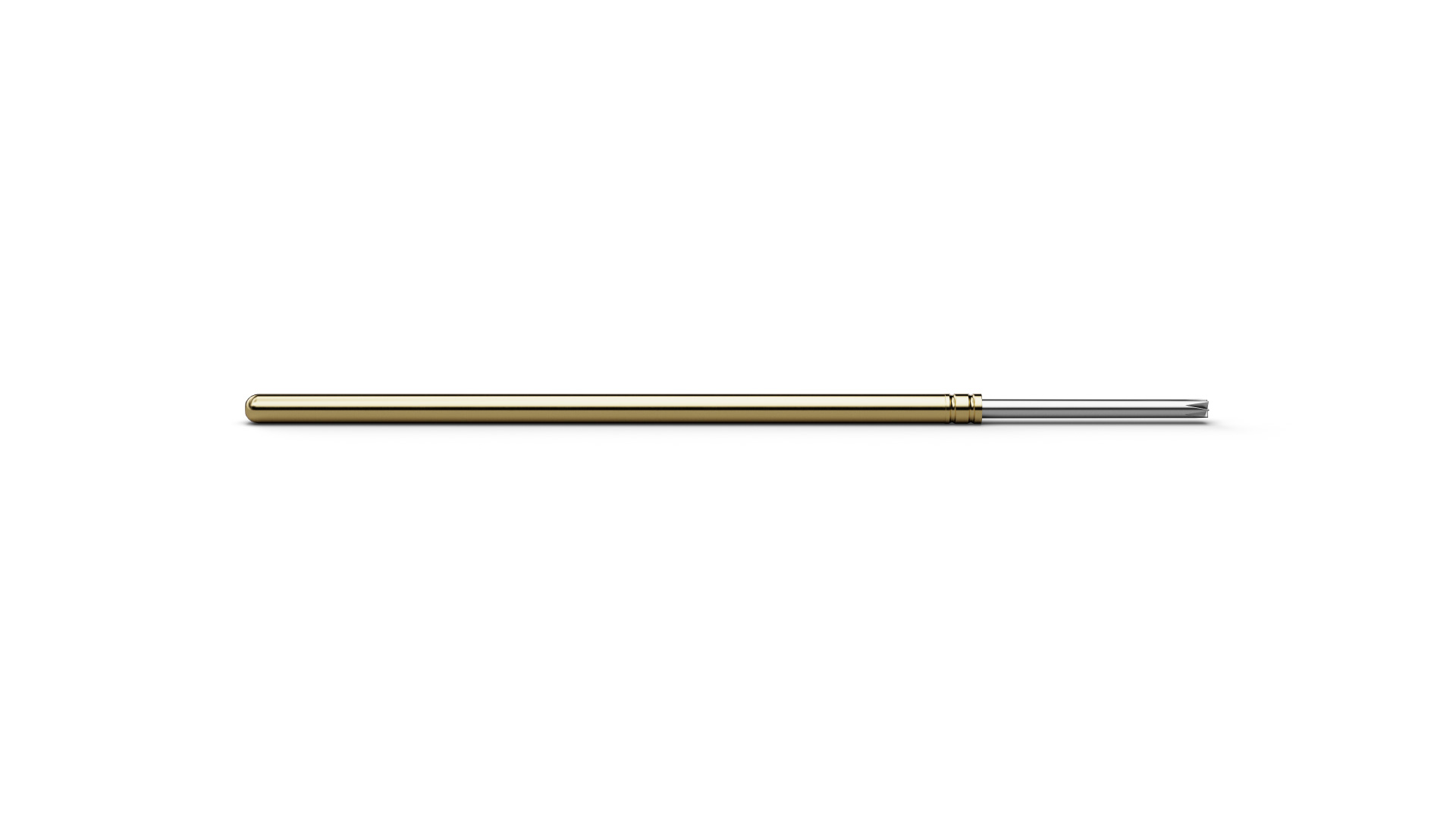

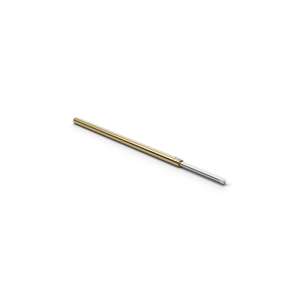

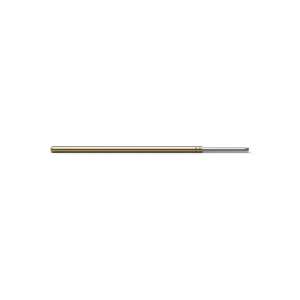

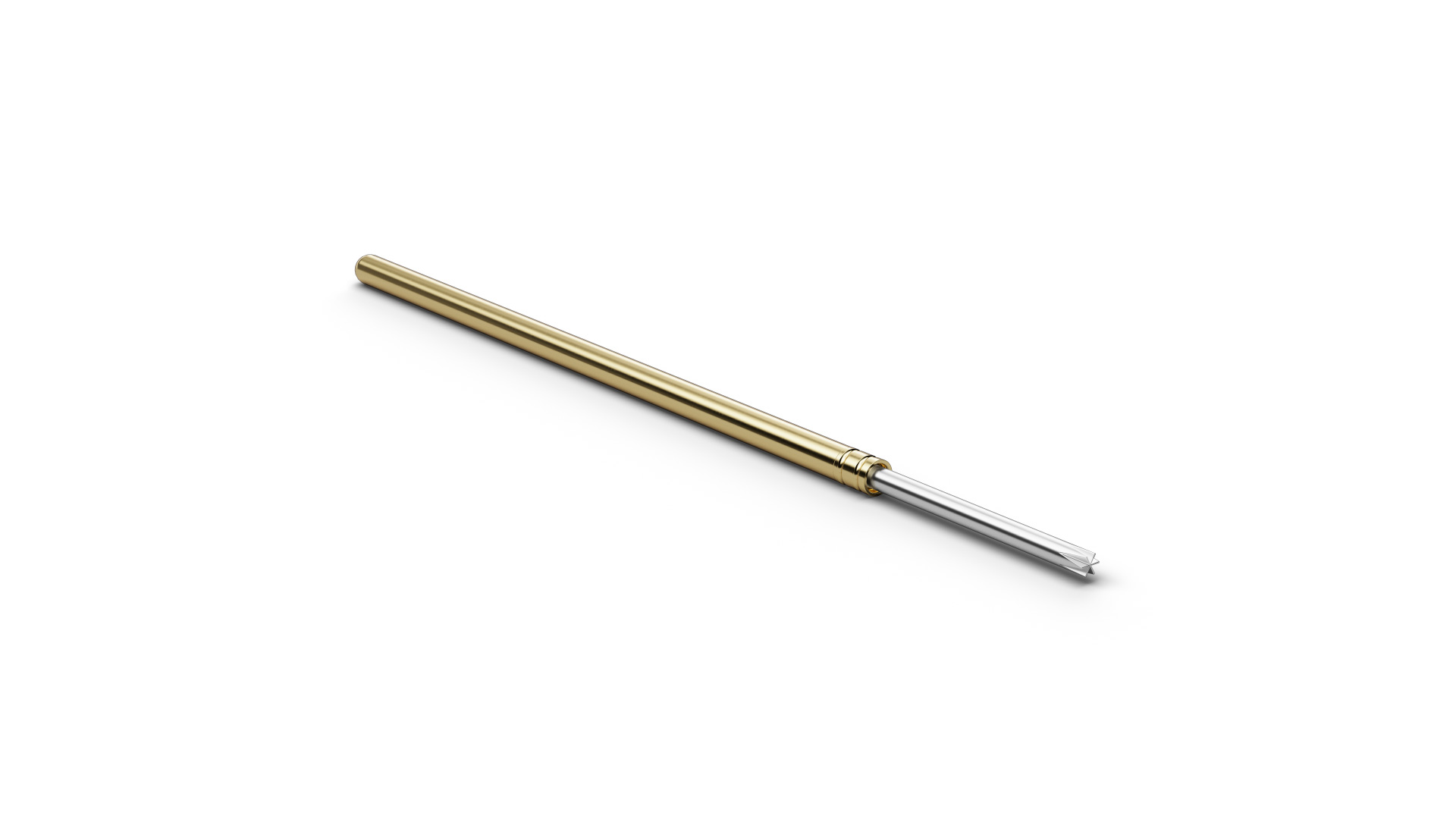

F07579B064P150HP (item number 1169693) belongs to the Basic Contact Probe range for precise, repeatable contacting of electronic test points. F07579B064P150HP belongs to the basic probe range for ICT/FCT, where tip geometry, spring force and surface finish are matched to the target test point. F07579B064P150HP combines a pitch of 1.9 mm / 75 mil with tip style 79 (6-point crown flattened) and a tip diameter of 0.64 mm. F07579B064P150HP operates with 150 cN spring force and 4.3 mm nominal travel. F07579B064P150HP is specified for 4 A continuous current. Two features address difficult surface conditions on F07579B064P150HP: Progressive Coating reduces contamination sensitivity, while the HP spring provides increased preload at the start of the contact stroke.
