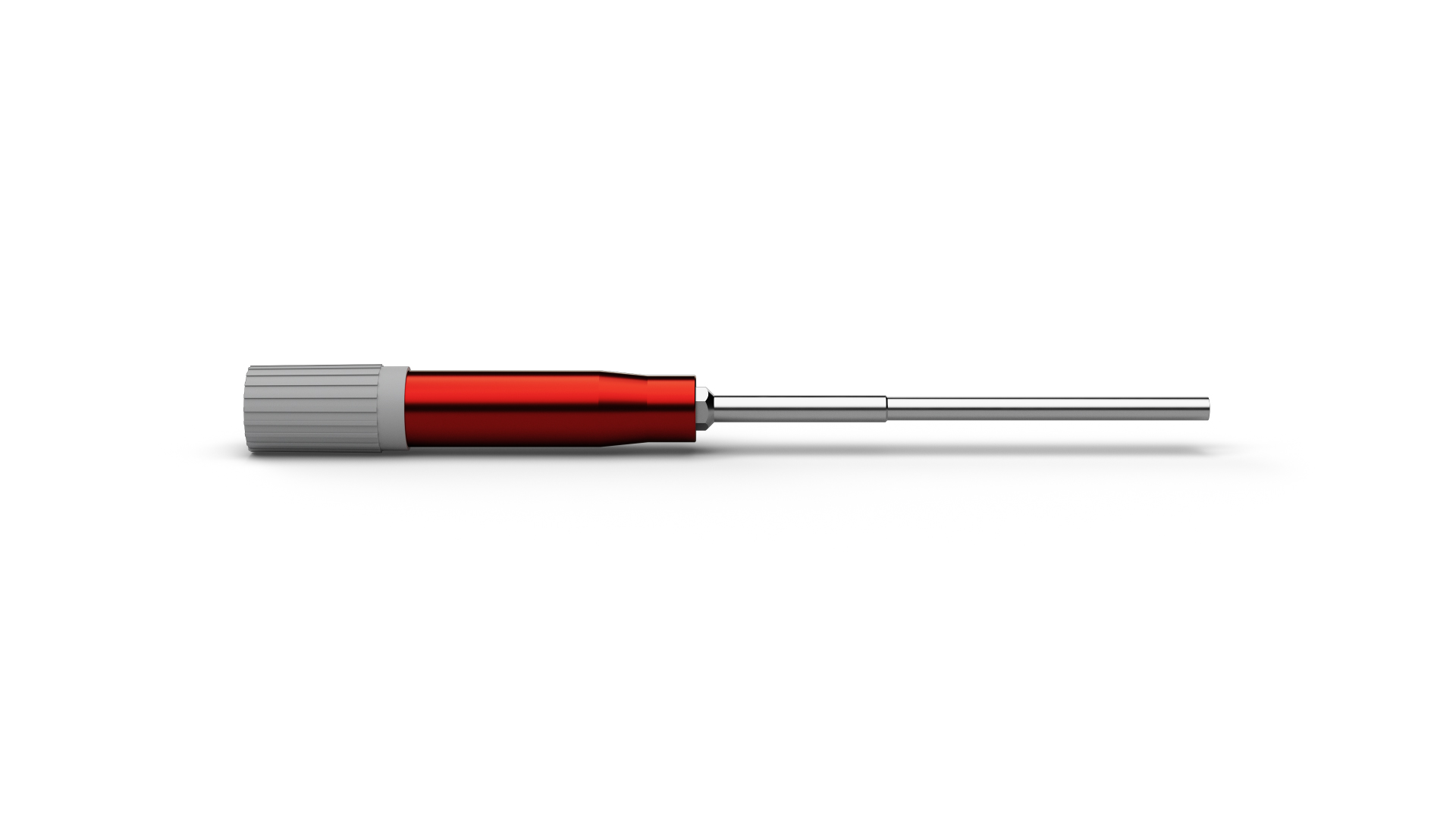

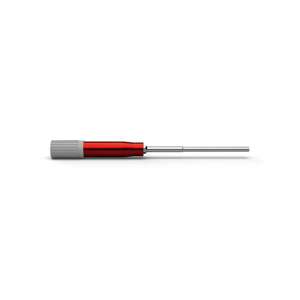

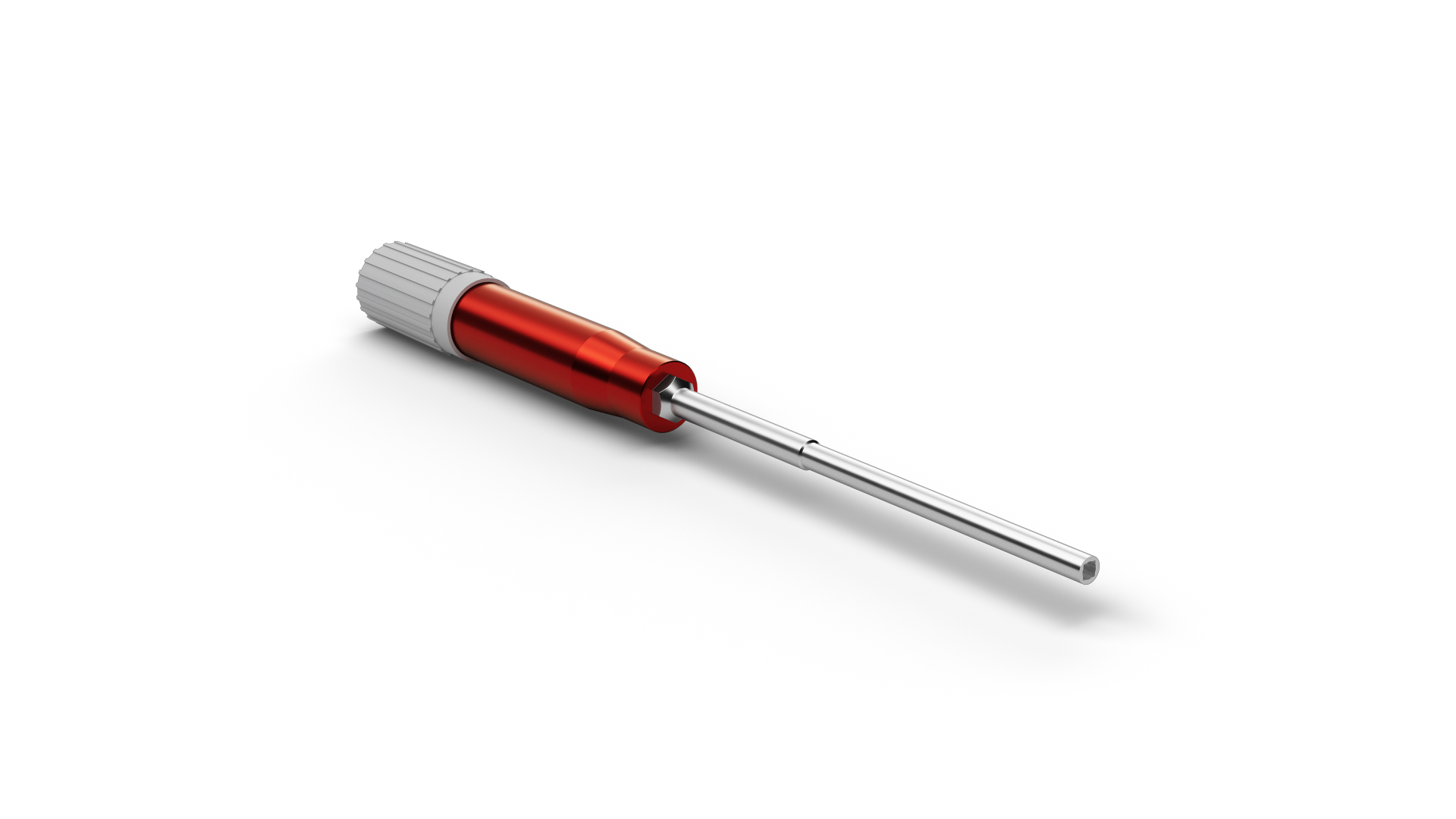

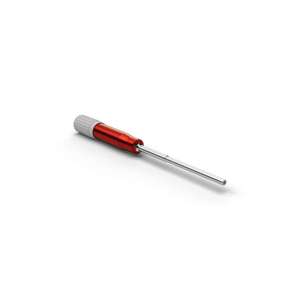

FWZ731S1T (item number 1029810) is an assembly tool for Contact Probes and Receptacles or related test components. FWZ731S1T is matched to installation or maintenance of the corresponding probes and receptacles and supports controlled handling of the contacting components. FWZ731S1T supports precise assembly, adjustment or maintenance of the associated contacting components. For handling, the relevant data includes tool type FWZ731, tool interface Steckschlüssel, tool size 1.4 mm, length 100 mm, outside diameter 2.4 mm, insertion depth 13 mm, torque 2 Ncm. The geometry of FWZ731S1T is matched to controlled assembly and helps reduce the risk of damage to the Contact Probe, Receptacle or test fixture.
