Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | I- |
| Pas (mm/mil) | 5,90 / 232 |
| Température | -45°C...+250°C |

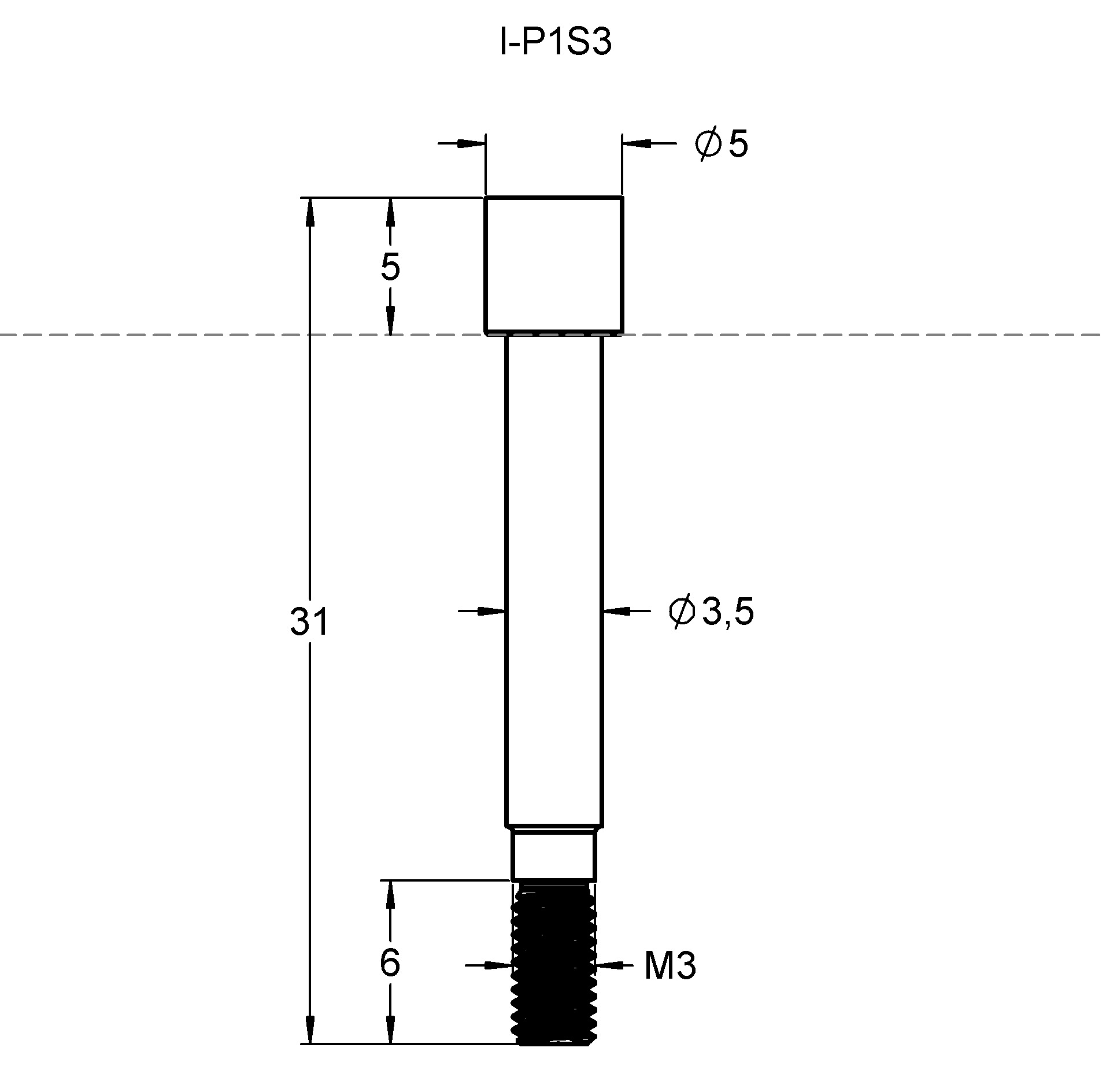

| Dimensions | |
|---|---|
| Longueur totale (mm) | 31 |
| Diamètre du style de pointe (mm) | 5 |
| Diamètre du fût (mm) | 3.5 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 16 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 40 |
Graphiques
Beschreibung des Produkts

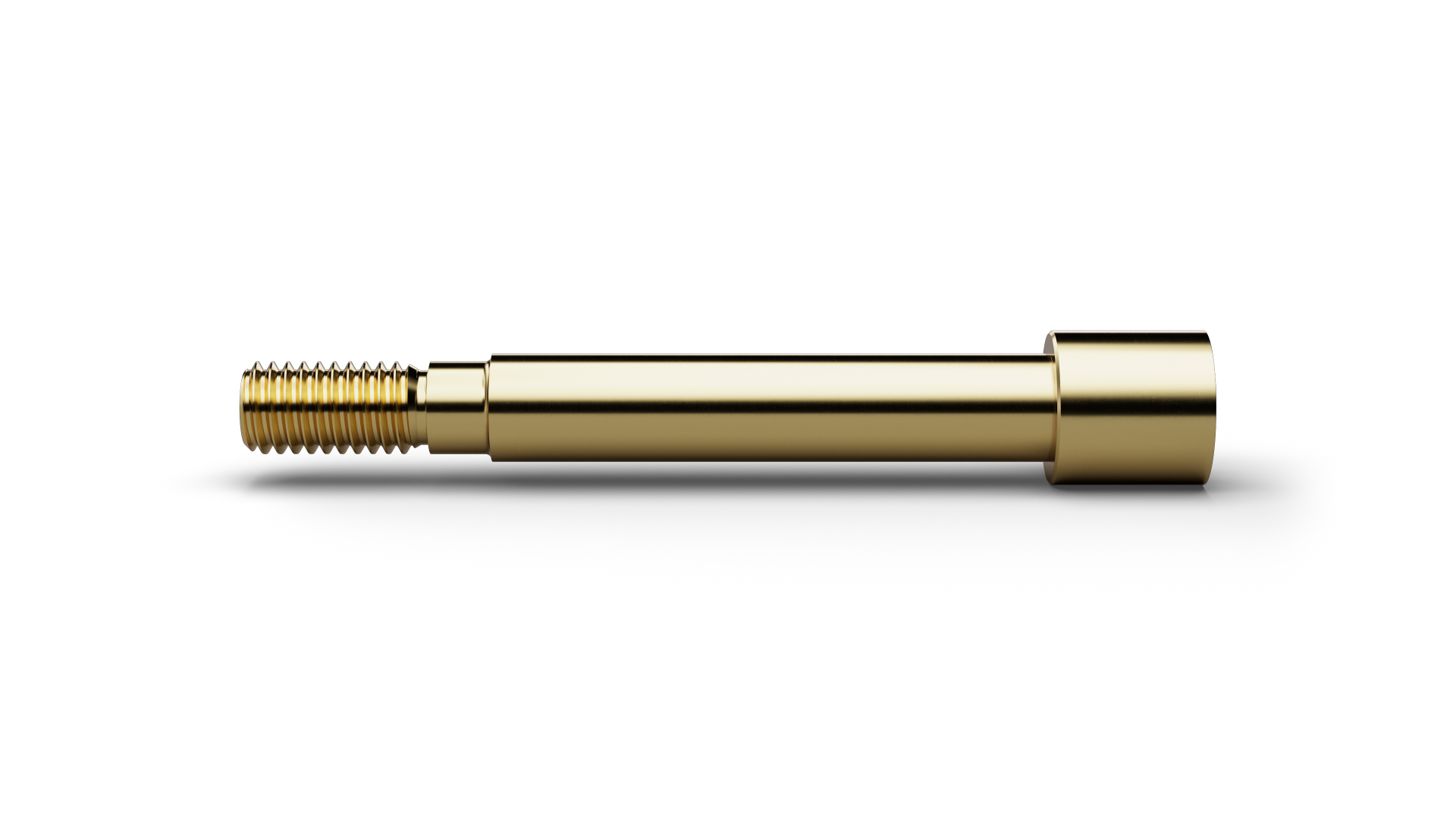

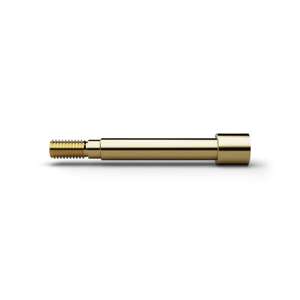

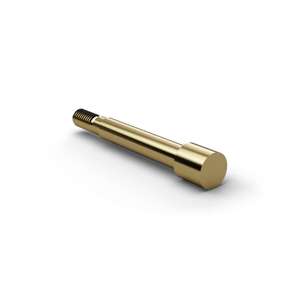

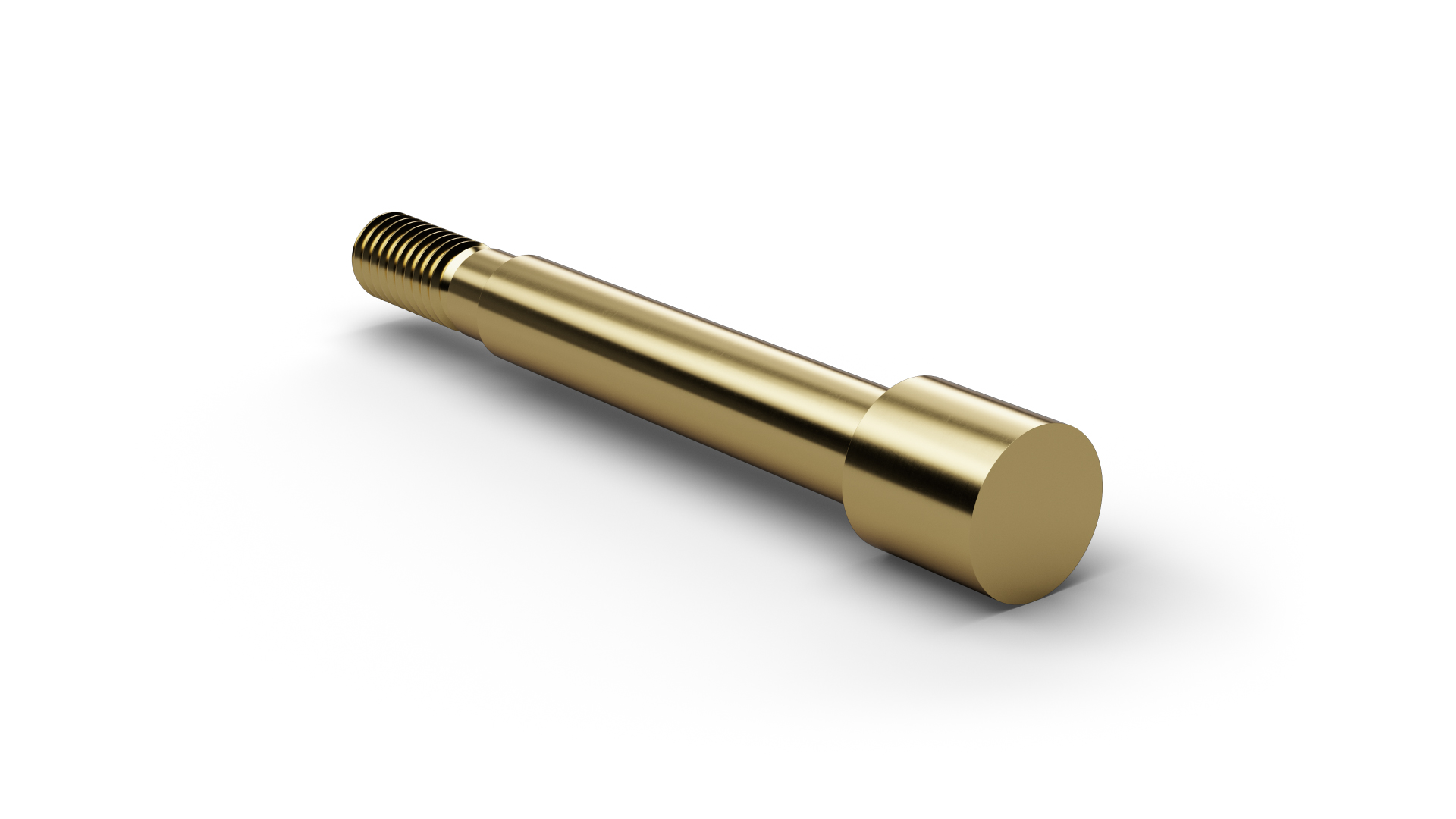

I-P1S3 (item number 1017929) is a Contact Probe for defined interfaces within electronic test setups. I-P1S3 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. I-P1S3 combines a pitch of 5.9 mm / 232 mil with tip style 16 (Flat) and a tip diameter of 5 mm. The continuous-current rating of I-P1S3 is 40 A. The plunger in I-P1S3 is made of beryllium copper and is gold-plated.
