Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F100 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+80°C |
| Definición adicional | IK04 |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 34.7 |
| Altura sobresaliente (mm) | 9.4 |
| Diámetro del estilo de punta (mm) | 3.5 |
| Diámetro del casquillo (mm) | 1.37 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 41 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 150 |
| Fuerza del resorte (cN) | 300 |
| Recorrido nominal (mm) | 4.3 |
| Recorrido máximo (mm) | 6.4 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

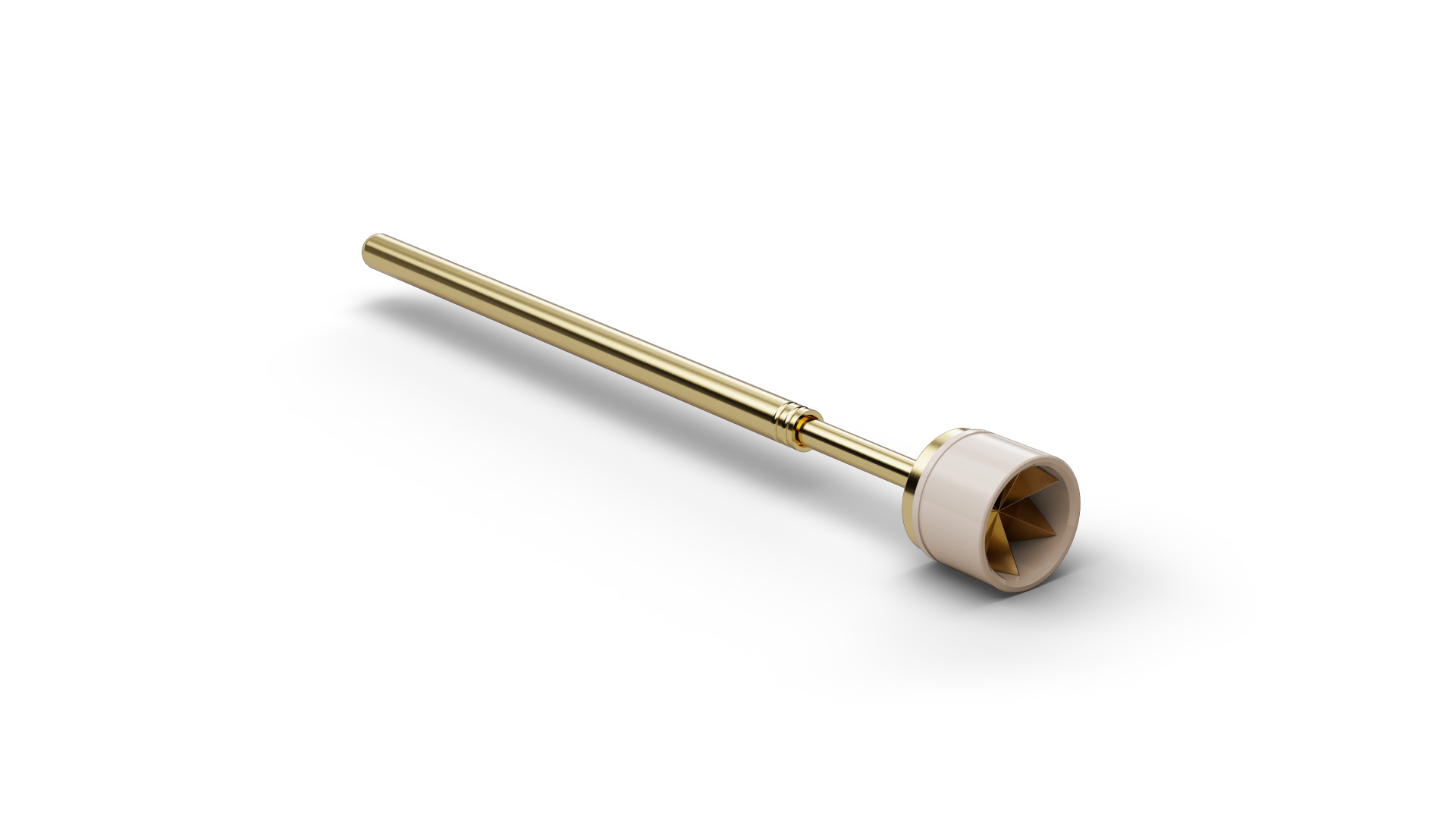

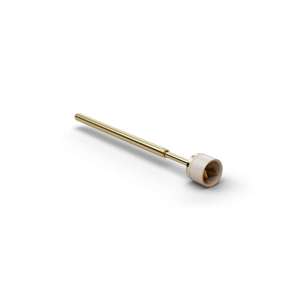

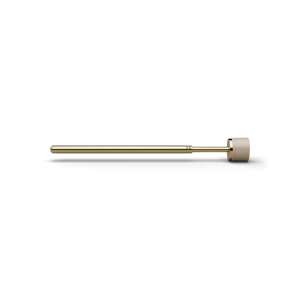

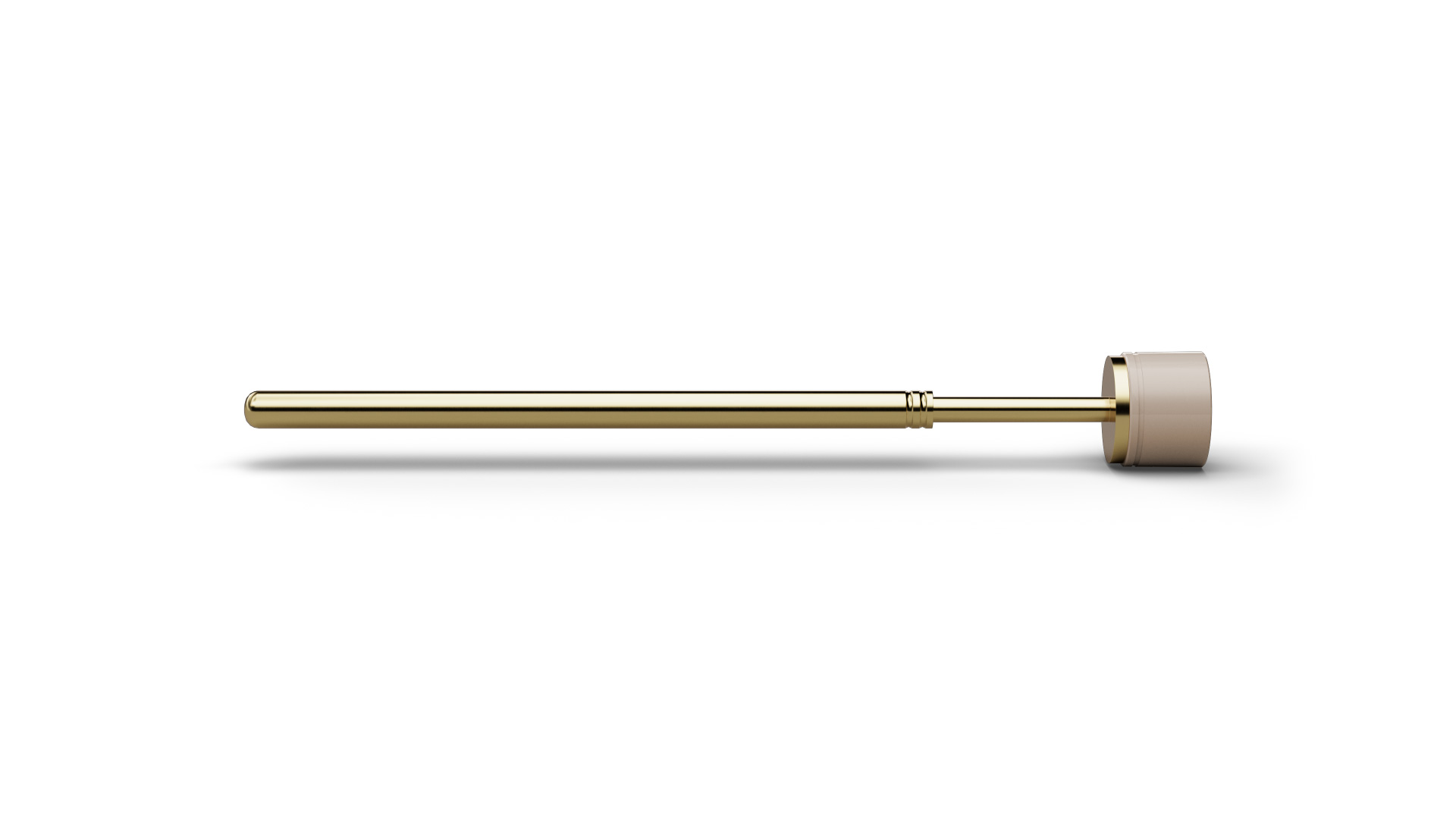

F10041B350G300IK04 (item number 1170817) is a Basic Contact Probe for repeatable temporary electrical connections between the test system and a test point. With tip style 41 (6-point crown stepped (self-cleaning)), F10041B350G300IK04 combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. The design combines a pitch of 2.54 mm / 100 mil with tip style 41 (6-point crown stepped (self-cleaning)) and a tip diameter of 3.5 mm. For F10041B350G300IK04, spring force is 300 cN at a nominal travel of 4.3 mm. The continuous-current rating of F10041B350G300IK04 is 5 A.
