Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F075 |
| Paso (mm/mil) | 1,9 / 75 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 33.1 |
| Altura sobresaliente (mm) | 8.5 |
| Diámetro del estilo de punta (mm) | 1.3 |
| Diámetro del casquillo (mm) | 1.02 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 36 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Longtime Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 80 |
| Fuerza del resorte (cN) | 200 |
| Recorrido nominal (mm) | 4.3 |
| Recorrido máximo (mm) | 6.4 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 4 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

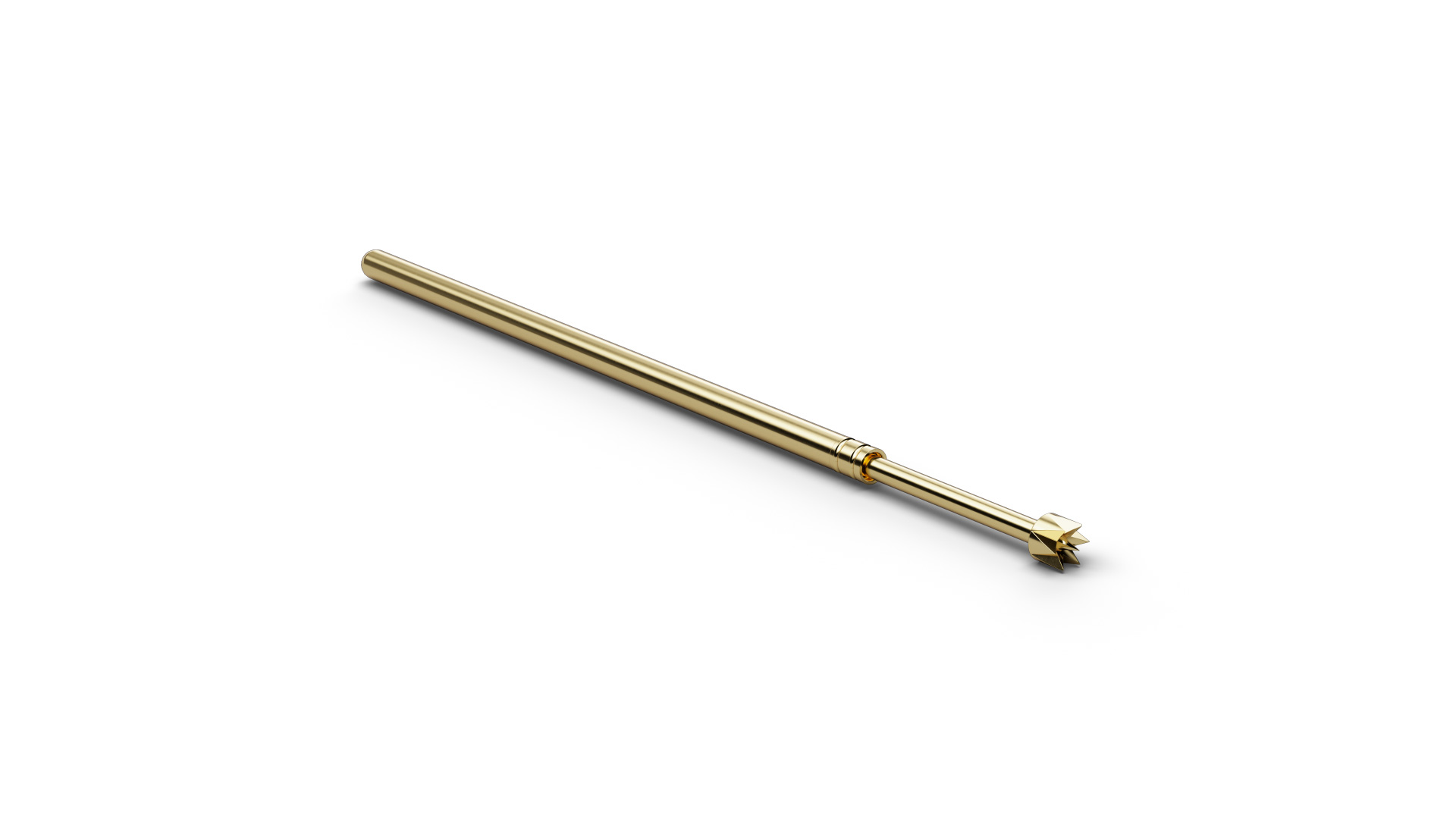

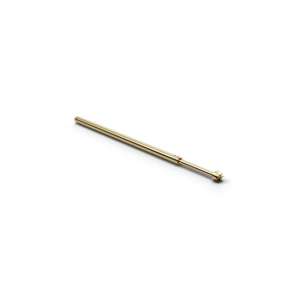

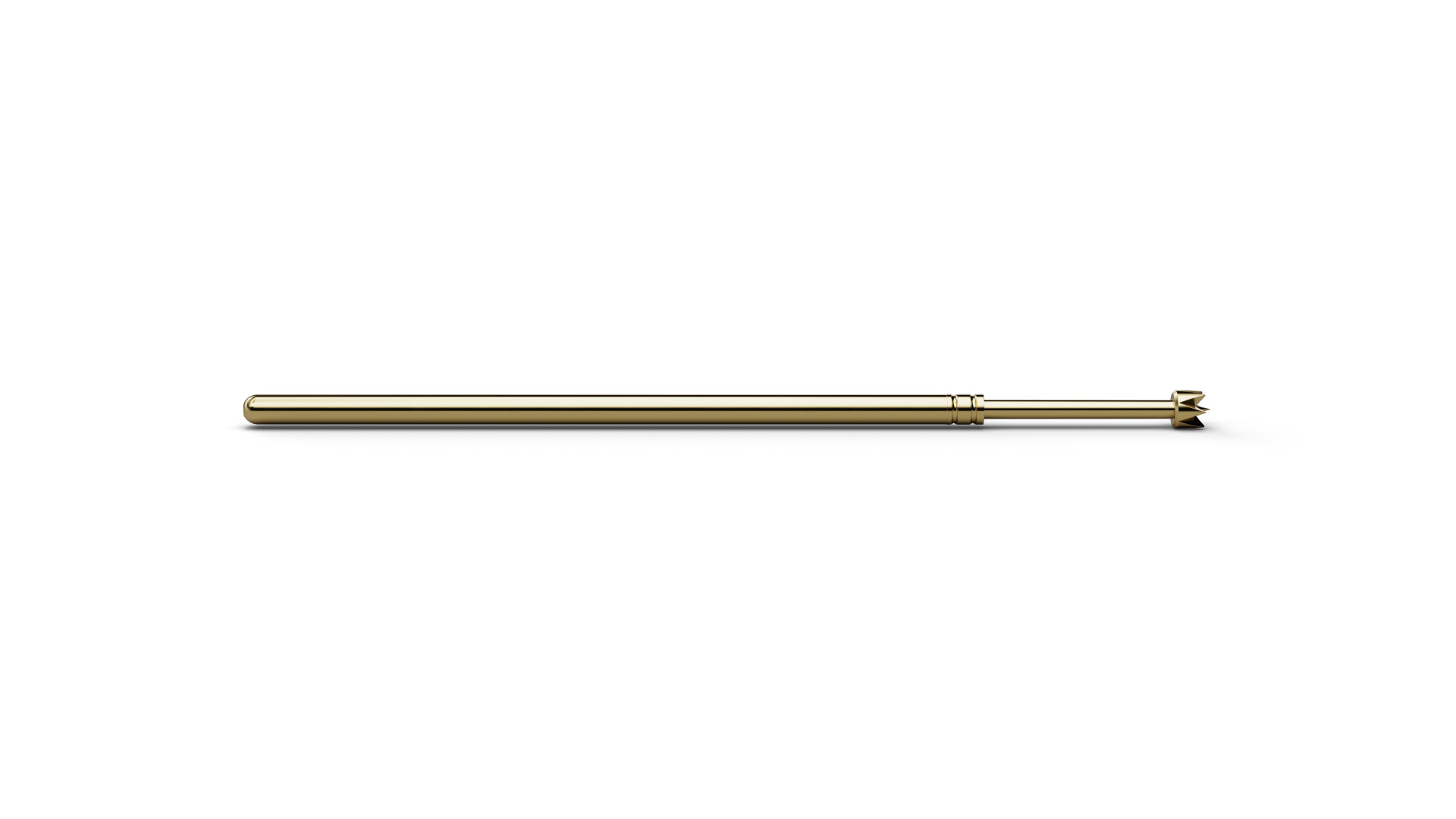

The Basic Contact Probe F07536S130L200 (item number 1134043) is a spring-loaded probe for temporary electrical contact with test points. With tip style 36 (6-point crown stepped, middle pin longer), F07536S130L200 combines ICT/FCT use with a geometry intended for plated or filled vias. The design combines a pitch of 1.9 mm / 75 mil with tip style 36 (6-point crown stepped, middle pin longer) and a tip diameter of 1.3 mm. For F07536S130L200, spring force is 200 cN at a nominal travel of 4.3 mm. F07536S130L200 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F07536S130L200 is made of steel and uses Longtime Gold plating.
