Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F112 |
| Paso (mm/mil) | 1,27 / 50 |
| Temperatura | -45°C...+80°C |
| Definición adicional | NON MAGNETIC |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 16.5 |
| Altura sobresaliente (mm) | 3.8 |
| Diámetro del estilo de punta (mm) | 0.5 |
| Diámetro del casquillo (mm) | 0.69 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 11 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Copper |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 4 |
| Fuerza del resorte (cN) | 40 |
| Recorrido nominal (mm) | 2 |
| Recorrido máximo (mm) | 2.8 |
| Precisión de punteo +/- (mm) | 0.09 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 3 |
| Resistencia de contacto típica (mΩ) | 35 |

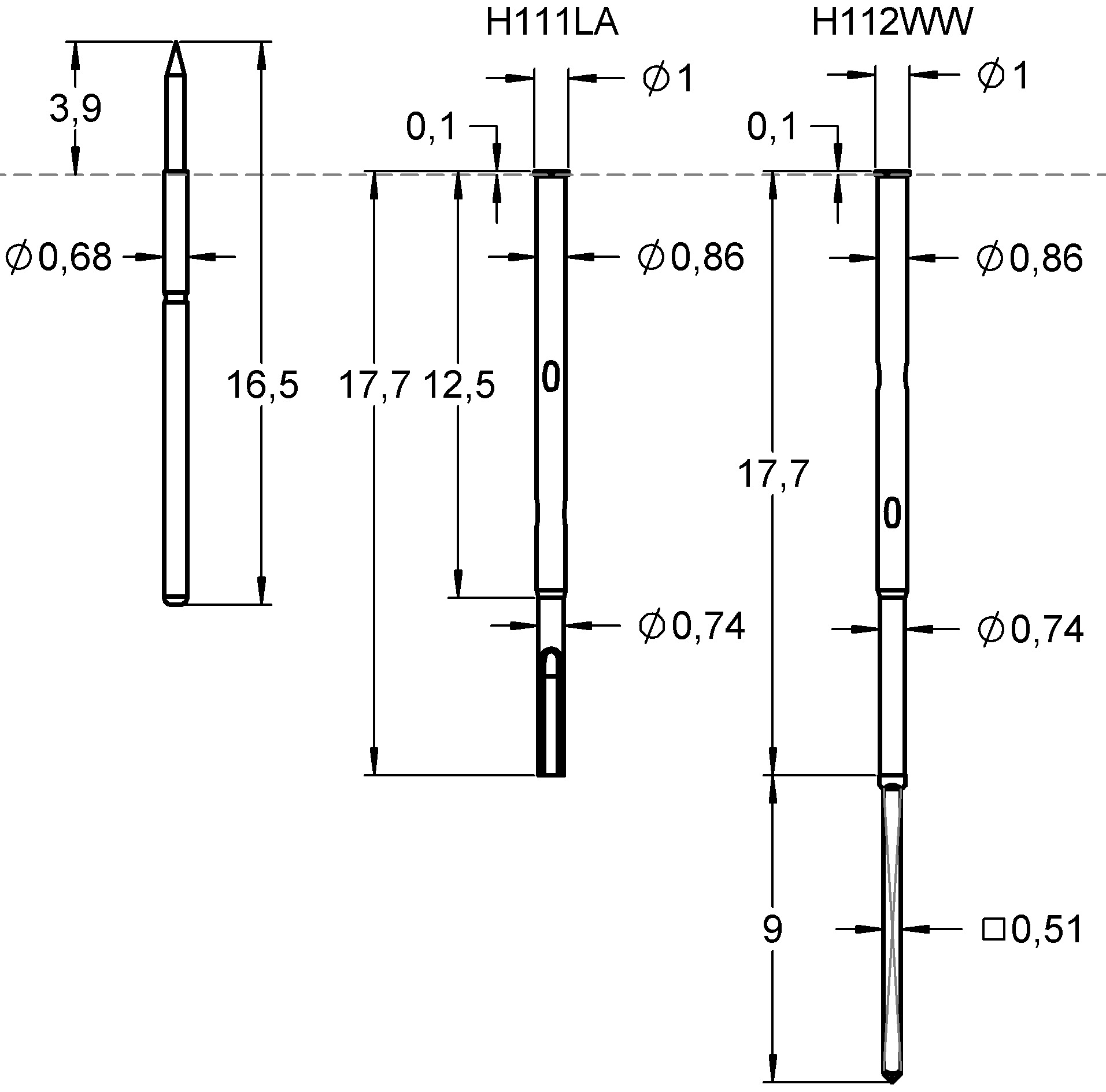

Gráficos
Beschreibung des Produkts

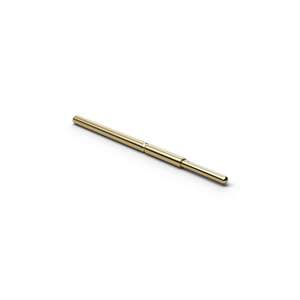

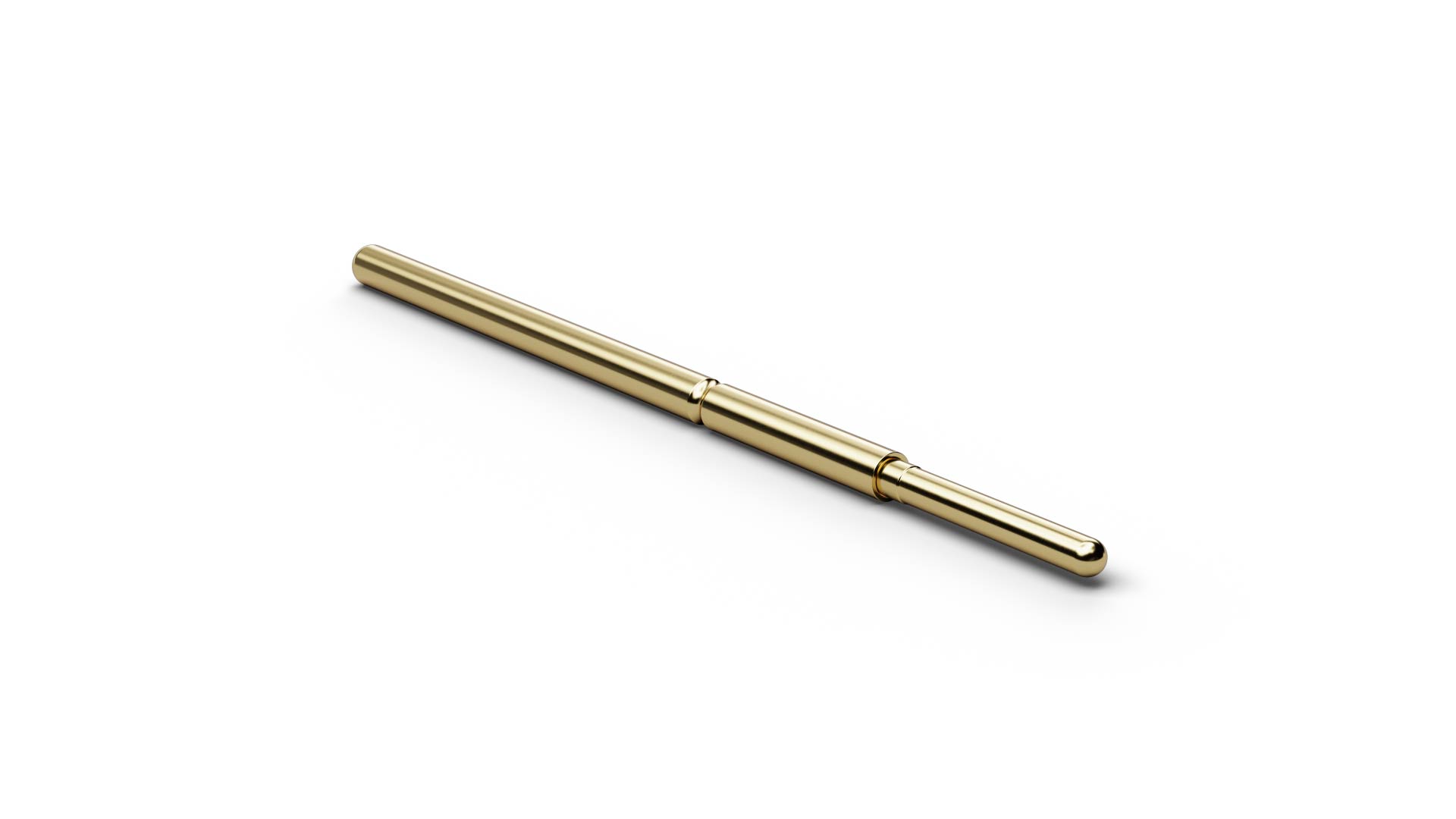

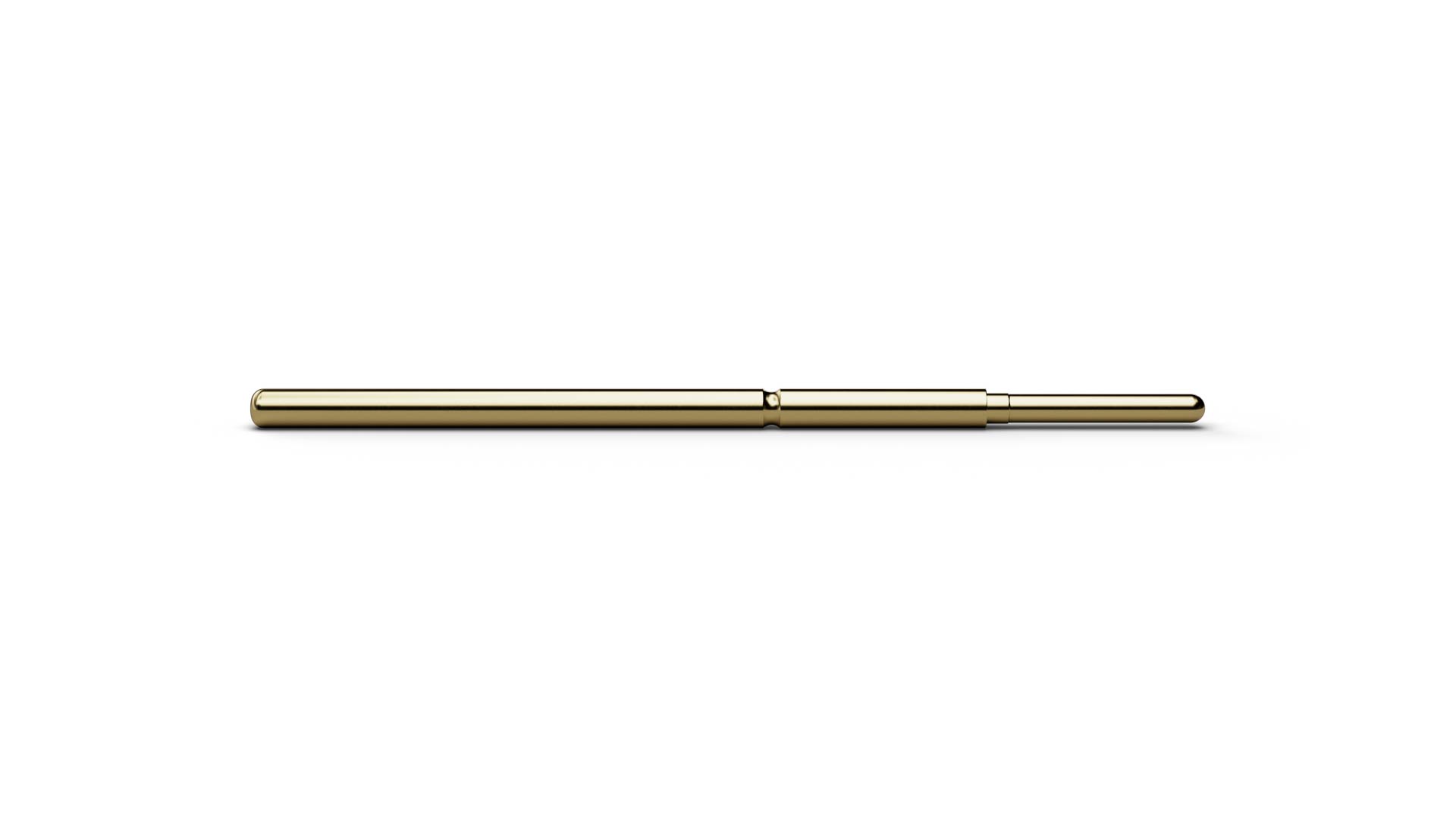

F11211B050G040 (item number 1087014) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 11 (Spherical), F11211B050G040 combines ICT/FCT use with a geometry intended for clean contact surfaces where marking or scratching should be minimized. F11211B050G040 combines a pitch of 1.27 mm / 50 mil with tip style 11 (Spherical) and a tip diameter of 0.5 mm. For F11211B050G040, spring force is 40 cN at a nominal travel of 2 mm. F11211B050G040 is rated for 3 A continuous current with a typical contact resistance of 35 mΩ. The plunger in F11211B050G040 is made of beryllium copper and is gold-plated.
