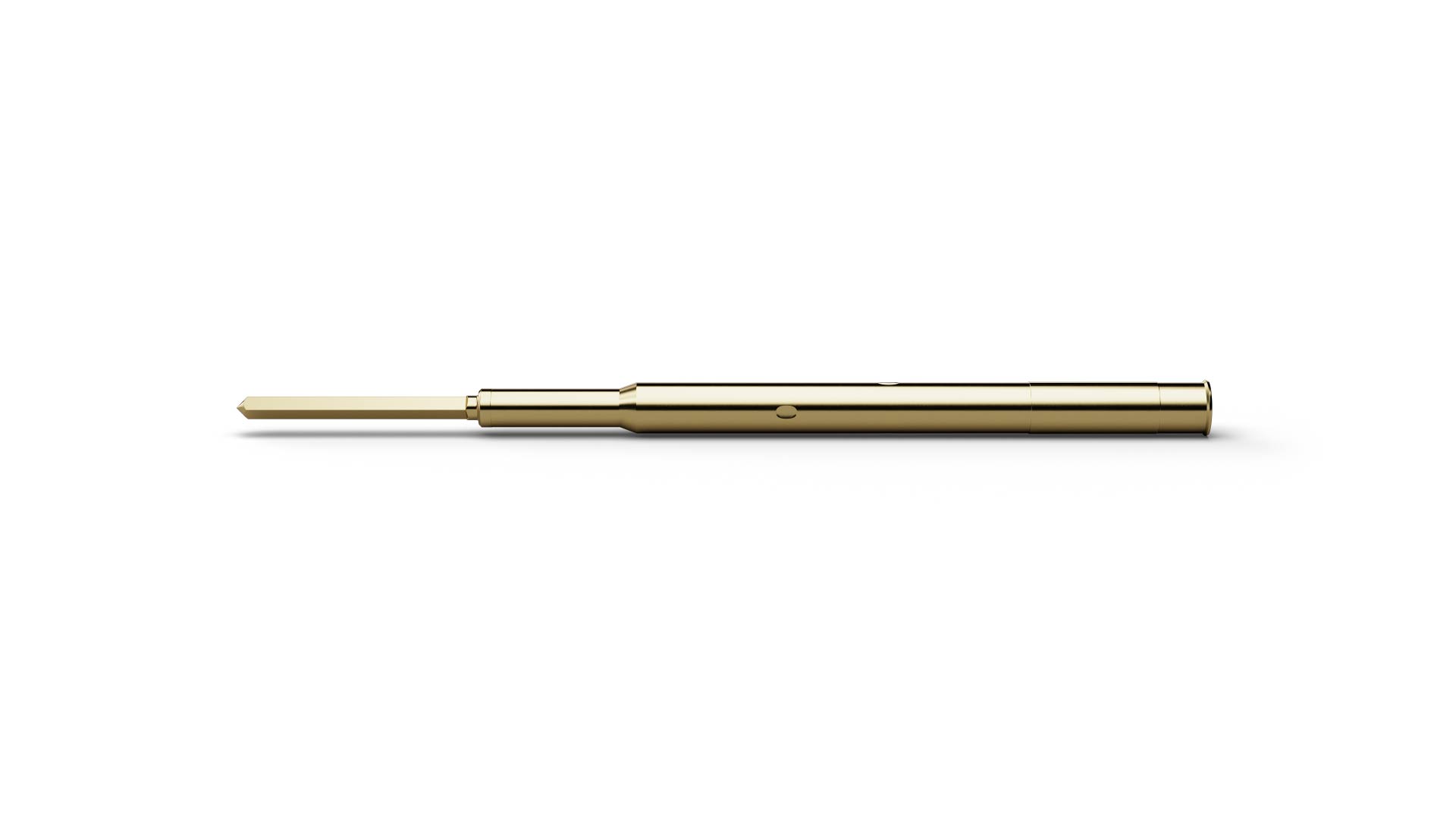

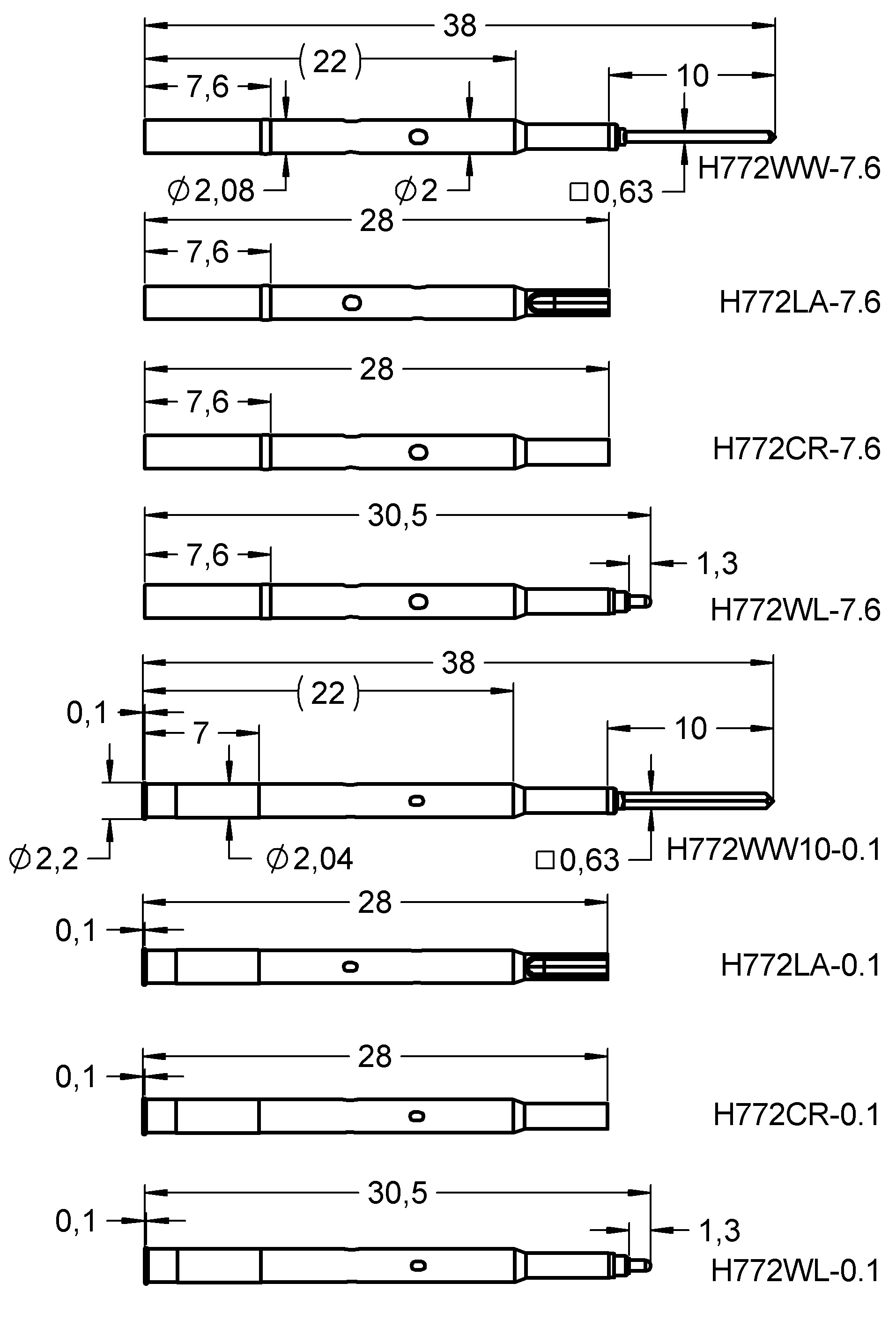

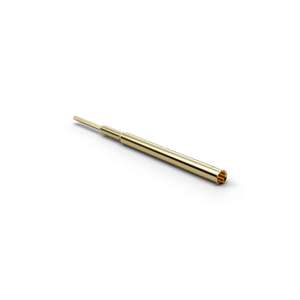

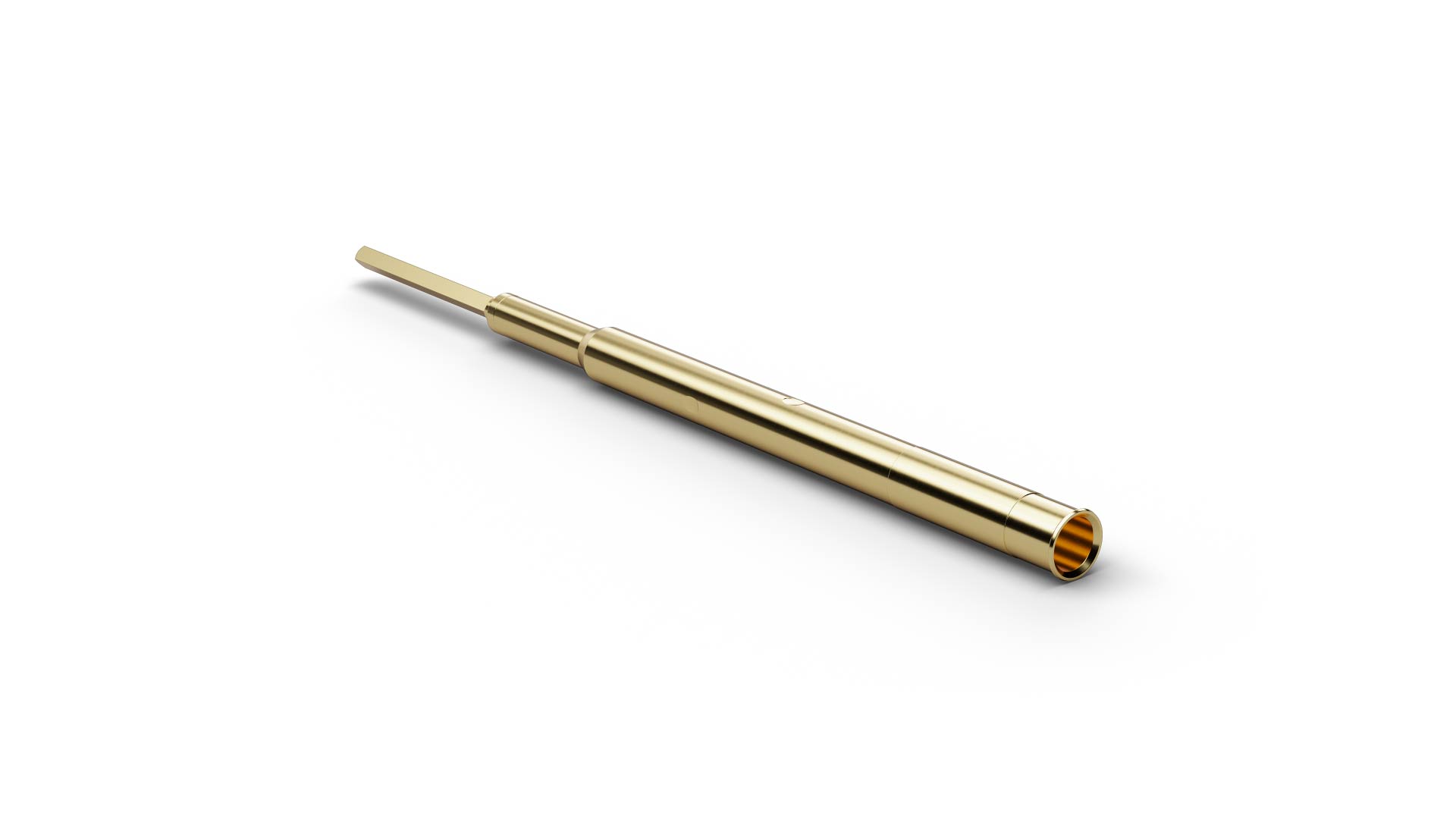

H772WW10-0.1 (item number 1018331) is a receptacle for the compatible Basic Contact Probe and defines its installed position in the test fixture. As a Receptacle, H772WW10-0.1 guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. Relevant installation data for H772WW10-0.1 includes pitch 2.54 mm / 100 mil, outside diameter 2 mm, length 38 mm, connection type wire-wrap connection. When selecting H772WW10-0.1, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
