Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | P-M / P197M-L090 |
| Paso (mm/mil) | 4,50 / 177 |
| Temperatura | -45°C...+200°C |

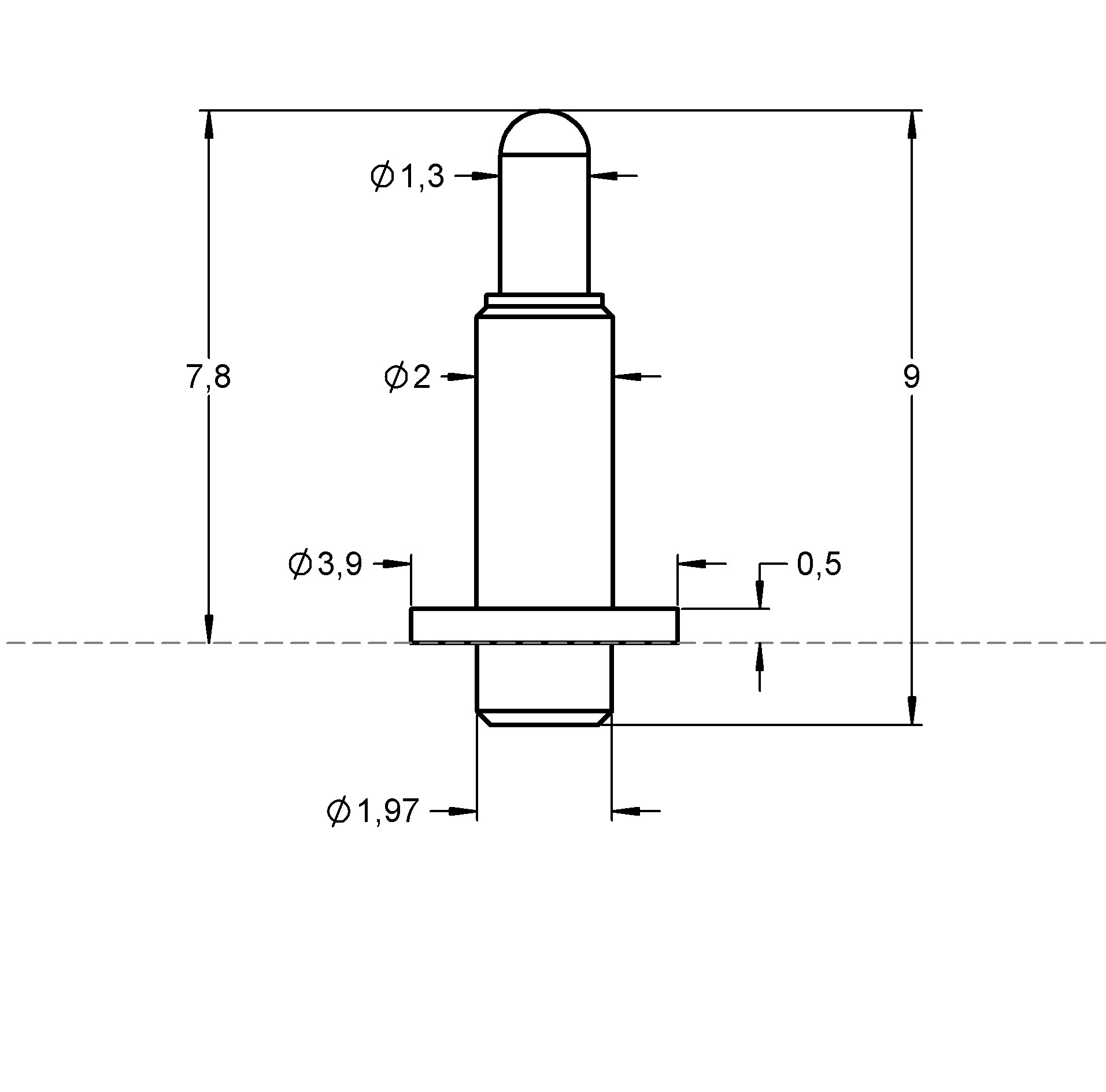

| Dimensiones | |
|---|---|
| Longitud total (mm) | 9 |
| Altura sobresaliente (mm) | 7.8 |
| Diámetro del estilo de punta (mm) | 1.3 |
| Diámetro del casquillo (mm) | 1.97 |
| Diámetro del collar (mm) | 3.9 |
| Diámetro del anillo de presión (mm) | 3.9 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 11 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 70 |
| Fuerza del resorte (cN) | 250 |
| Recorrido nominal (mm) | 1.7 |
| Recorrido máximo (mm) | 2.5 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 9 |
| Resistencia de contacto típica (mΩ) | 30 |
Gráficos
Beschreibung des Produkts

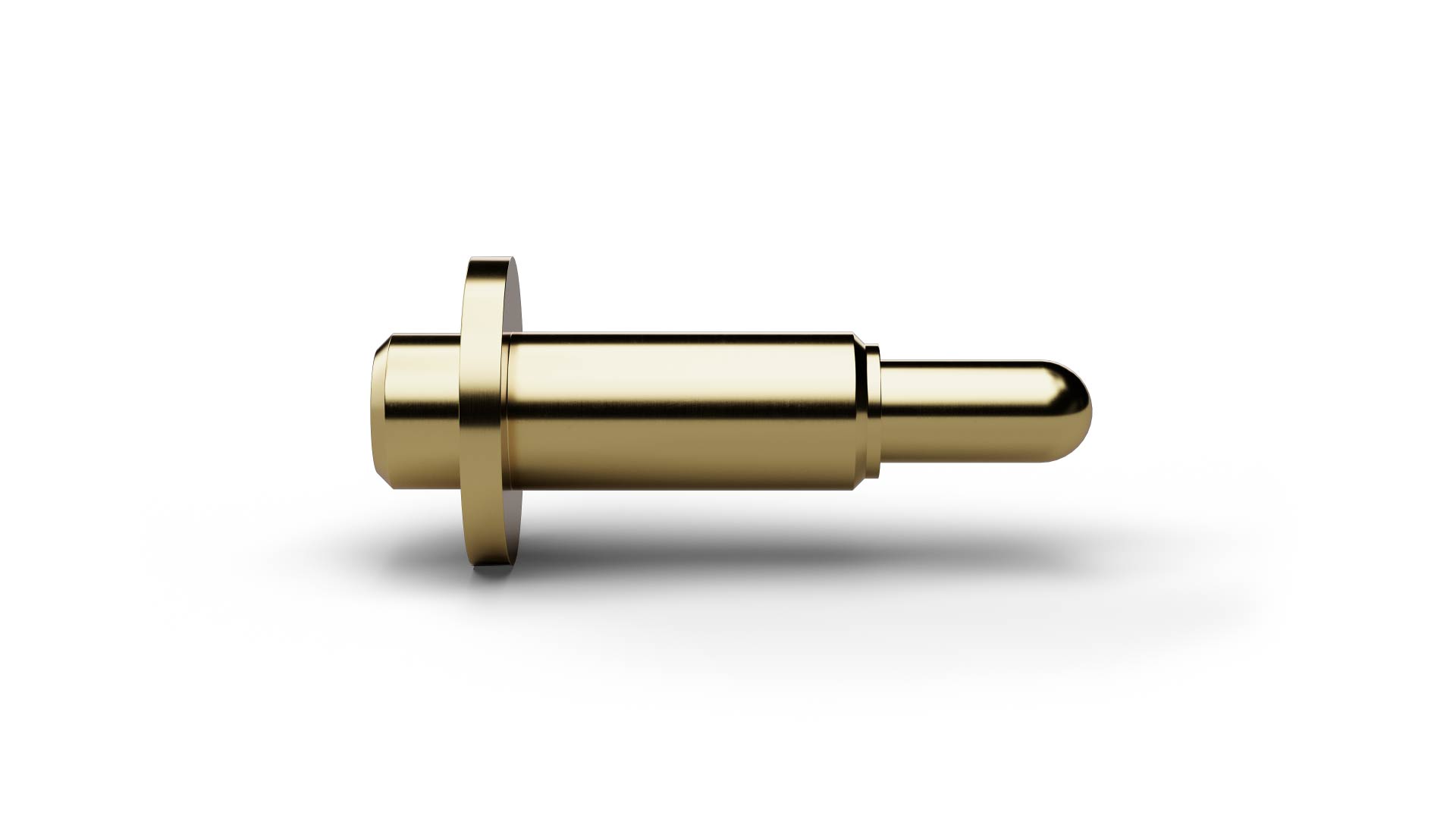

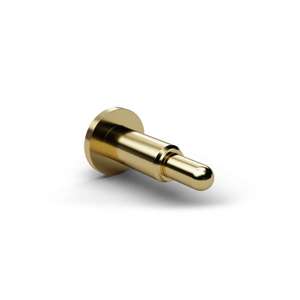

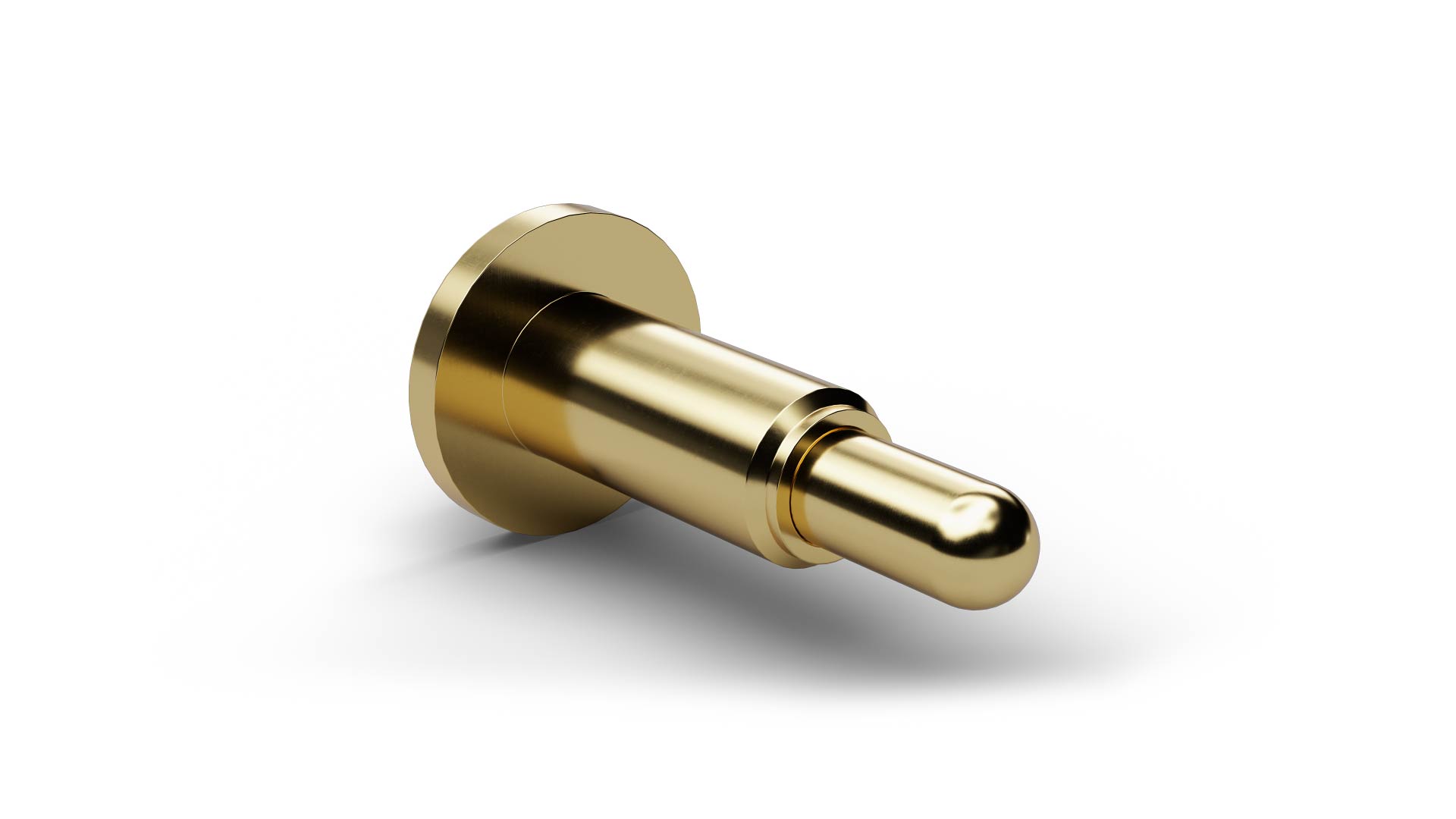

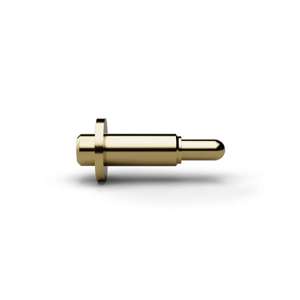

P19711B130G250ML090ST (item number 1017983) belongs to the Pogo Connector range for compact, repeatedly actuated electrical contacts. As a spring-loaded detachable interface, P19711B130G250ML090ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P19711B130G250ML090ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. The design combines a pitch of 4.5 mm / 177 mil with tip style 11 (Spherical) and a tip diameter of 1.3 mm. Spring force is 250 cN at a nominal travel of 1.7 mm. The continuous-current rating of P19711B130G250ML090ST is 9 A.
