Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F050 |
| Paso (mm/mil) | 1,27 / 50 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 43.2 |
| Altura sobresaliente (mm) | 8.1 |
| Diámetro del estilo de punta (mm) | 0.5 |
| Diámetro del casquillo (mm) | 0.78 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 21 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Longtime Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 60 |
| Fuerza del resorte (cN) | 150 |
| Recorrido nominal (mm) | 4.3 |
| Recorrido máximo (mm) | 6.4 |
| Precisión de punteo +/- (mm) | 0.05 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 3 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

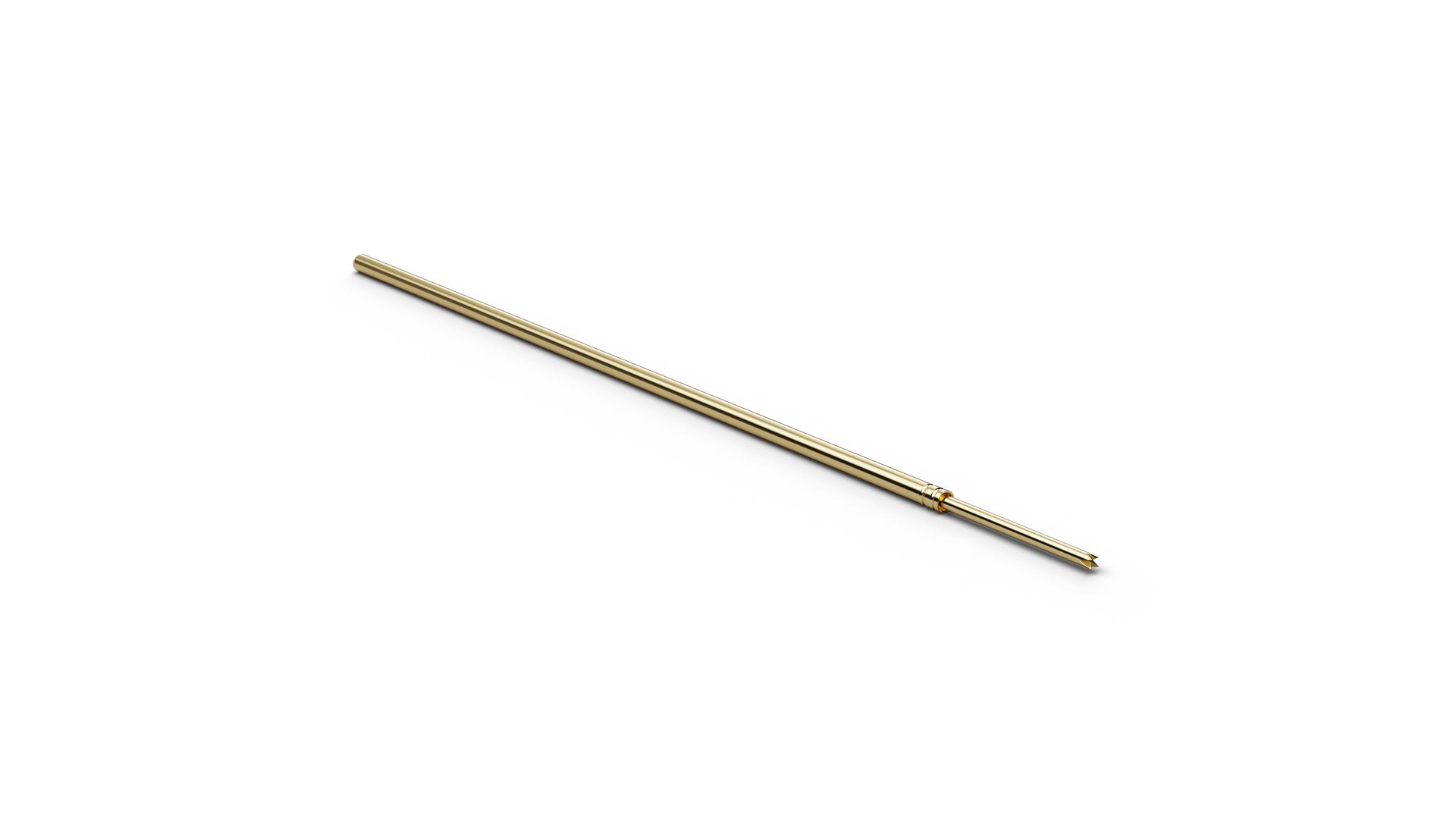

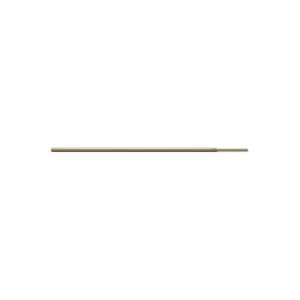

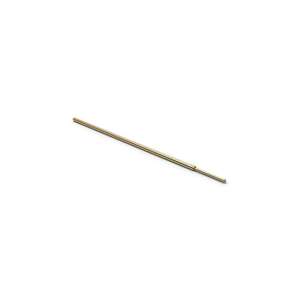

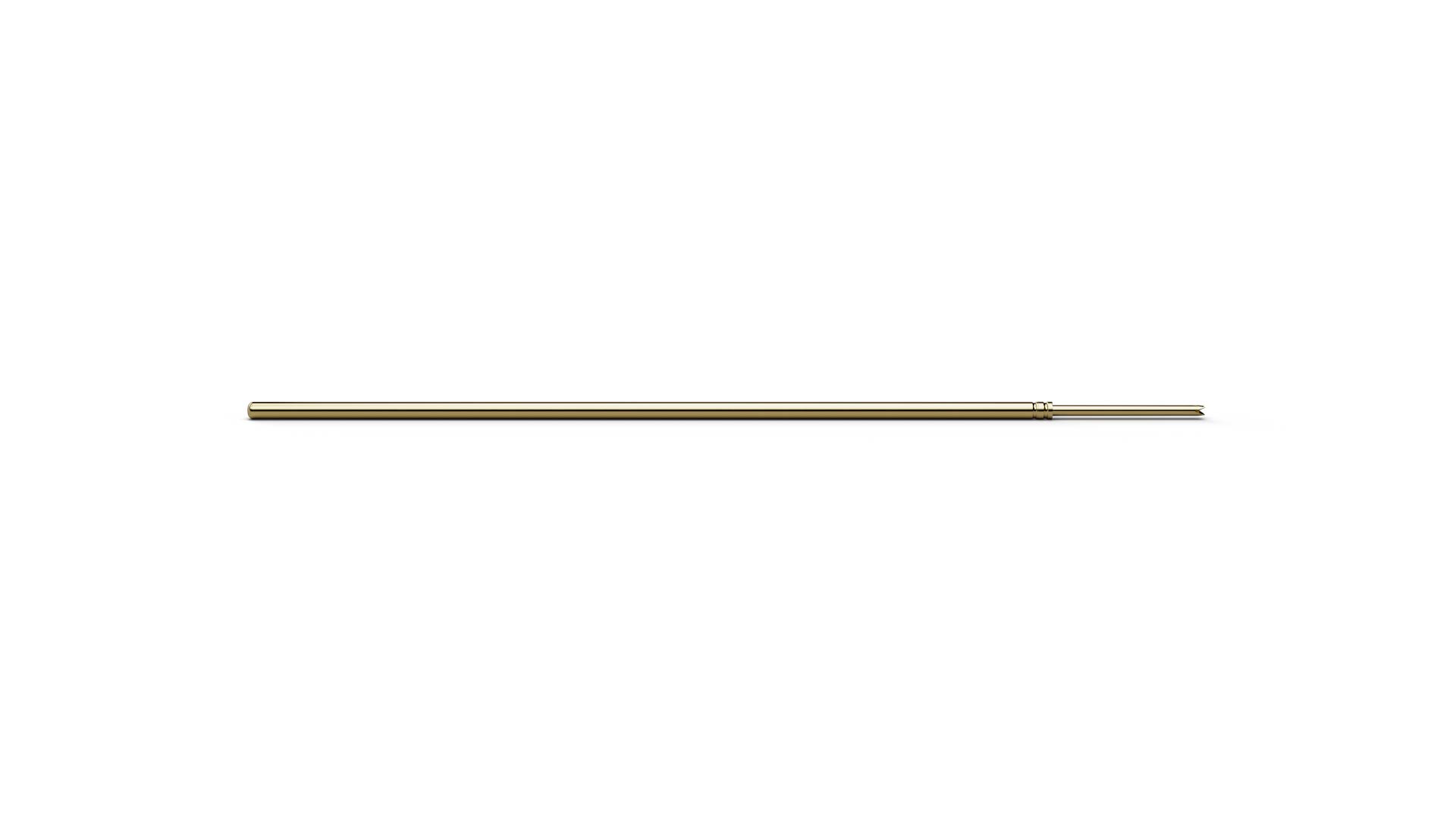

As a Basic Contact Probe, F05021S050L150 (item number 1010445) establishes a spring-loaded electrical connection to the test point. With tip style 21 (4-point crown (self-cleaning)), F05021S050L150 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F05021S050L150 combines a pitch of 1.27 mm / 50 mil with tip style 21 (4-point crown (self-cleaning)) and a tip diameter of 0.5 mm. For F05021S050L150, spring force is 150 cN at a nominal travel of 4.3 mm. F05021S050L150 is rated for 3 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F05021S050L150 is made of steel and uses Longtime Gold plating.
