Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | HCF320 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+200°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 32 |
| Altura sobresaliente (mm) | 13.2 |
| Diámetro del estilo de punta (mm) | 1.35 |
| Diámetro del casquillo (mm) | 1.35 |
| Diámetro del collar (mm) | 1.5 |
| Diámetro del anillo de presión (mm) | 1.5 |
| Materiales y superficies | |
|---|---|

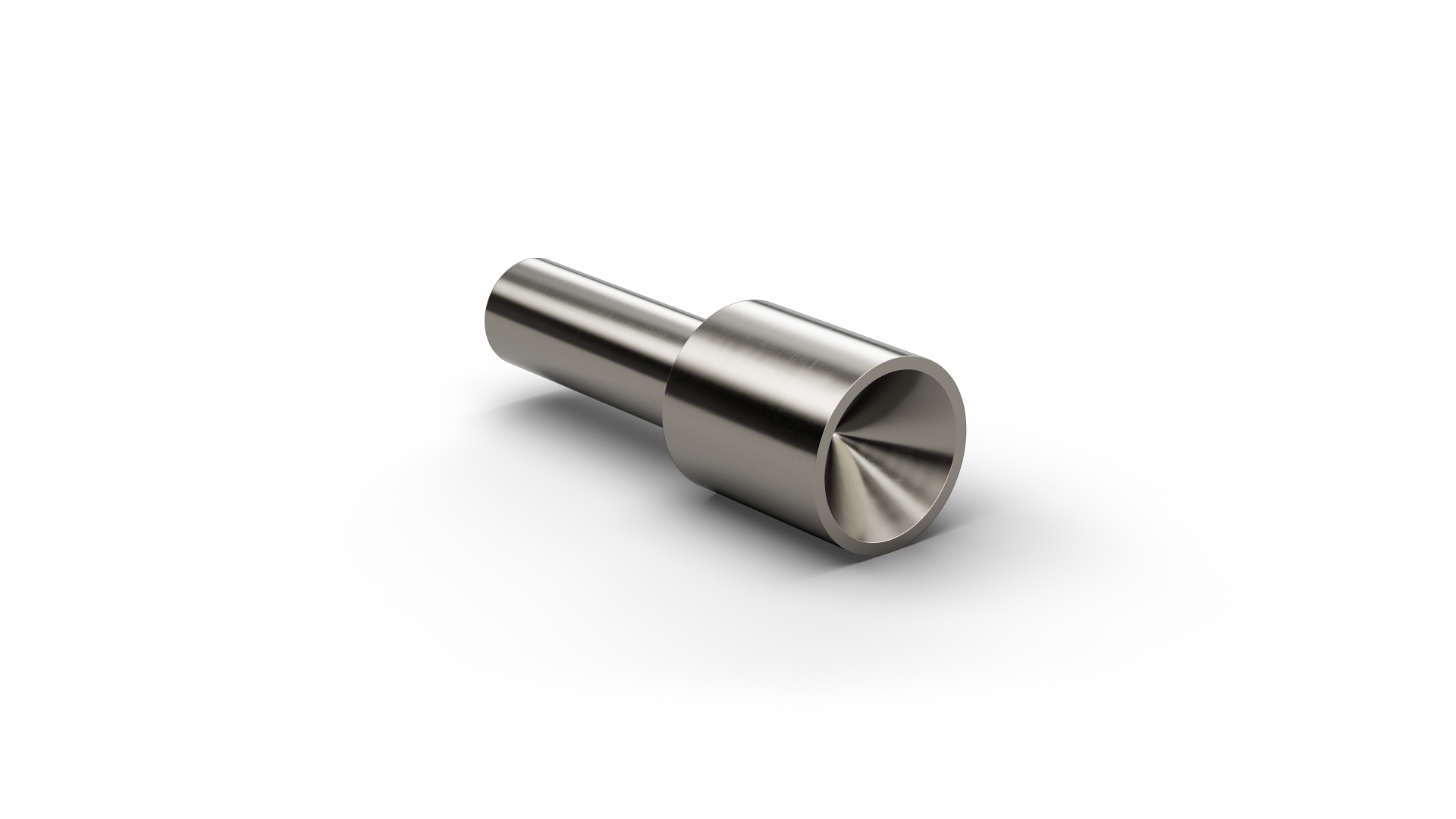

| Estilo de punta | 05 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Nickel |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Uncoated |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 50 |
| Fuerza del resorte (cN) | 130 |
| Recorrido nominal (mm) | 3.2 |
| Recorrido máximo (mm) | 4 |
| Precisión de punteo +/- (mm) | 0.1 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 12 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

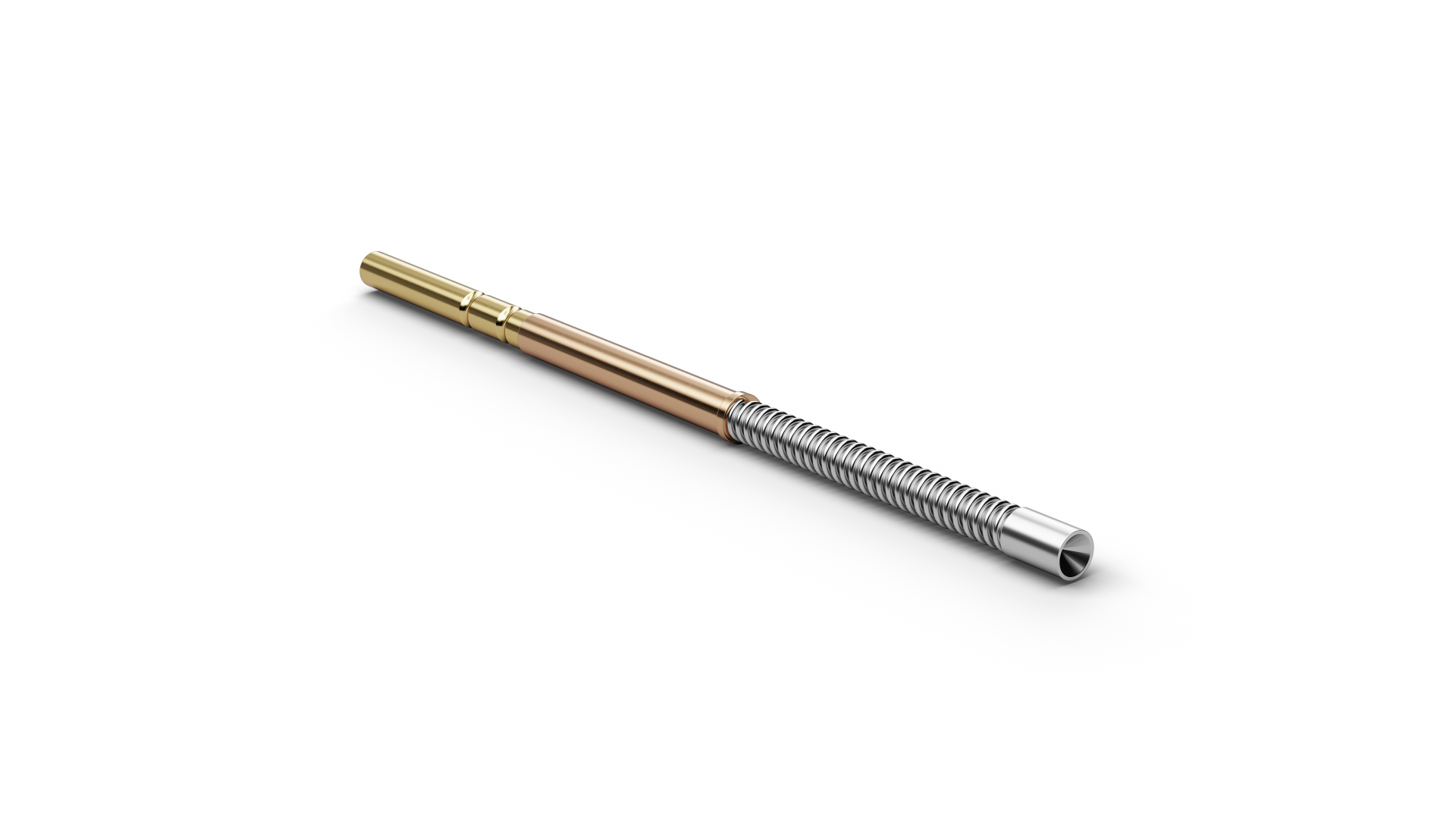

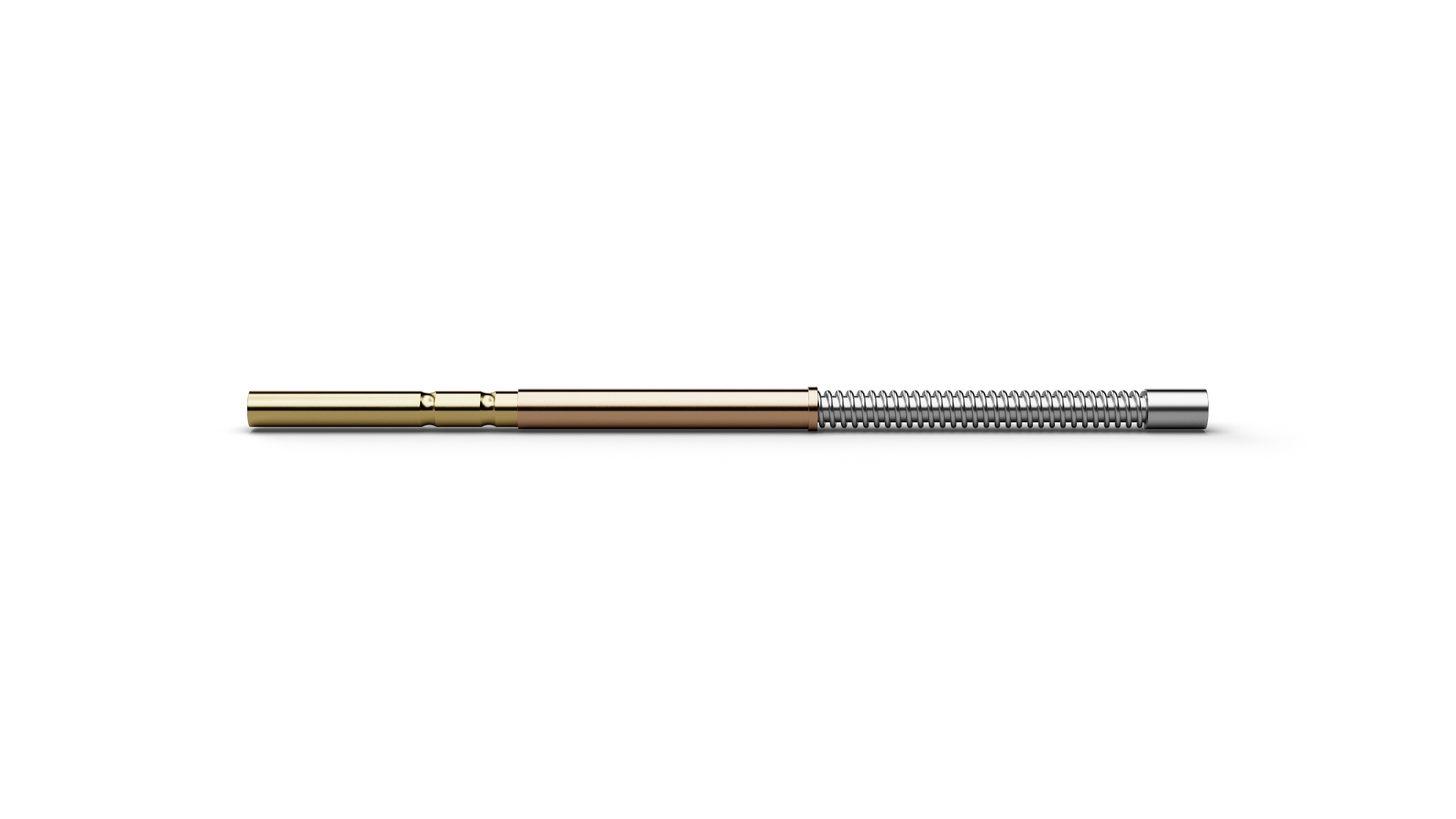

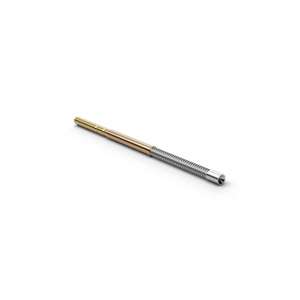

The High Current Probe HCF32005S135N130 (item number 1003497) is designed for safe transmission of high electrical currents in test and contacting applications. HCF32005S135N130 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF32005S135N130, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF32005S135N130 includes power-electronics testing. The electrical rating of HCF32005S135N130 combines 12 A continuous current with 20 mΩ typical contact resistance. HCF32005S135N130 operates with 130 cN spring force and 3.2 mm nominal travel.
