Home › Products › Product Finder › H100LA-10.0

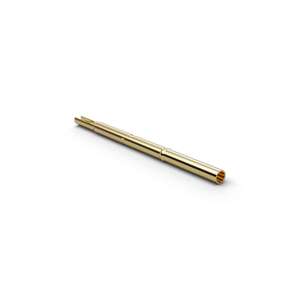

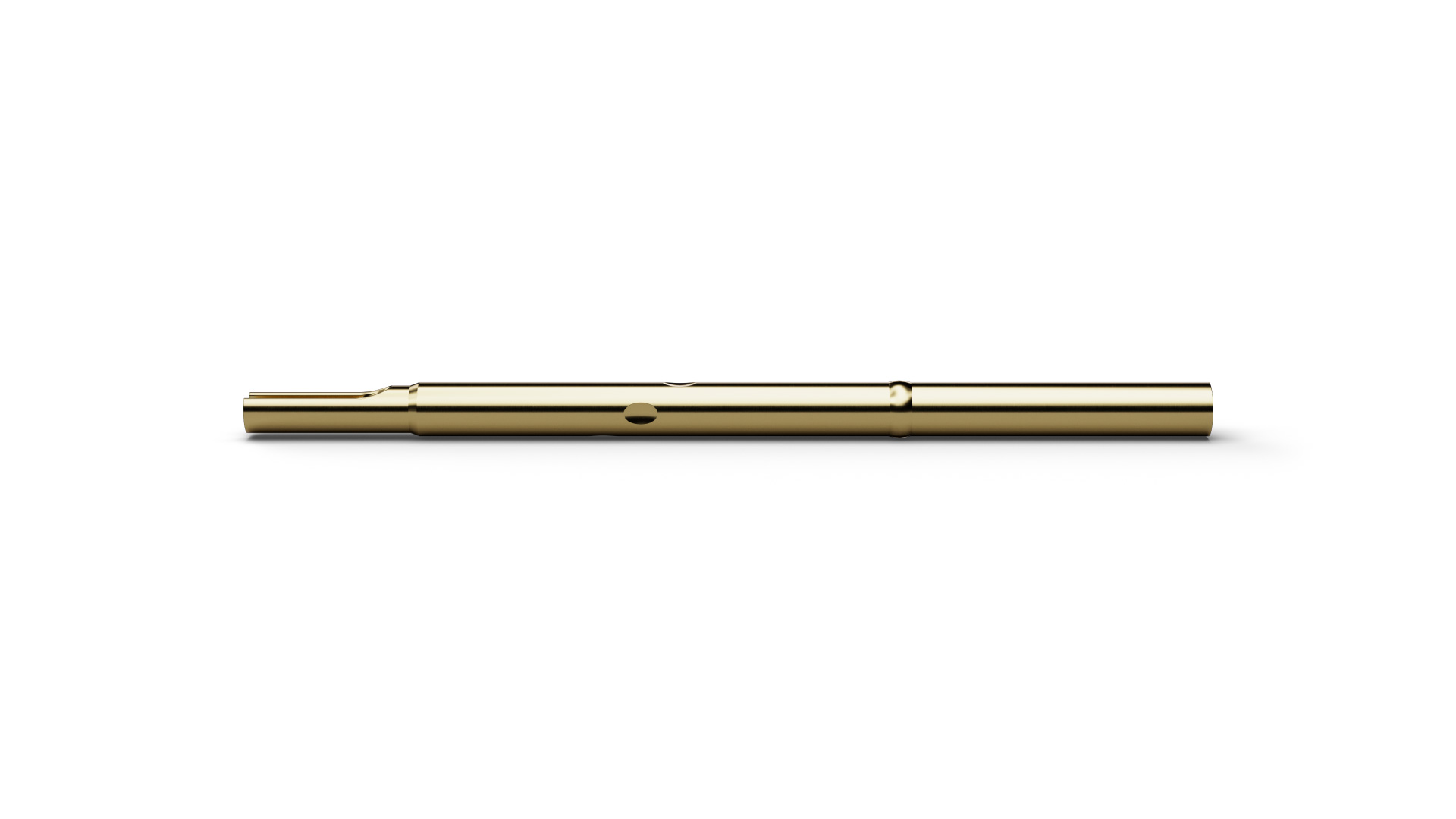

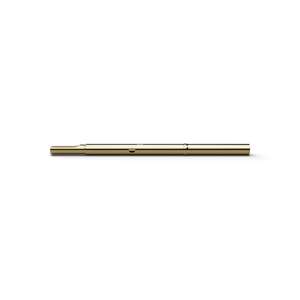

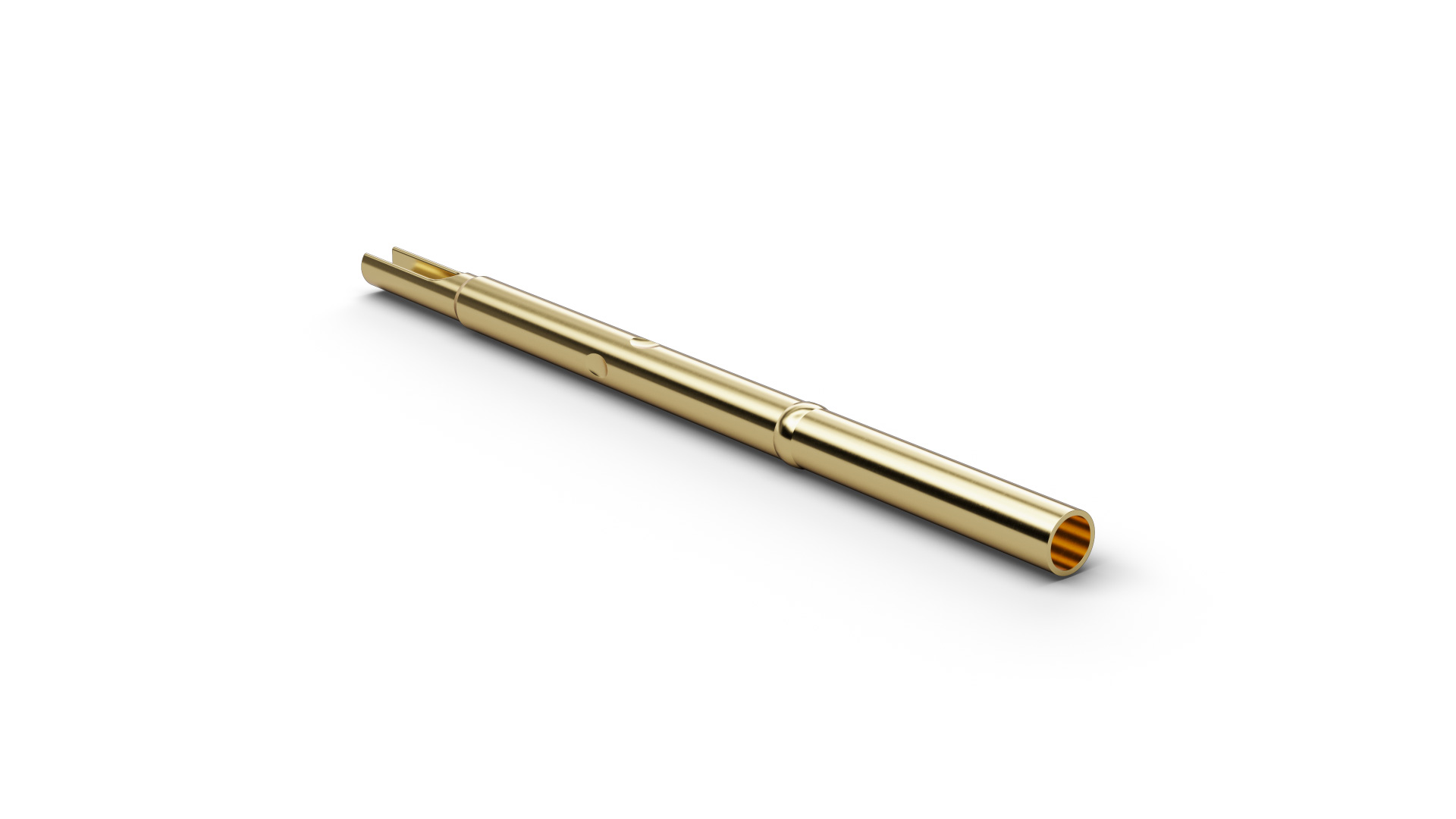

H100LA-10.0 Perspective 1 H100LA-10.0 Perspective 2

H100LA-10.0

Item number 1167138

Technical data sheet

Quantity

Technical data

General
Type/family H100
Pitch (mm/mil) 2,54 / 100
Additional definition Solder tight
Dimensions
Total length (mm) 30
Press ring diameter (mm) 1.81
Outer diameter (mm) 1.68
Collar height (mm) 0.7
Materials and surfaces
Material, Coating Nickel silver, Gold
Mechanical specifications
Connection Solder Connection
Electrical specifications
Continuous current (A) 5

Beschreibung des Produkts

The receptacle H100LA-10.0 (item number 1167138) guides and positions a compatible Contact Probe in a defined location within the fixture or contacting assembly. H100LA-10.0 uses a solder-tight construction for the specified installation concept. The electrical connection of H100LA-10.0 uses a solder connection. Key installation dimensions are outside diameter 1.68 mm, length 30 mm. The Receptacle H100LA-10.0 is designed for a pitch of 2.54 mm / 100 mil. The Receptacle H100LA-10.0 is made of nickel silver and is gold-plated.
