Home › Products › Product Finder › TS120PT100130K01

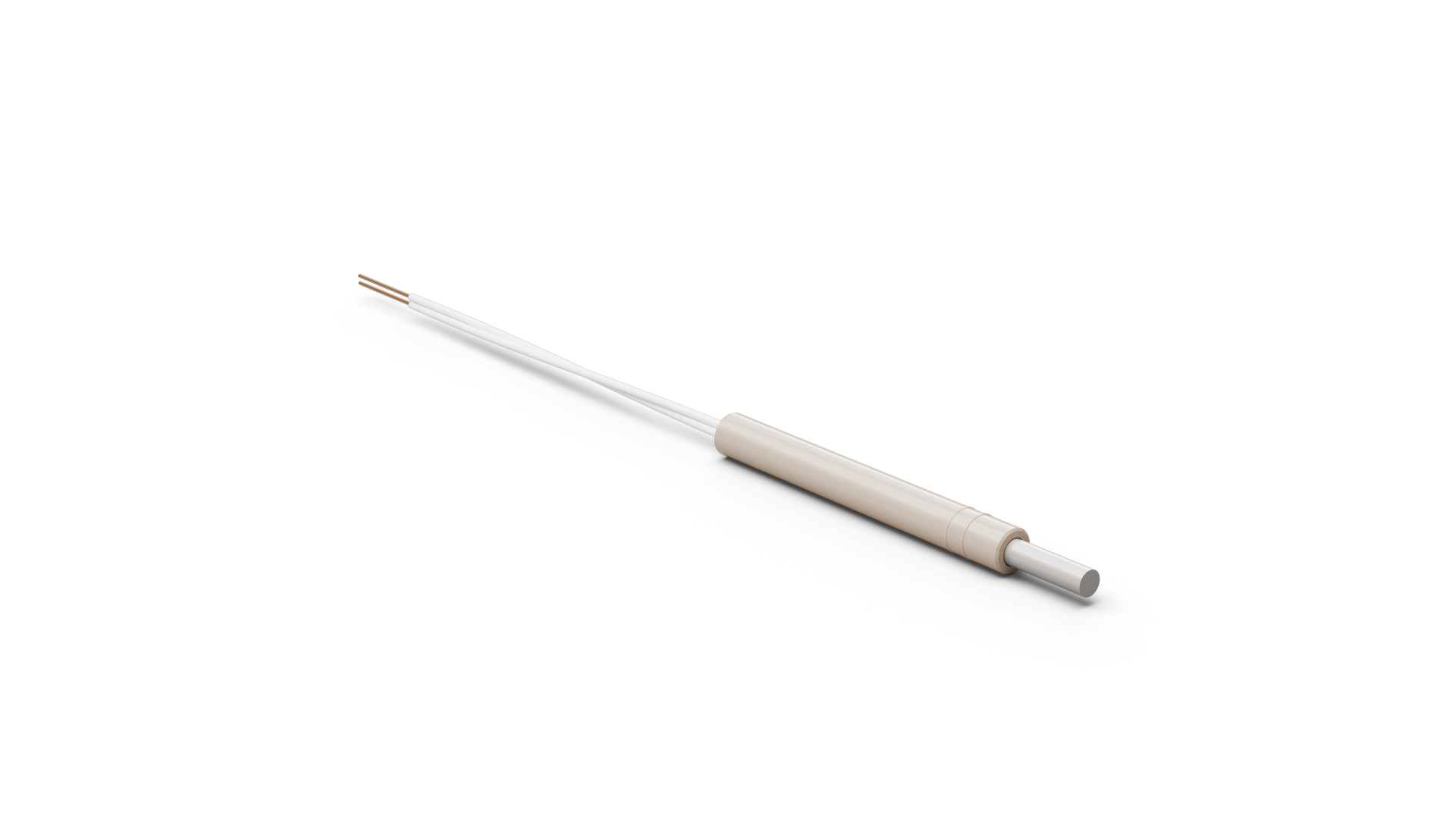

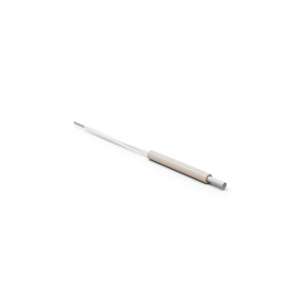

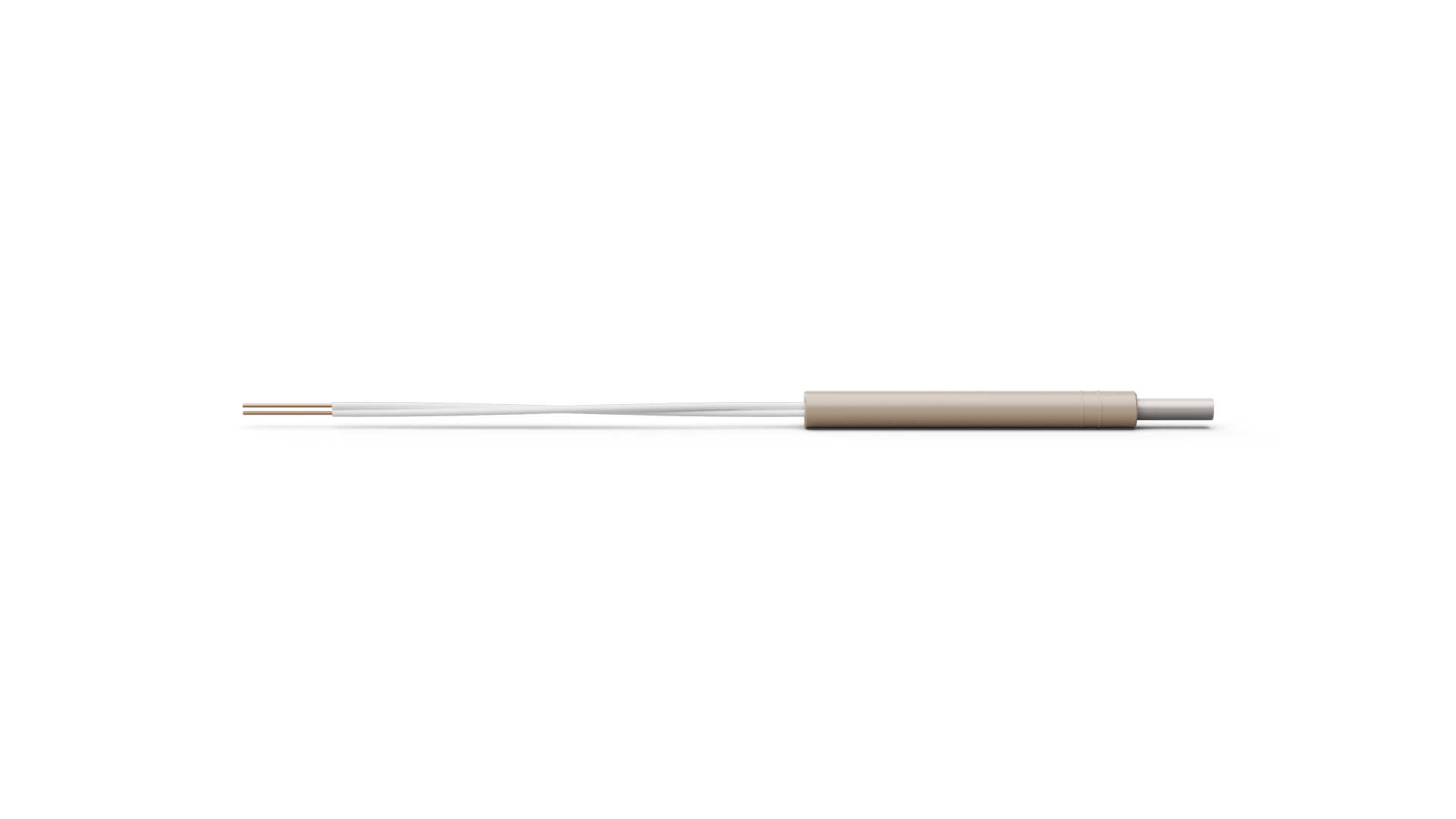

TS120PT100130K01 Perspective 1 TS120PT100130K01 Perspective 2

Temperature sensors (≤ 3 mm) TS120PT100130K01

Item number 1157815

Technical data sheet

Quantity

Technical data

General
Type/family TS120
Pitch (mm/mil) 2,54 / 100
Temperature -45°C...+200°C
Sensor type PT100 (KL. A)
Additional definition PT100
Dimensions
Total length (mm) 22.8
Tip style diameter (mm) 1.2
Materials and surfaces
Tip style 16
Plunger material Ceramic
Plunger plating Uncoated
Mechanical specifications
Spring force (cN) 130
Nominal travel (mm) 3.5
Maximum travel (mm) 4.3
Internal contact specifications
Maximum travel (mm) 2 4.3

Graphics

TS120PT100130K01 Family designation

Beschreibung des Produkts

The temperature sensor TS120PT100130K01 (item number 1157815) is designed for direct temperature measurement on components, contact points or critical test points. The spring-loaded design of TS120PT100130K01 provides defined mechanical contact with the measurement point and enables temperature changes to be captured directly at the test location. The specified sensor type is PT100 (class A). The specified temperature range for TS120PT100130K01 is -45 °C to +200 °C. TS120PT100130K01 operates with 130 cN spring force and 3.5 mm nominal travel. The total length of TS120PT100130K01 is 22.8 mm.
