Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | HCF566 |
| Pitch (mm/mil) | 4,50 / 177 |
| Temperature | -45°C...+200°C |

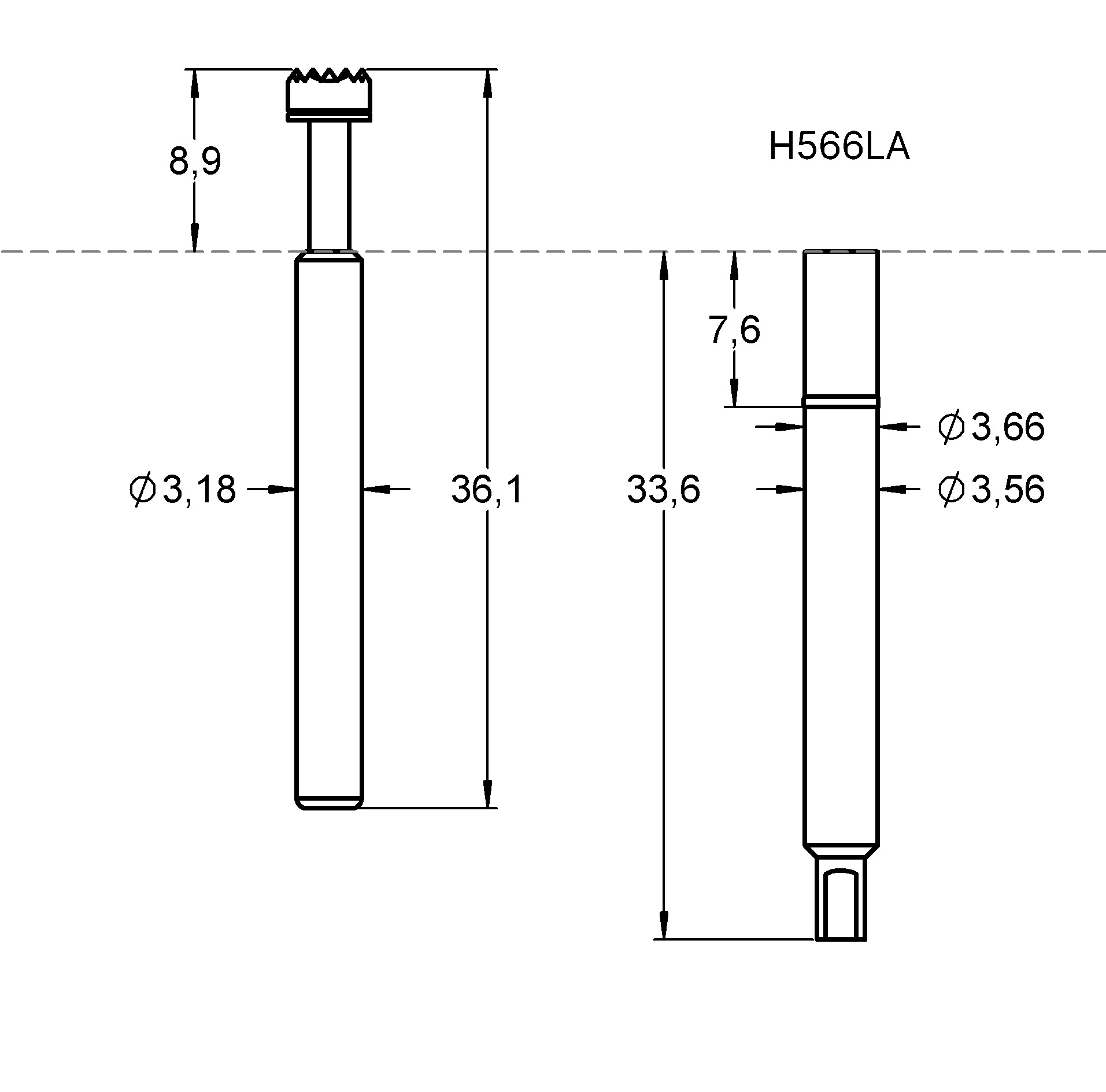

| Dimensions | |
|---|---|
| Total length (mm) | 36.1 |
| Protrusion height (mm) | 8.9 |
| Tip style diameter (mm) | 4 |
| Barrel diameter (mm) | 3.18 |
| Materials and surfaces | |
|---|---|
| Tip style | 12 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 300 |
| Spring force (cN) | 500 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 40 |
| Typical contact resistance (mOhm) | 15 |

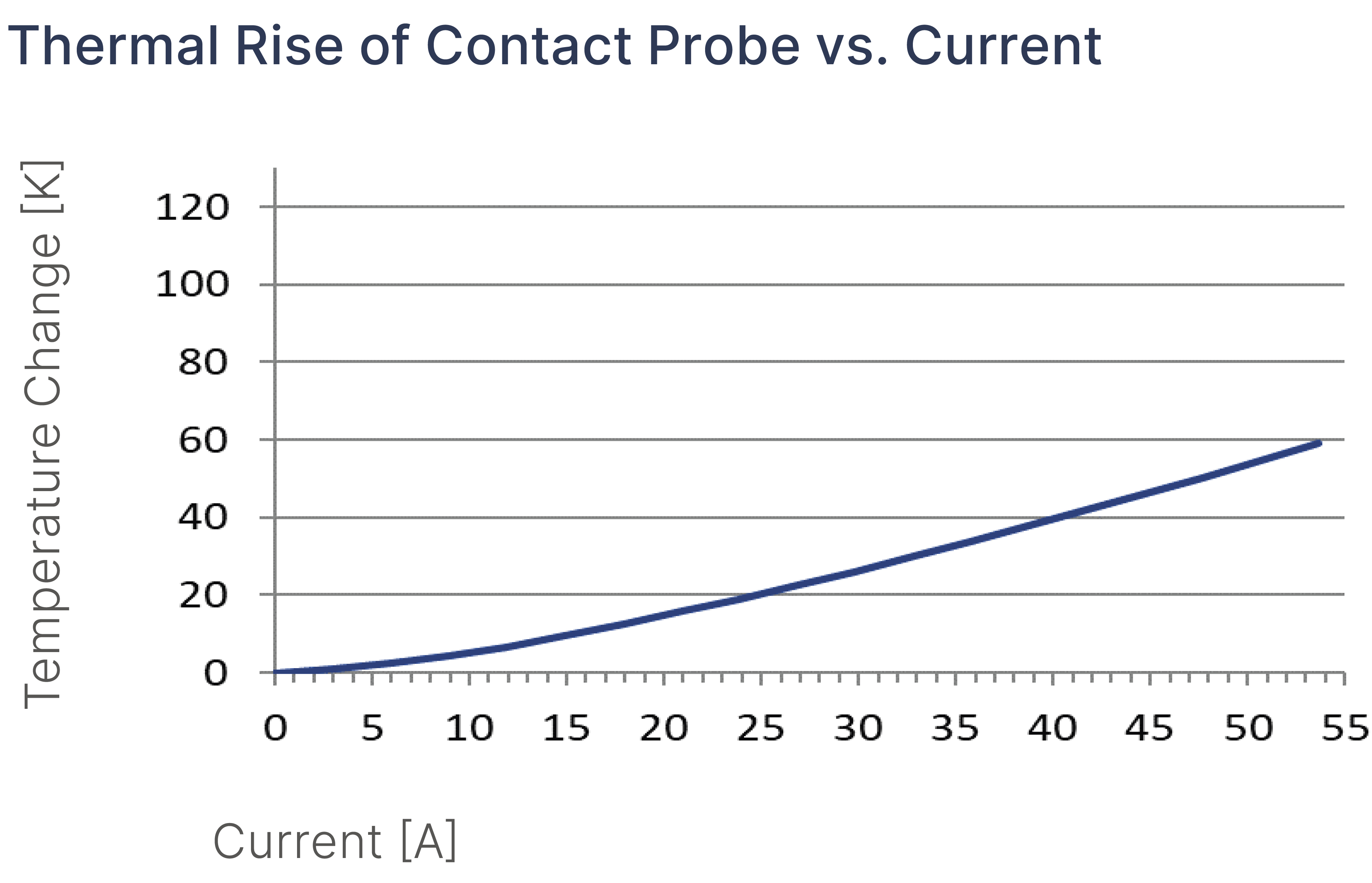

Graphics
Beschreibung des Produkts

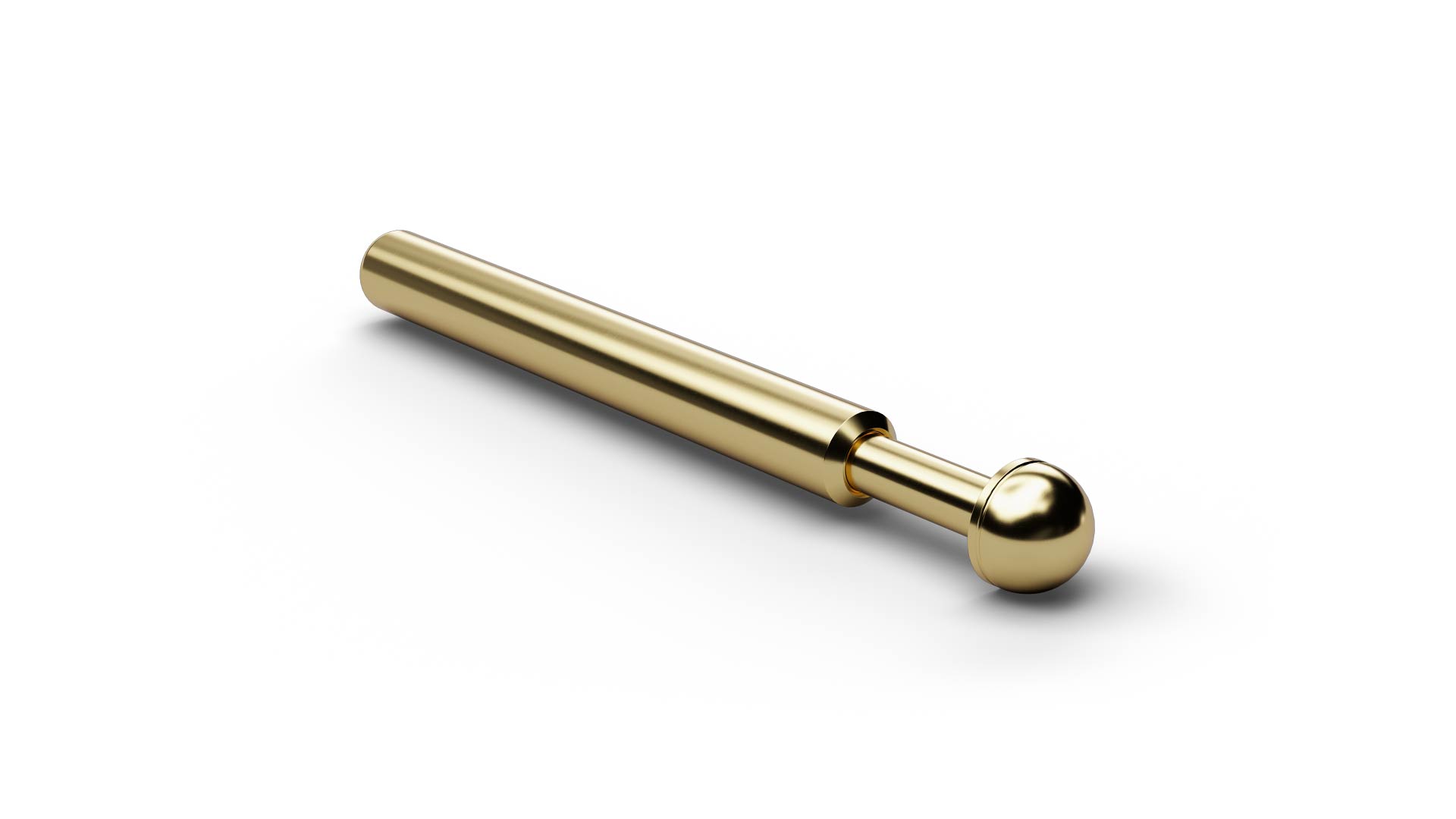

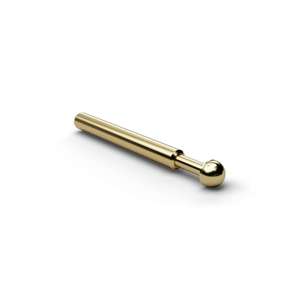

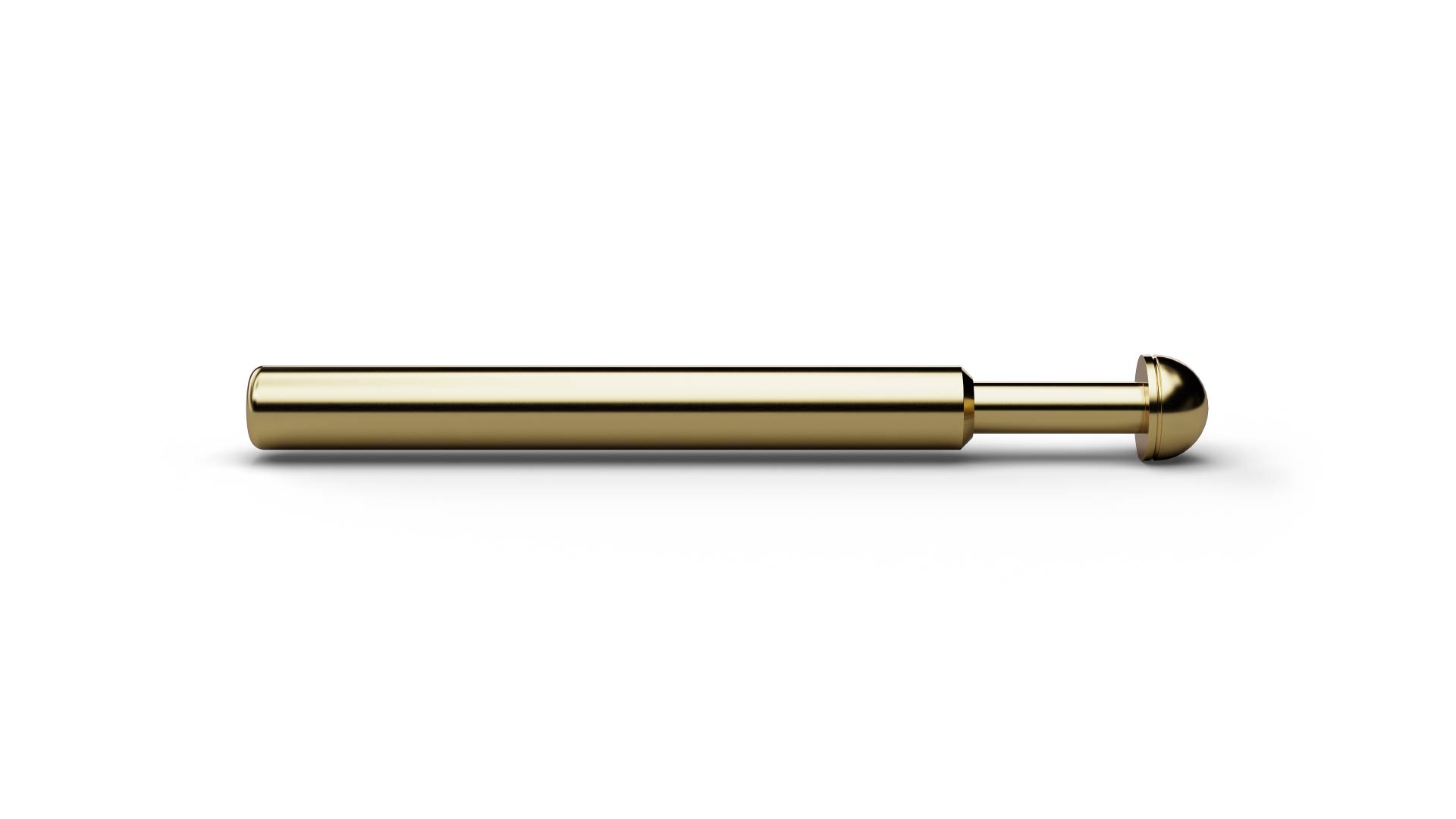

The High Current Probe HCF56612B400G500 (item number 1029497) is designed for safe transmission of high electrical currents in test and contacting applications. HCF56612B400G500 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF56612B400G500, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF56612B400G500 includes power-electronics testing. HCF56612B400G500 is rated for 40 A continuous current with a typical contact resistance of 15 mΩ. For HCF56612B400G500, spring force is 500 cN at a nominal travel of 4.3 mm.
