Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P-T / P265T-L150 |
| Pitch (mm/mil) | 4,00 / 157 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 15 |
| Protrusion height (mm) | 7.1 |
| Tip style diameter (mm) | 2.3 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3.2 |
| Press ring diameter (mm) | 3.2 |
| Materials and surfaces | |
|---|---|
| Tip style | 12 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 70 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 2.8 |
| Maximum travel (mm) | 3.5 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 100 |

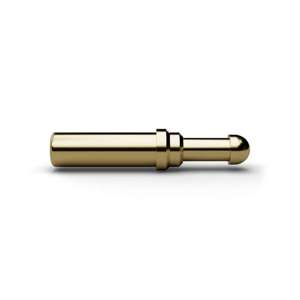

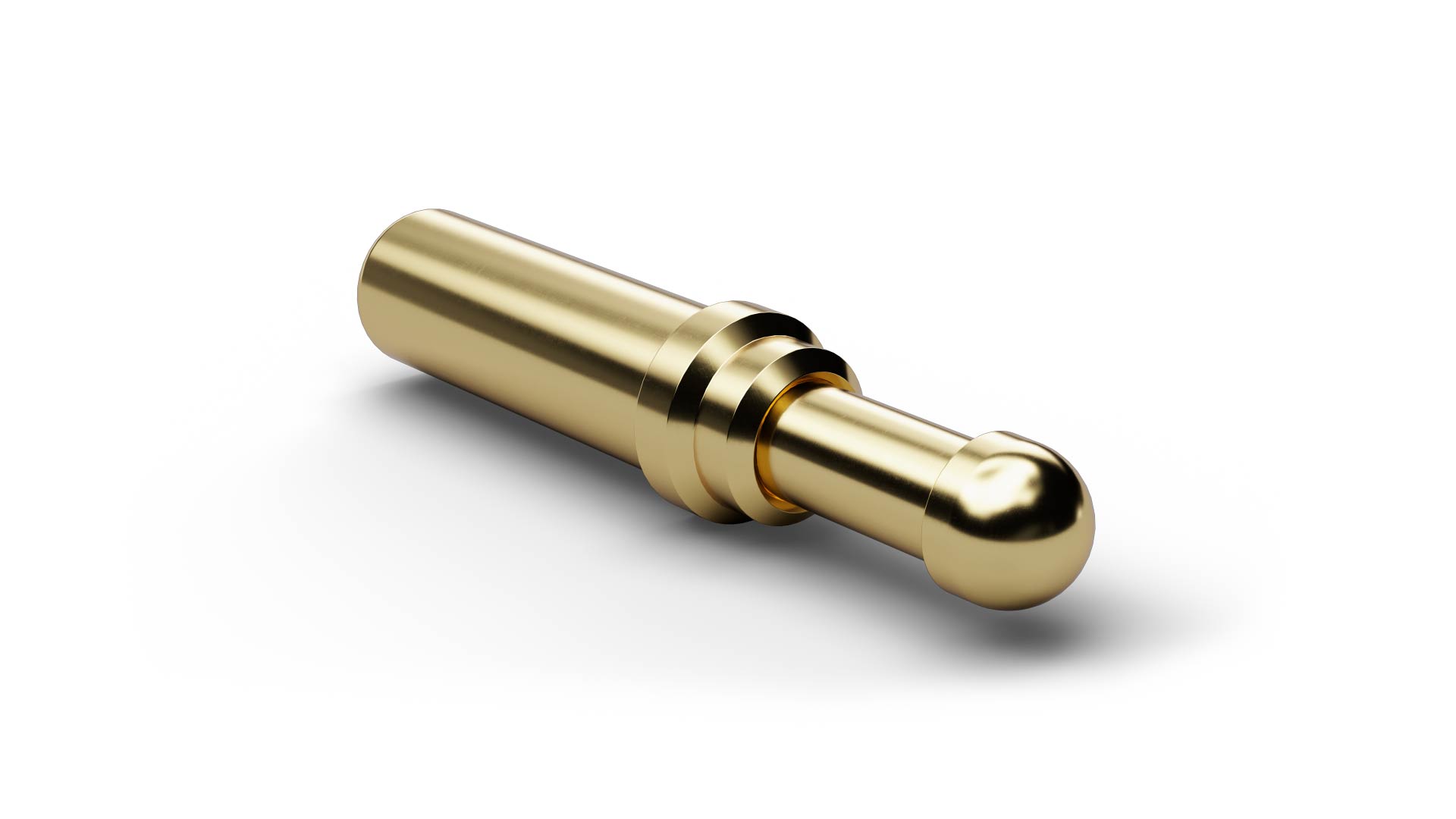

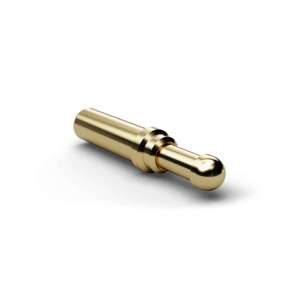

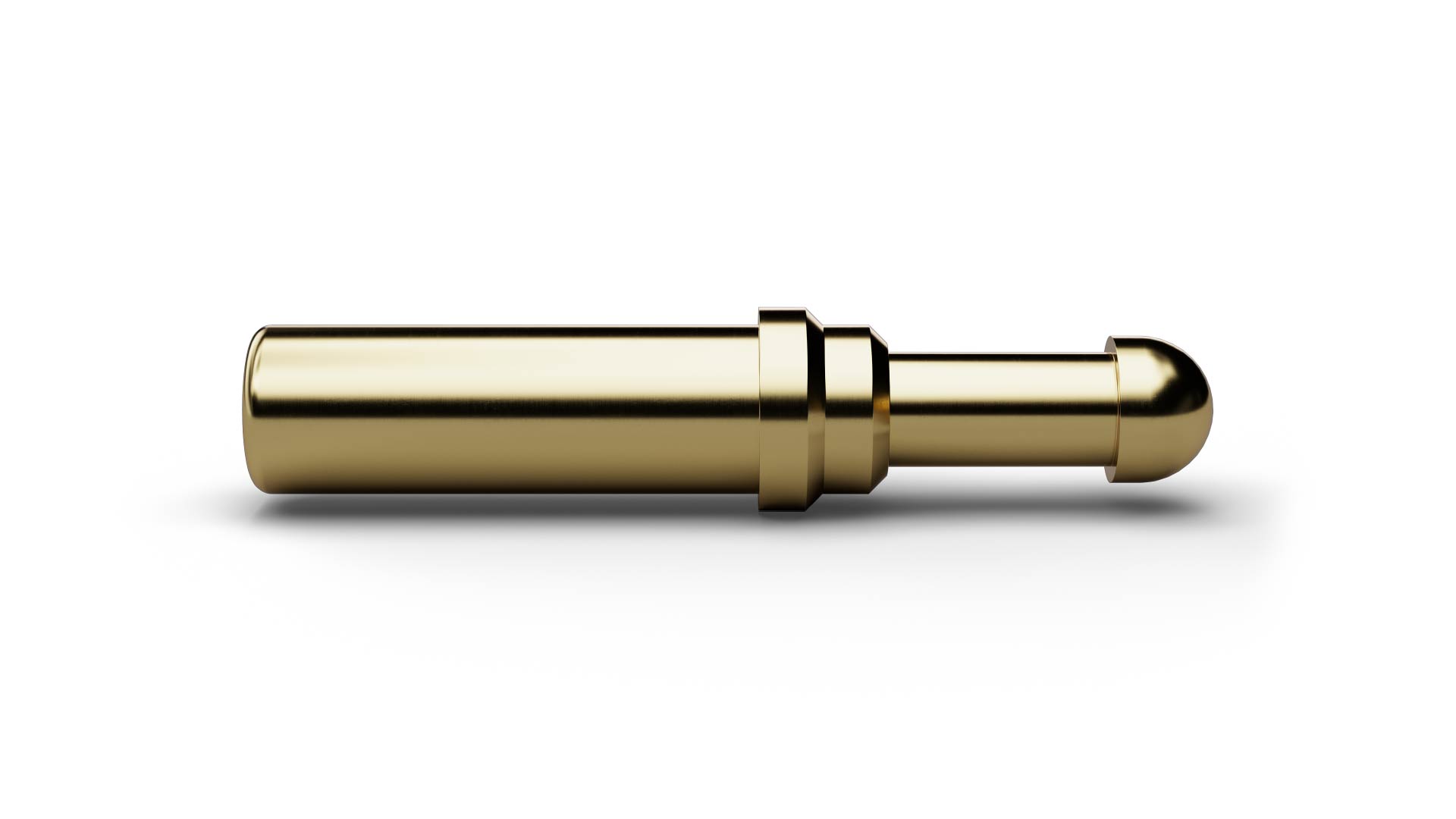

Graphics
Beschreibung des Produkts
For repeatable, easily detachable electrical interfaces, P26512B230G150TL150ST (item number 1018230) provides spring-loaded contacting. As a spring-loaded detachable interface, P26512B230G150TL150ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P26512B230G150TL150ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. P26512B230G150TL150ST combines a pitch of 4 mm / 157 mil with tip style 12 (Spherical stepped) and a tip diameter of 2.3 mm. P26512B230G150TL150ST operates with 150 cN spring force and 2.8 mm nominal travel. The continuous-current rating of P26512B230G150TL150ST is 10 A.
