Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F588 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Additional definition | S |
| Dimensions | |
|---|---|
| Total length (mm) | 37.3 |
| Protrusion height (mm) | 12.4 |
| Tip style diameter (mm) | 0.9 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 33 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 110 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 7.6 |
| Maximum travel (mm) | 10 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 30 |

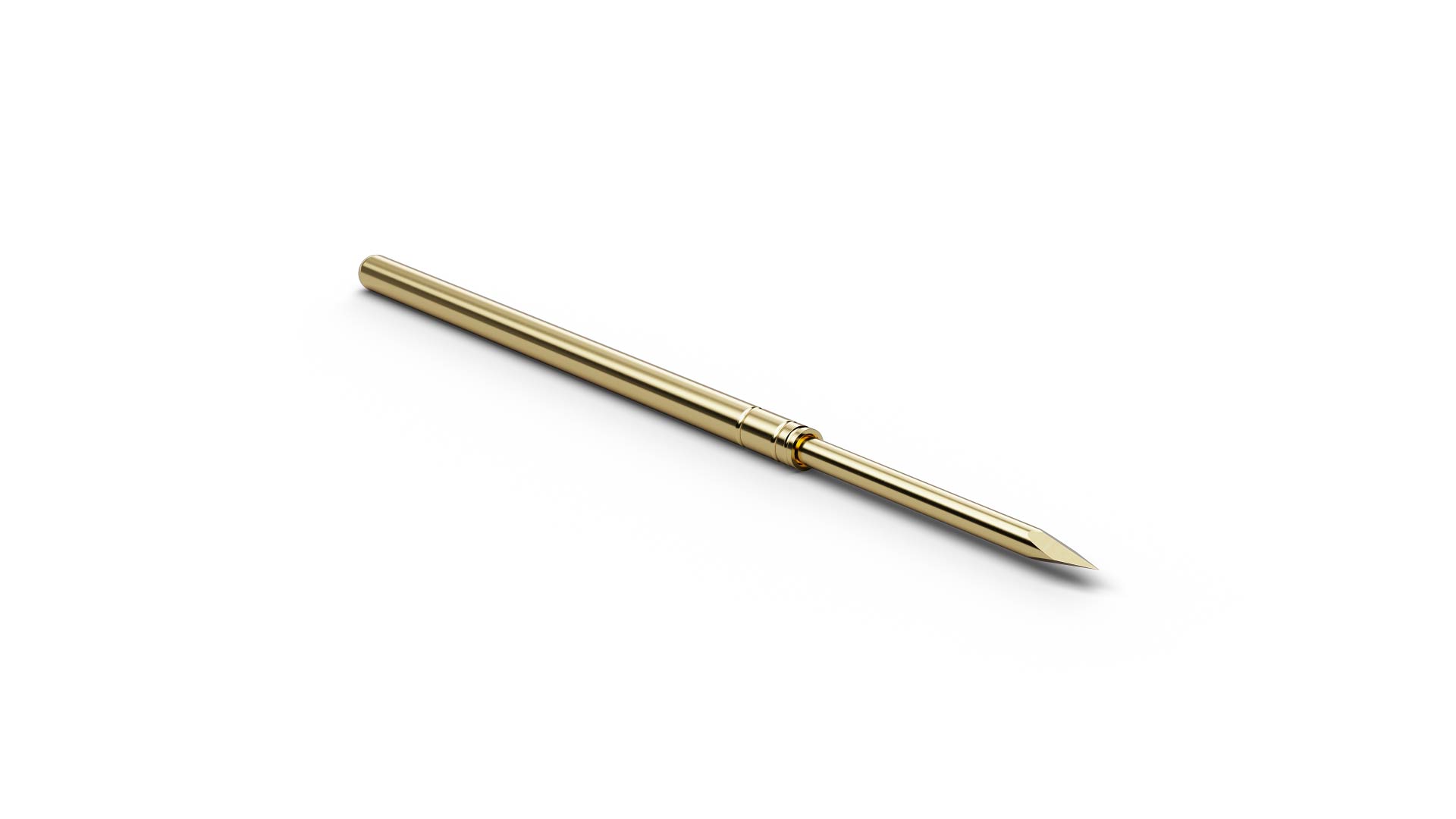

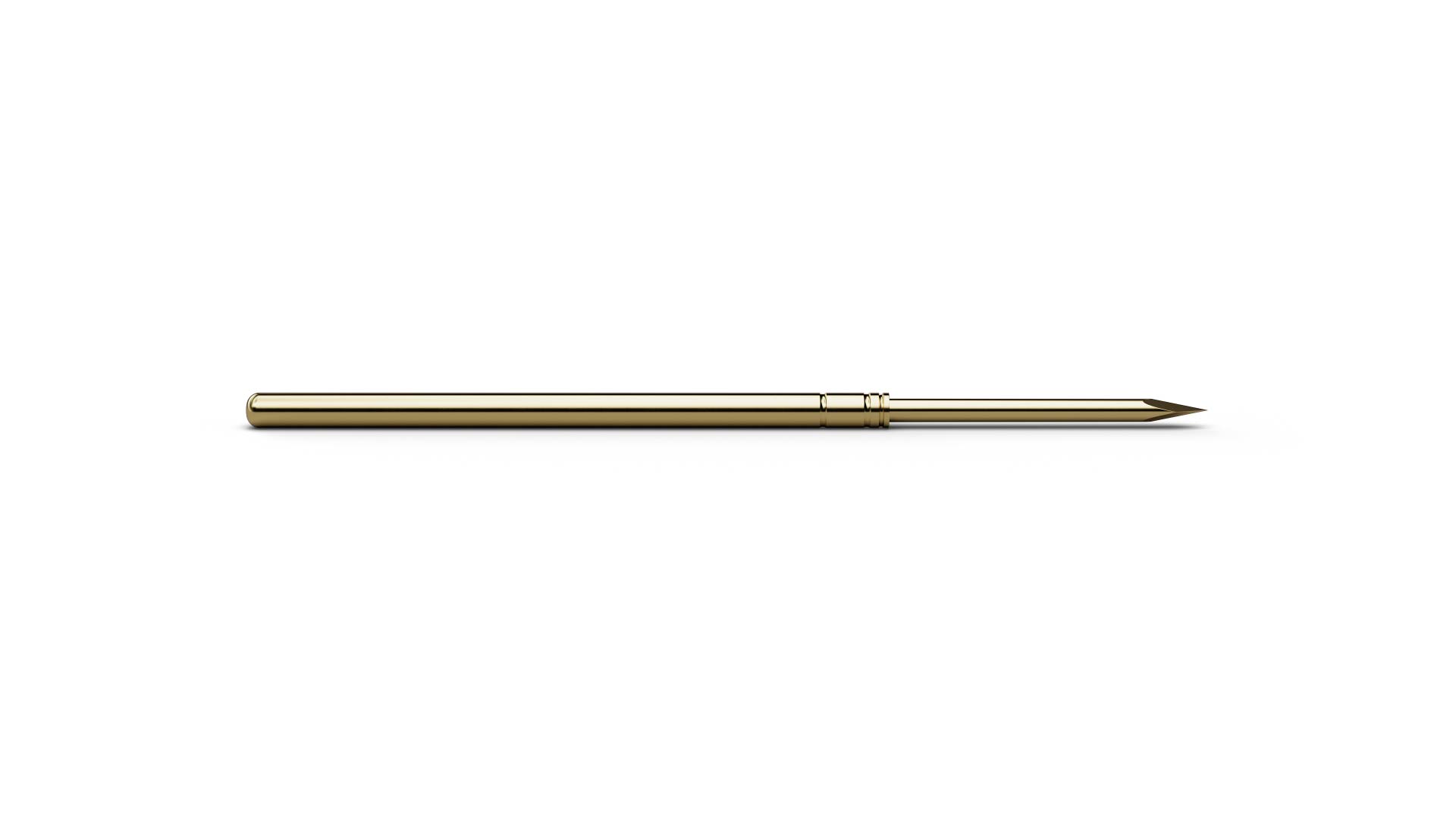

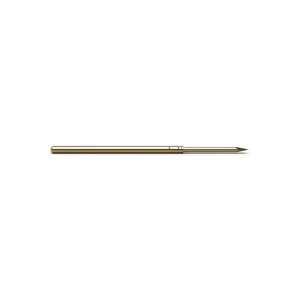

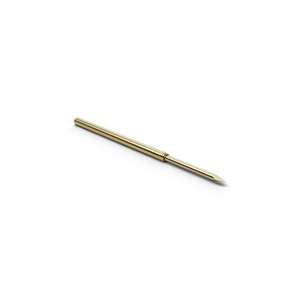

Graphics
Beschreibung des Produkts
As a Basic Contact Probe, F58833S090L300S (item number 1008891) establishes a spring-loaded electrical connection to the test point. With tip style 33 (Square lance 38°), F58833S090L300S combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F58833S090L300S combines a pitch of 2.54 mm / 100 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.9 mm. F58833S090L300S operates with 300 cN spring force and 7.6 mm nominal travel. The electrical rating of F58833S090L300S combines 5 A continuous current with 30 mΩ typical contact resistance. The plunger in F58833S090L300S is made of steel and uses Longtime Gold plating.
