Technical data
| General | |
|---|---|
| Type/family | F883-NC |
| Pitch (mm/mil) | 3,50 / 138 |
| Temperature | -45°C...+100°C |
| Additional definition | SM |
| Dimensions | |
|---|---|
| Total length (mm) | 44.8 |
| Protrusion height (mm) | 10 |
| Tip style diameter (mm) | 2.3 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3.2 |
| Press ring diameter (mm) | 3.2 |
| Materials and surfaces | |
|---|---|
| Tip style | 17 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 40 |
| Spring force (cN) | 230 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.09 |
| Thread | M2,5 |
| Tool size (mm) | 2,6 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 50 |
| Switch type | NC (Normal Close) |
| Switch travel (mm) | 1.7 |
| Continuous current (A) 2 | 1 |
Graphics
Beschreibung des Produkts

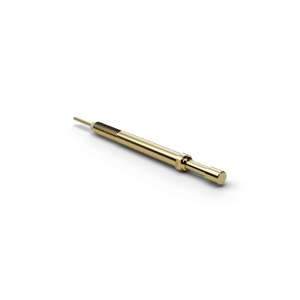

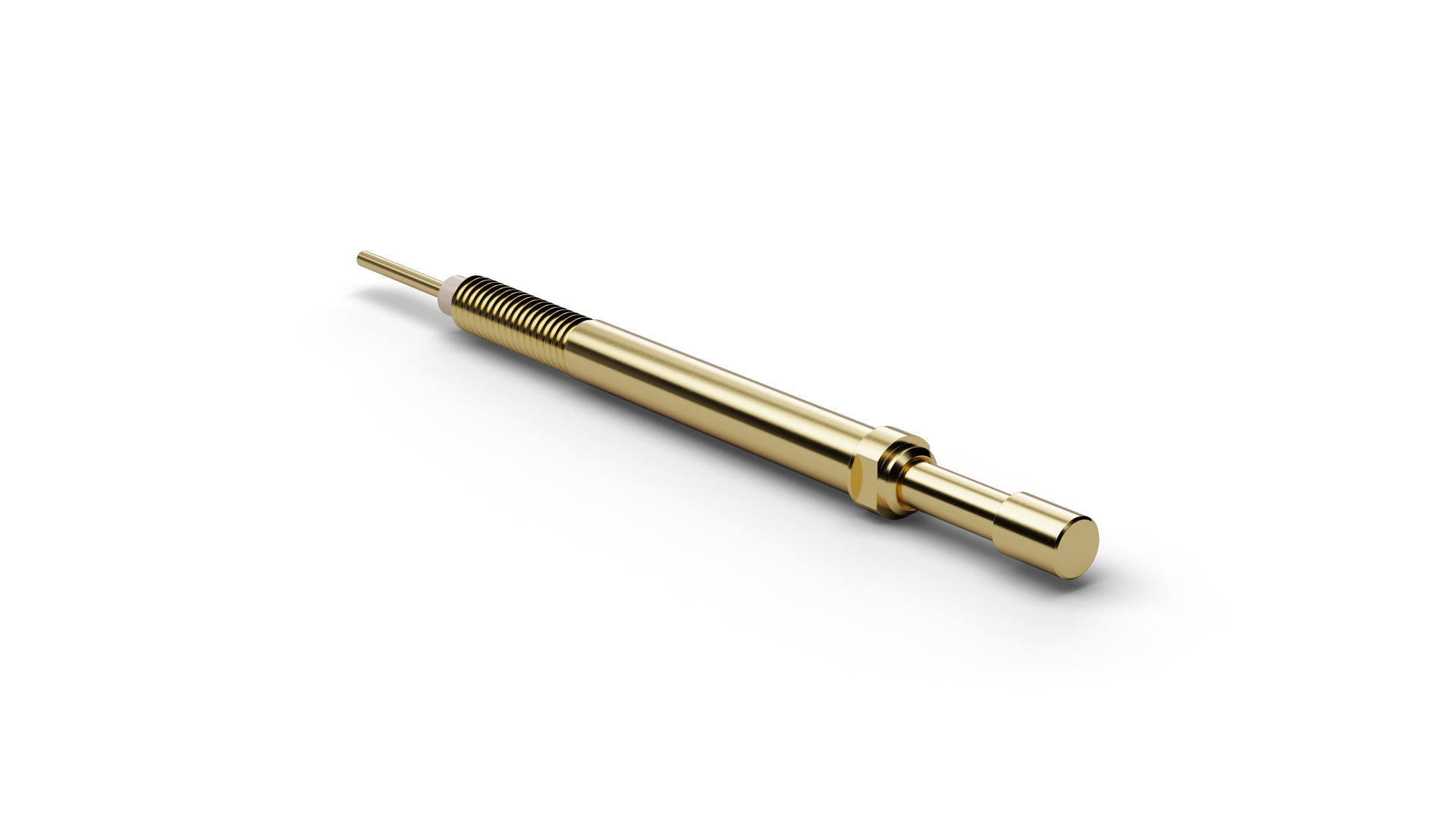

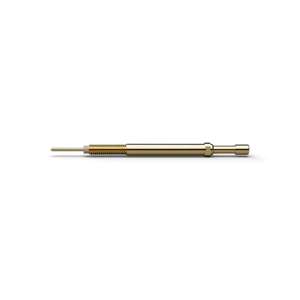

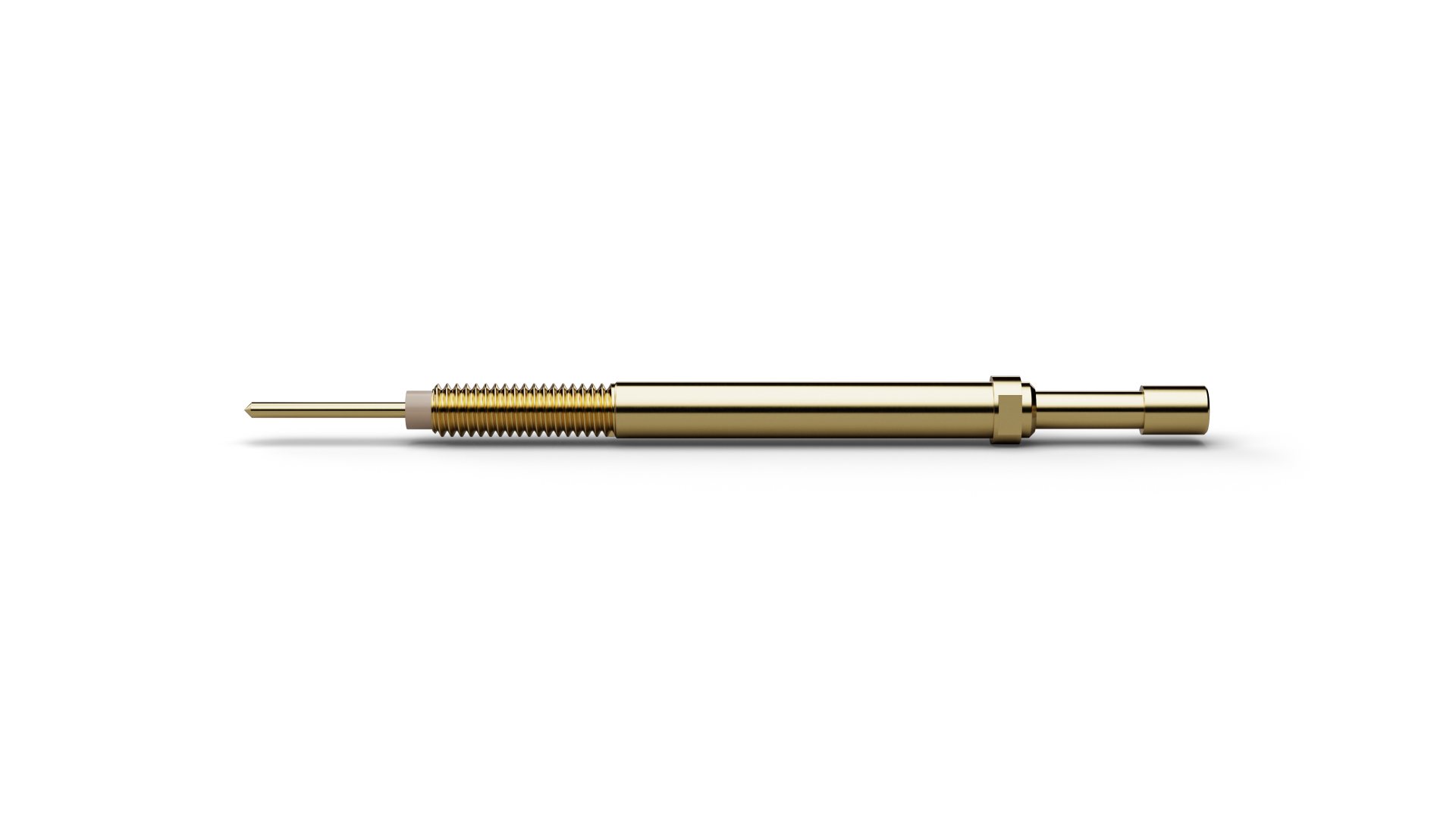

The Normally Closed Switch Probe F88317B230G230SM (item number 1006966) combines spring-loaded contacting with a defined switching or sensing function. F88317B230G230SM combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F88317B230G230SM, the normally closed function opens an initially closed contact at the defined actuation travel, allowing the test system to detect a mechanical state electrically. F88317B230G230SM operates with 230 cN spring force and 4 mm nominal travel. The electrical rating of F88317B230G230SM combines 10 A continuous current with 50 mΩ typical contact resistance. F88317B230G230SM combines a pitch of 3.5 mm / 138 mil with tip style 17 (Flat stepped) and a tip diameter of 2.3 mm.
