Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F875-NO |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 50.6 |
| Protrusion height (mm) | 10.2 |
| Tip style diameter (mm) | 1 |
| Barrel diameter (mm) | 1.65 |
| Collar diameter (mm) | 2.3 |
| Press ring diameter (mm) | 2.3 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 50 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M1,6 |
| Tool size (mm) | 1,7 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 65 |
| Switch travel (mm) | 1.5 |
| Continuous current (A) 2 | 1 |
Graphics
Beschreibung des Produkts

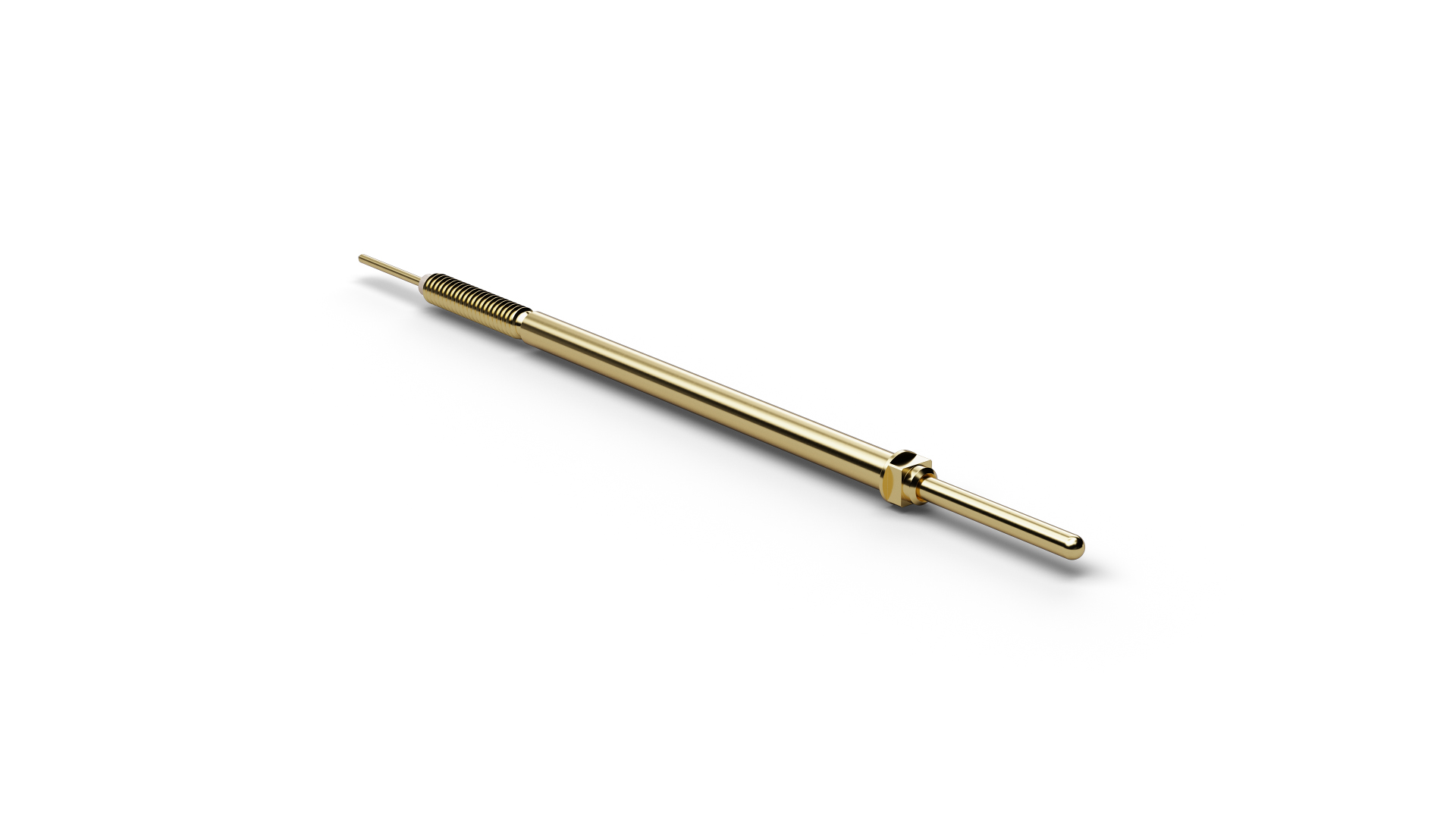

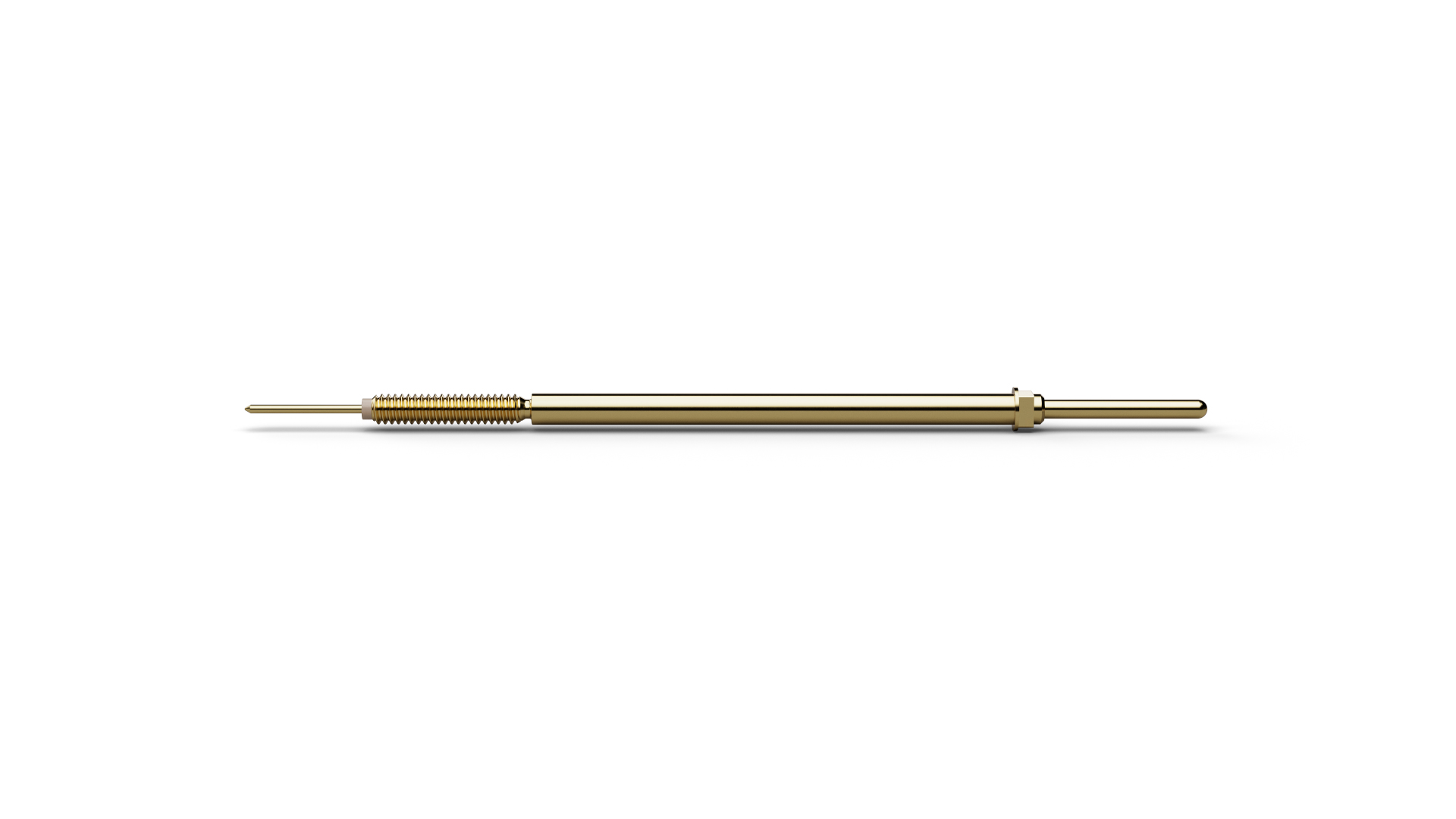

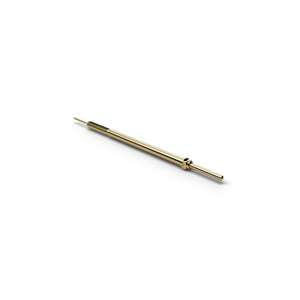

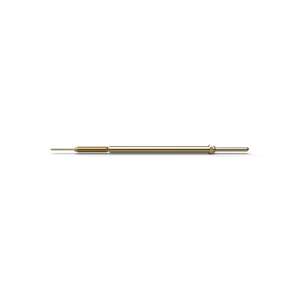

The Normally Open Switch Probe F87511B100G300 (item number 1001721) combines spring-loaded contacting with a defined switching or sensing function. F87511B100G300 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F87511B100G300, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. F87511B100G300 operates with 300 cN spring force and 4 mm nominal travel. The electrical rating of F87511B100G300 combines 5 A continuous current with 65 mΩ typical contact resistance. F87511B100G300 combines a pitch of 2.54 mm / 100 mil with tip style 11 (Spherical) and a tip diameter of 1 mm.
