Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F562 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 24.7 |
| Protrusion height (mm) | 6.2 |
| Tip style diameter (mm) | 0.76 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 18 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 2.7 |
| Maximum travel (mm) | 4.1 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 20 |

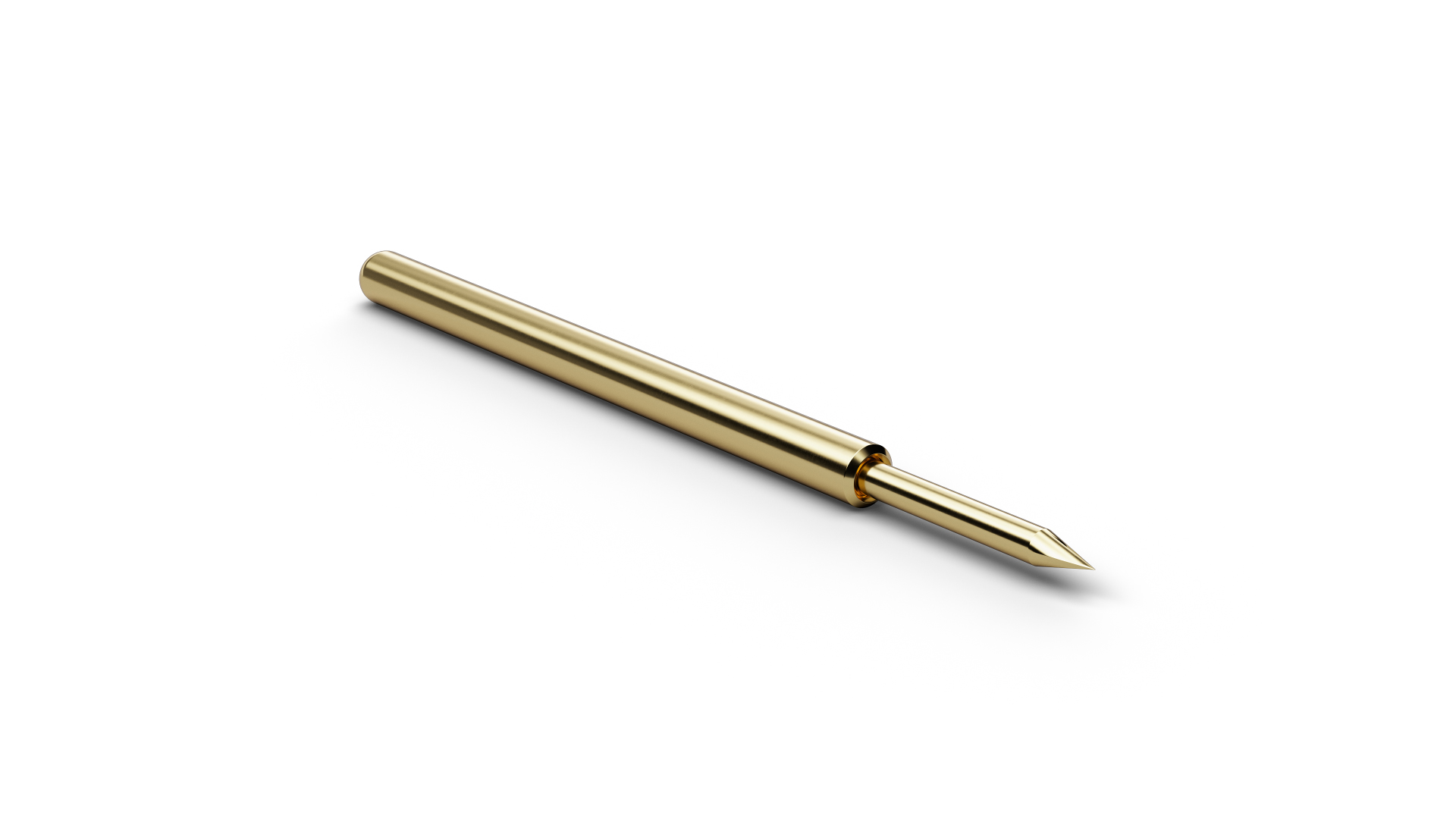

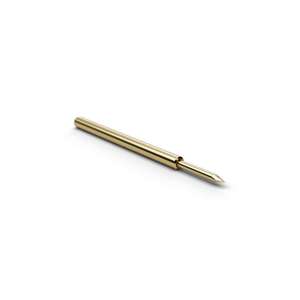

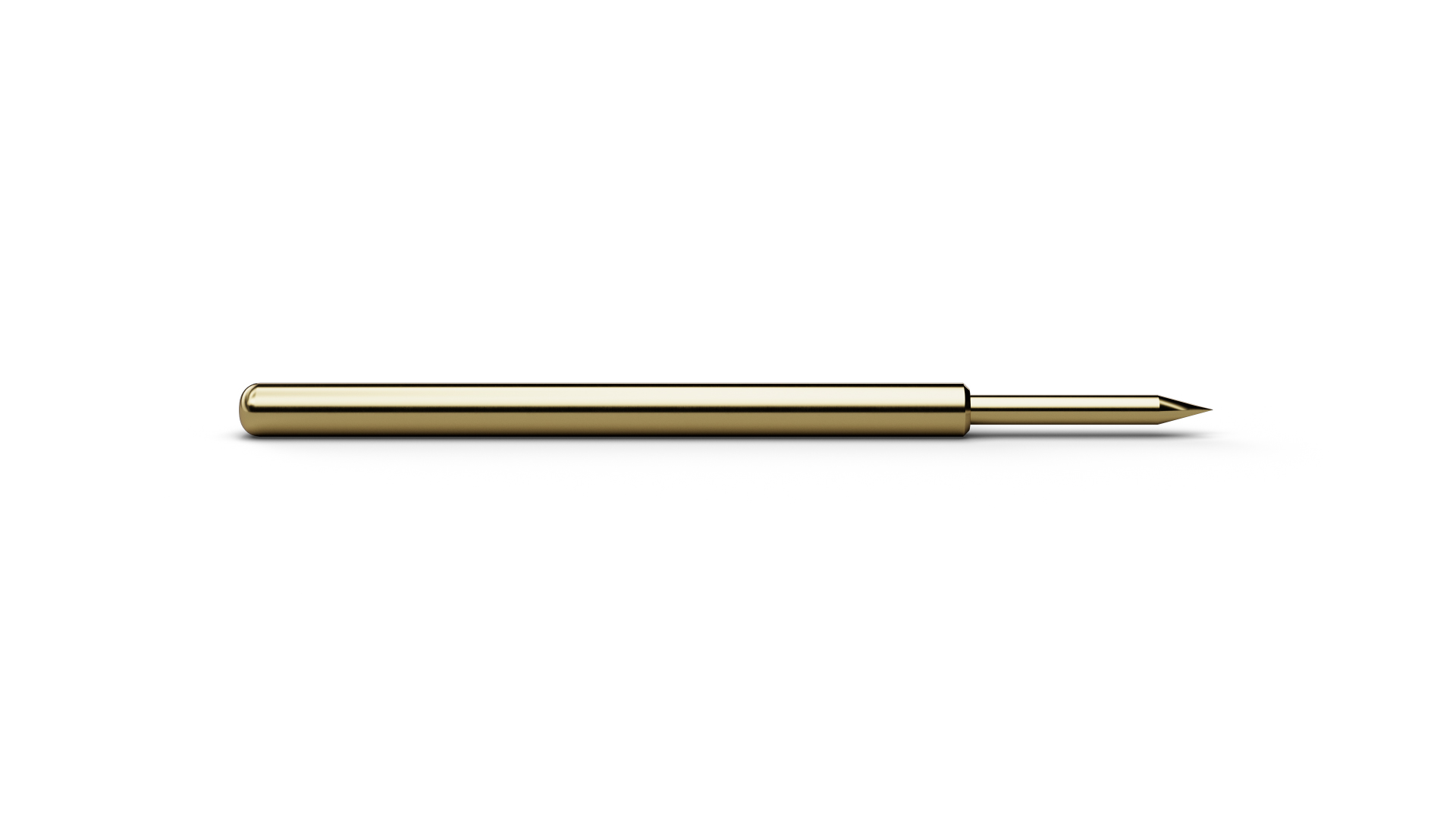

Graphics
Beschreibung des Produkts
As a Basic Contact Probe, F56218B076G150 (item number 1001325) establishes a spring-loaded electrical connection to the test point. With tip style 18 (Conical 30°), F56218B076G150 combines ICT/FCT use with a geometry intended for solder pads and vias. F56218B076G150 combines a pitch of 2.54 mm / 100 mil with tip style 18 (Conical 30°) and a tip diameter of 0.76 mm. For F56218B076G150, spring force is 150 cN at a nominal travel of 2.7 mm. F56218B076G150 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F56218B076G150 is made of beryllium copper and is gold-plated.
